Description
Built upon decades of rich heritage, designed with timeless style, and engineered for utmost performance, Marantz CINEMA Series are the foundation of the world’s most demanding home theaters.

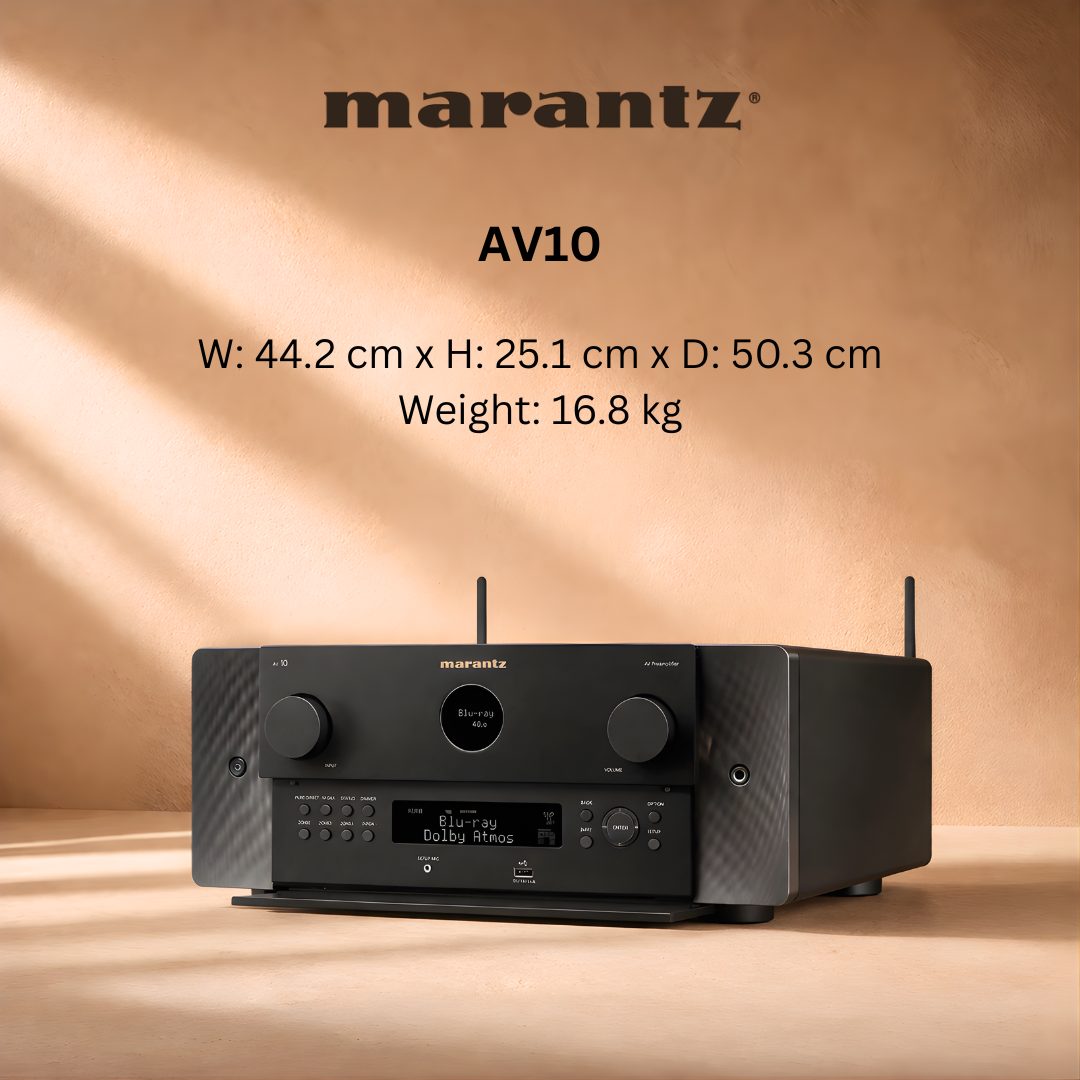

A modern expression of timeless design principles, AV 10 features the iconic Marantz porthole, premium materials, and subtle sidelights that illuminate the front panel.Immersive spaciousness, warm and rich tone, extraordinary detail and lifelike dynamics are legendary hallmarks of Marantz sound.
AV 10 represents the highest measure of performance and capability for reference-level home theater systems. Marantz Sound Masters meticulously tuned AV 10 for amazing performance with careful parts selection to create the most memorable home theater experiences possible.
Crafted in Shirakawa, Japan 15.4 Channels 7 HDMI Inputs plus eARC 8K and Dolby Atmos 3D Audio HEOS Built-in Multichannel Surround
DTS HD Master / DTS:X / DTS:X Pro Yes / Yes / Yes DTS Neo:X / DTS Neural:X No / Yes (15ch) DTS Virtual:X Yes IMAX Enhanced Yes Dolby TrueHD / Dolby Atmos / Dolby Atmos Height Virtualization / Dolby Atmos Music Yes / Yes / Yes / Yes Dolby ProLogic Ilz / Dolby Surround No / Yes Auro 3D Yes 360 Reality Audio / MPEG H Yes / Yes Multichannel Stereo Yes Max Number of Processing (Preamp) Channels 15.4 Sound Enhancements
Copper Plated Chassis Yes Power Transformer: Toroidal / EI Yes / No Current Feedback Topology Yes Hyper Dynamic Amplifier Modules (HDAM) Yes Pure Direct Yes Gold plated RCA terminals Yes Clock Jitter Reducer Yes Audyssey MultEQ XT32 Audyssey Dynamic EQ / Dynamic Volume Yes / Yes Audyssey LFC Yes Dirac Live upgradability Yes Compressed Audio Enhancer: MDAX2 Yes Network
HEOS Multi-room and Streaming Yes Bluetooth Re-transmit for Bluetooth headphones Yes Alexa / Google Voice Assistant / Apple HomePod Yes / Yes / Yes Network Audio Sharing Yes Lossy formats: MP3 / WMA / AAC Yes / Yes / Yes Lossless formats: FLAC / ALAC / WAV Yes / Yes / Yes Lossless formats: FLAC HD 192/24 / WAV 192/24 / ALAC 192/24 Yes / Yes / Yes DSD Audio Streaming Yes (2.8/5.6MHz) FLAC HD 192/24 Yes WAV 192/24 Yes ALAC 192/24 Yes Gapless Playback Yes (FLAC, WAV ,ALAC ,DSD) AirPlay Audio Streaming Yes (AirPlay2) Internet radio Yes (TuneIn) Spotify* Yes (connect) Pandora No SiriusXM Yes Other Streaming Services * Amazon Music HD/ Roon Tested Yes Compatible with Remote APP for Smart Phones Marantz AVR Remote Compatible with Remote APP for Tablets Android / iOS / Amazon Kindle Ethernet Ports Yes Wi-Fi Yes Bluetooth Yes HDMI
HDMI Inputs: Back / Front 7 / No HDCP2.3 support Yes HDMI Outputs: Main / Zone 2 / 1 HDMI to HDMI Scaling 1080P/4K to 8K GUI Overlay on HDMI Yes HDMI 2.1: 8K/60Hz AB / 4K/120Hz AB Yes / Yes 8K/60Hz AB / 4K/120Hz AB Pass-through In/Out 7 / 2 (up to 40Gbps) HDMI 2.0: 3D / 4K / CEC / ARC Yes / Yes / Yes / Yes Enhanced ARC Yes HDR / HLG / Dolby Vision / HDR10+ / Dynamic HDR Yes / Yes / Yes / Yes / Yes ALLM (Auto Low Latency Mode) Pass-through for gaming Yes Variable Refresh Rate / Quick Frame Transport Yes / Yes 3D Signal Pass-Through Yes 8K signal pass-through / scaling / GUI overlay Yes / Yes / Yes 4K Signal Pass-Through / Scaling / GUI Overlay Yes / Yes / Yes HDMI pass-though in standby mode Yes Picture Adjust / Noise Reduction No / No CEC Yes DSD Audio Capability Yes Audio Return Channel Yes Auto LipSync Yes Multi-Room CI
HEOS Multi-Room Integrated Yes HEOS Link Compatibility: IR/ IP Yes / Yes Multi-Room Zones 3 Zone Audio Source: HDMI / Opt, Coax / Network, USB / Analog Yes (2ch) / Yes (2ch) / Yes / Yes Zone Audio Output: Speaker / Preout No / Yes Zone HDMI Output from HDMI Source Yes IP Control / RS232 Control / Web Control / App Control Yes / Yes / Yes / Yes IR Flasher In Yes Marantz Remote Bus Yes DC Trigger Output 2 HDMI Diagnostics Yes Others
Auto Speaker Setup by Microphone Audyssey MultEQ XT32 Front Display 2 line FLD + port hole OLED Graphic User Interface – GUI Modern HD GUI GUI Languages 3 Setup Assistent Yes Smart Select Yes Firmware Update by Network / USB Yes / Yes Variable Cross Over Yes Optimized Bass Redirection Yes Bass Sync Yes Auto Power off Yes Sleep Timer Yes Inputs Outputs

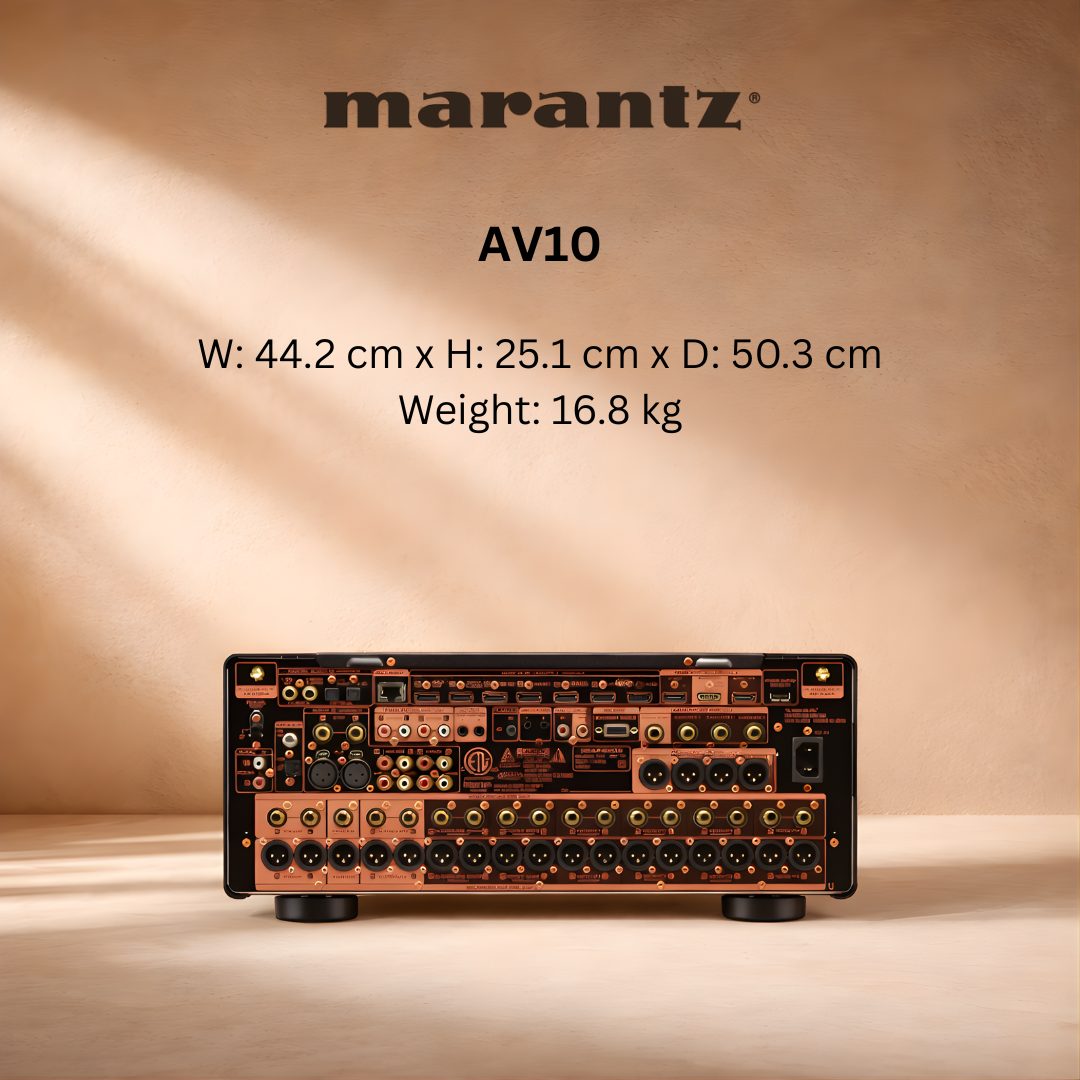

Composite In / Out No / No Component In / Out No / No HDMI In / Out 7 / 3 Multi-Room Video Out: Video / HDMI No / Yes Analogue In / Out 5 (1x XLR) / No Phono (MM) In Yes Digital In: Optical / Coaxial 2 / 2 Multi-Room Out: analog / digital 2 / No Multichannel Pre Out Yes (17.4 RCA & 17.4 XLR) Subwoofer Out 4 (independent) Speaker A / B assignable pre out Bi-amp drive assignable pre out Multi-Room Speaker Terminal pre out Front Inputs: Audio / Composite / Digital (Opt) / HDMI / USB No / No / No / No / Yes USB Audio / Made for iPod / Made for iPhone Yes / No / No AM/FM Tuner General
Metal Front Panel Yes System Remote Control RC047SR Pre-Programmed / Learnable / LCD Display Yes / Yes / Yes Power Consumption in W 100 Standby Consumption in W 0.2 CEC Standby Consumption in W 0.5 Network Standby Consumption in W Less than 2.0 Maximum Dimensions 442 x 503 x 189 Weight in lbs. 37.0 What’s in the box Main unit, remote control, batteries, wire labels, quick start guide, Audyssey microphone, card board microphone stand, 2 External Detachable Antenna, AC cord
