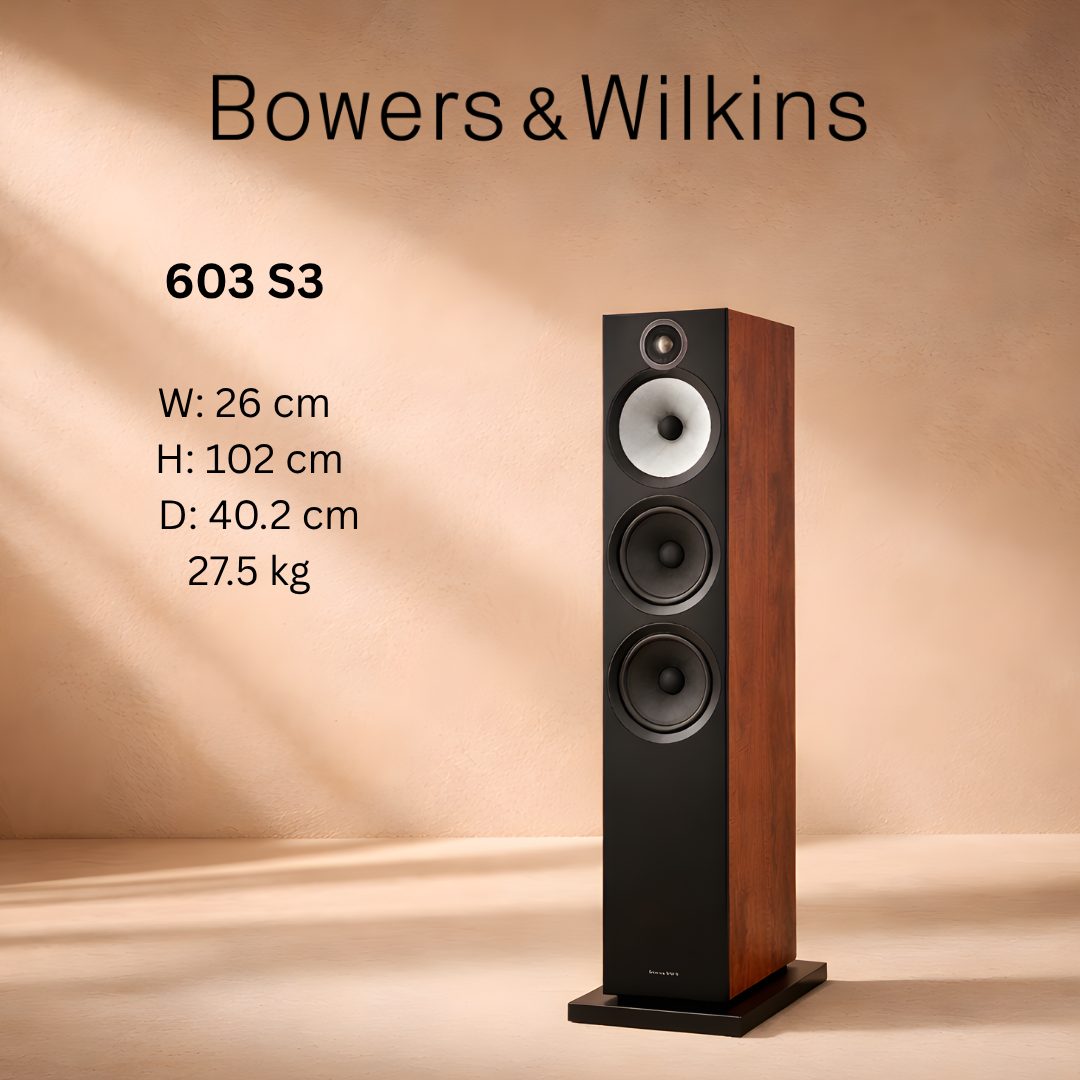

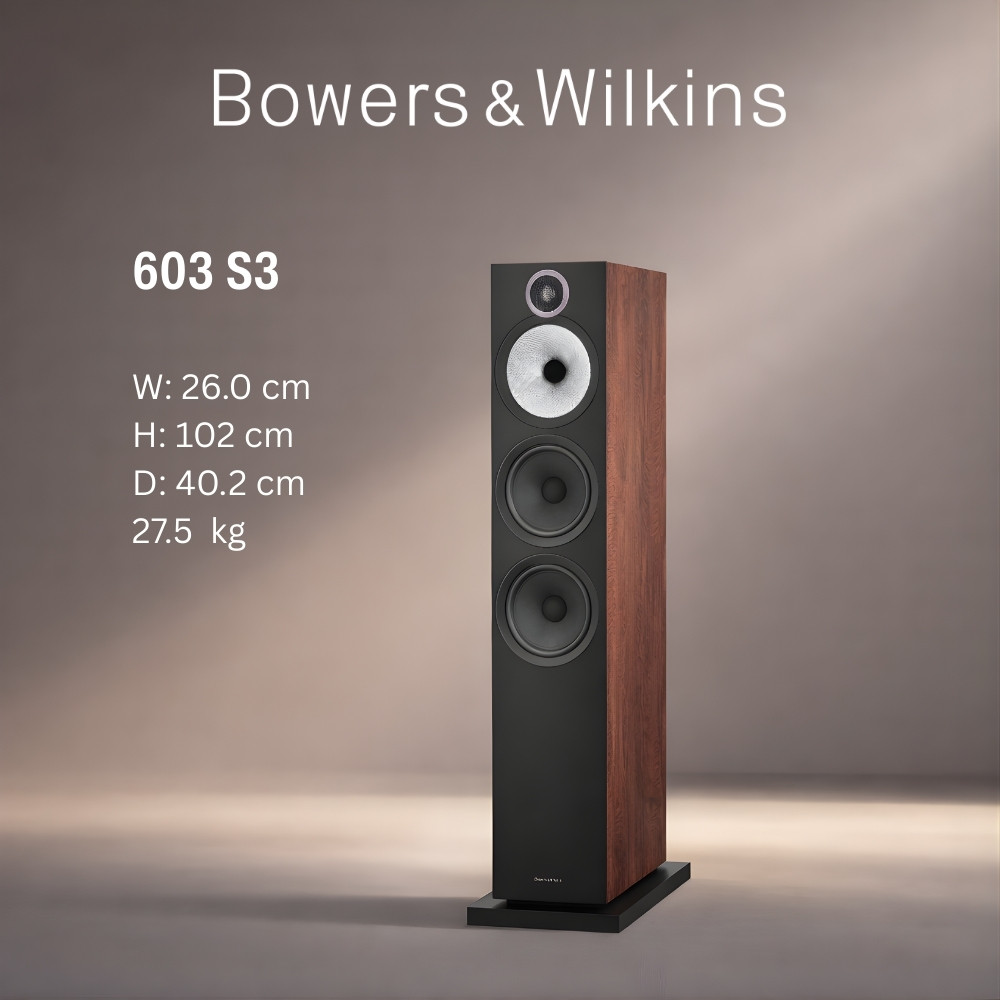

Bowers & Wilkins 603 S3 Floorstand speaker
- Description
- Specification
Description
The 603 S3 is the largest loudspeaker in the 600 Series and is ideal for larger rooms and home theaters. It combines our new Titanium Dome™ tweeter with the accuracy and transparency of our acclaimed Continuum™ cone FST™ midrange driver.
Upgraded speaker terminals
Derived from the speaker terminals recently introduced in our 700 Series range, the speaker terminals on the new 603 S3 feature an improved layout and a cleaner signal path between your amplifier and your loudspeakers.
Specifications
Dimensions
Height: 985 mm (38.8 in) cabinet only,1,020 mm (40.2 in) including plinth
Width: 190 mm (7.5 in) cabinet only,260 mm (10.2 in) including plinth
Depth: 340 mm (13.4 in) cabinet only,368 mm (14.5 in) including grille and terminals 402 mm (15.8 in) including plinth
Net weight :- 27.5kg (60.6 lb)
Technical features
Decoupled Double Dome Titanium tweeter
Continuum™ cone FST™ midrange
Paper bass cones
Flowport™
Drive units
1x ø25mm (1 in) Titanium Dome high-frequency
1x ø150mm (6 in) Continuum cone FST midrange
2x ø165mm (6.5 in) Paper bass cone
Frequency range :- -6dB 29Hz – 33kHz
Frequency response (+/-3dB from reference axis) 46Hz – 28kHz ±3dB
Sensitivity (on axis at 2.83Vrms at 1m) :- 90dB
Harmonic distortion
2nd and 3rd harmonics (90dB, 1m on axis)
<1% 100Hz – 22kHz
<0.5% 350Hz – 12kHz
Recommended amplifier power
30W – 200W into 8Ω on unclipped programme
Finishes

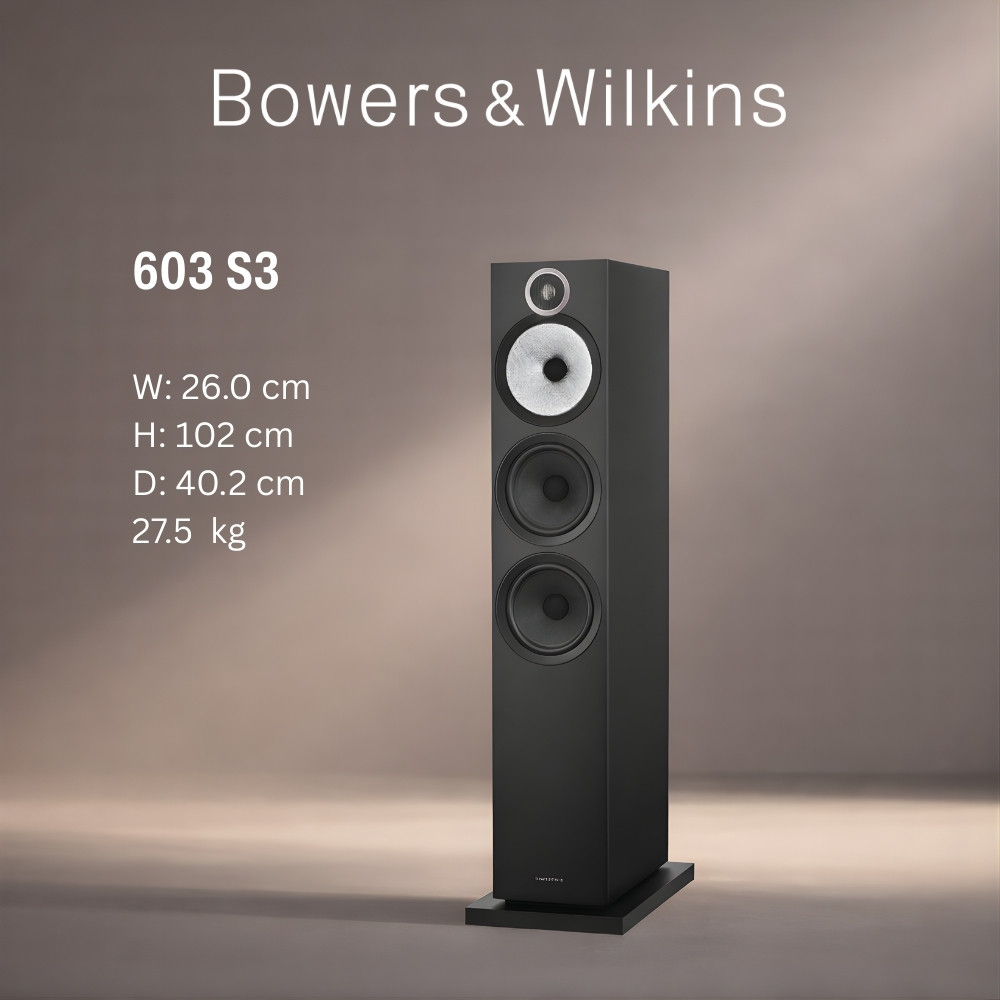

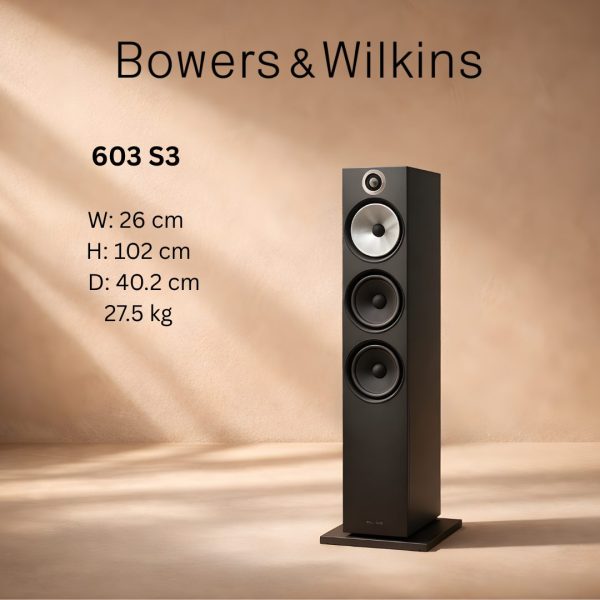

Black

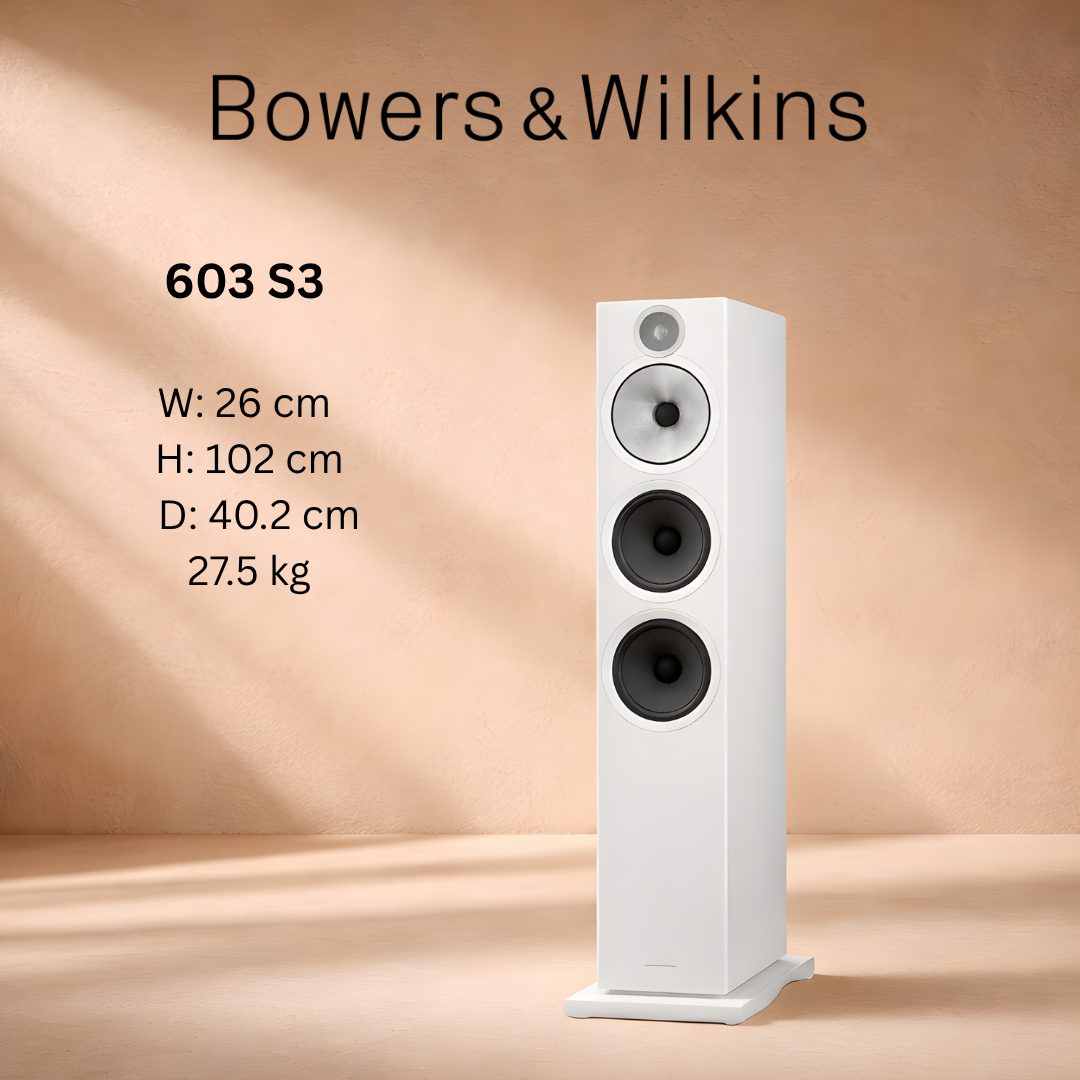

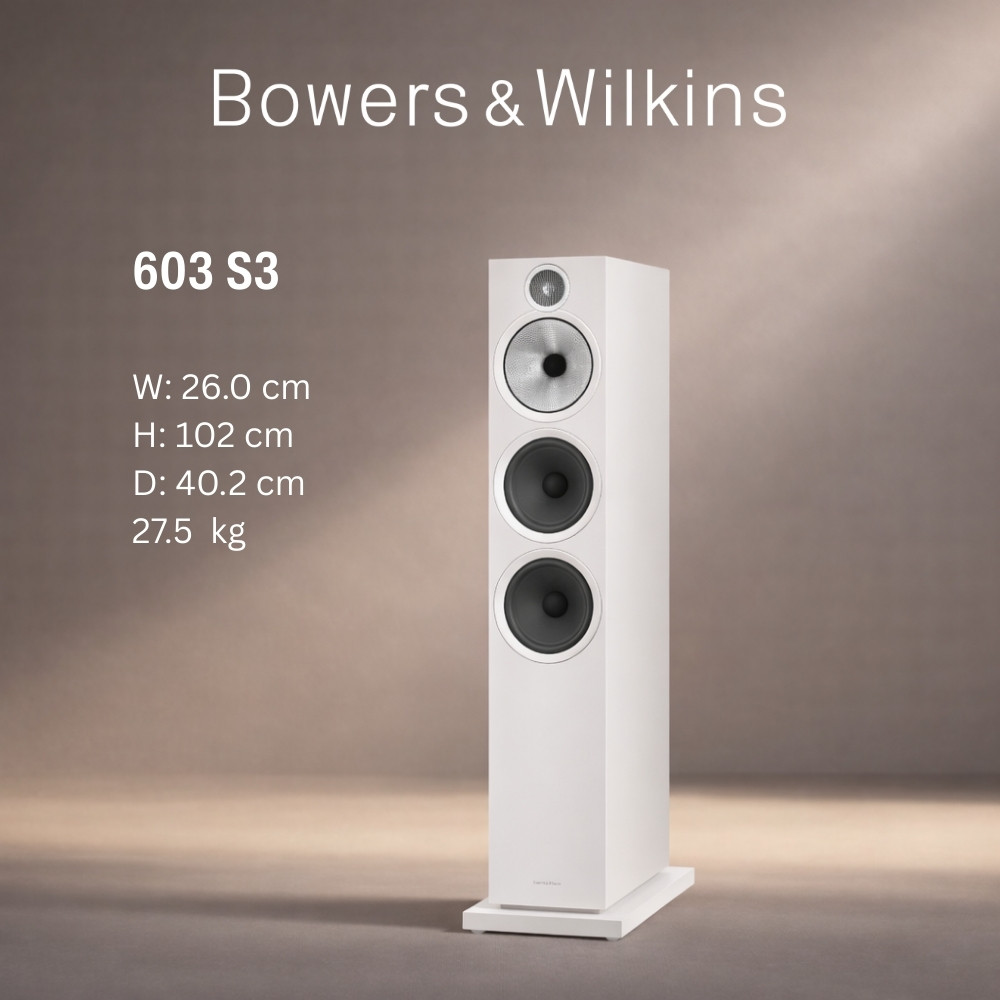

White

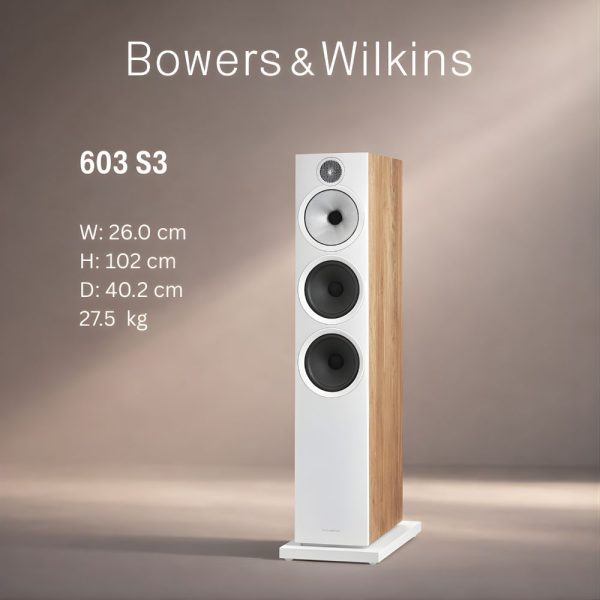

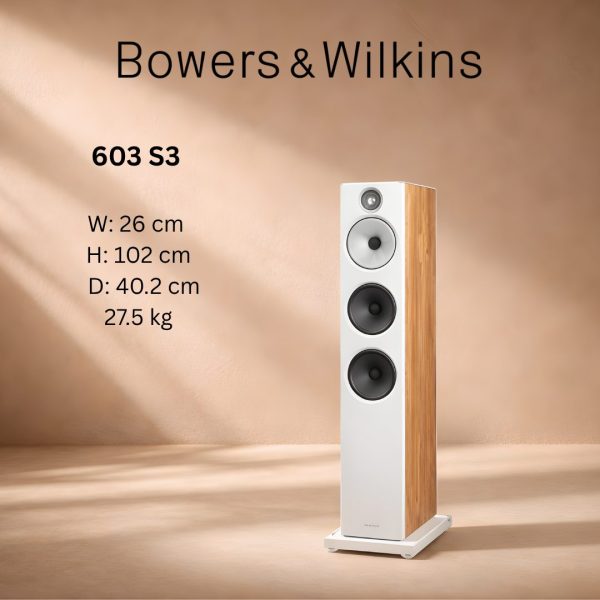

Oak
Grille finishes
Black (Black)
Grey (White and Oak)
