Description

The 606 S3 stand-mount speaker provides the ideal combination of size and performance. It combines our all-new Titanium Dome™ tweeter with the powerful accuracy and transparency of our acclaimed Continuum™ bass/midrange cone.

Layered, beautiful details

The new 606 S3 introduces our all-new Titanium Dome tweeter, which combines exceptional resolution and insight with smooth, refined high-frequency reproduction. The result? An accurate and immersive insight into your favorite music.

Truly amazing sound

606 S3 introduces our new and even more acoustically transparent tweeter grille mesh, first developed for our revered Signature models. Alongside the new Titanium Dome tweeter, the resolution and realism is exceptional.

Upgraded speaker terminals

Derived from the speaker terminals recently introduced in our 700 Series range, the speaker terminals on the new 606 S3 feature an improved layout and a cleaner signal path between your amplifier and your loudspeakers.

Specifications

Dimensions

Height: 344 mm (13.6 in) cabinet only,

Width: 189 mm (7.4 in) cabinet only

Depth: 300 mm (11.8 in) cabinet only,328 mm (12.9 in) including grille and terminals

Net weight  :- 7.05kg (15.5 lb)

Technical features

Decoupled Double Dome Titanium tweeter Continuum™ cone bass / midrange Flowport™

Drive units

1x ø25mm (1 in) Titanium Dome high-frequency

1x ø165mm (6.5 in) Continuum cone bass / midrange

Frequency range  :- -6dB 40Hz – 33kHz

Frequency response (+/-3dB from reference axis) 52Hz – 28kHz ±3dB

Sensitivity (on axis at 2.83Vrms at 1m) :- 88dB

Harmonic distortion

2nd and 3rd harmonics (90dB, 1m on axis)
<1% 100Hz – 22kHz
<0.5% 150Hz – 12kHz

Recommended amplifier power

30W – 120W into 8Ω on unclipped programme

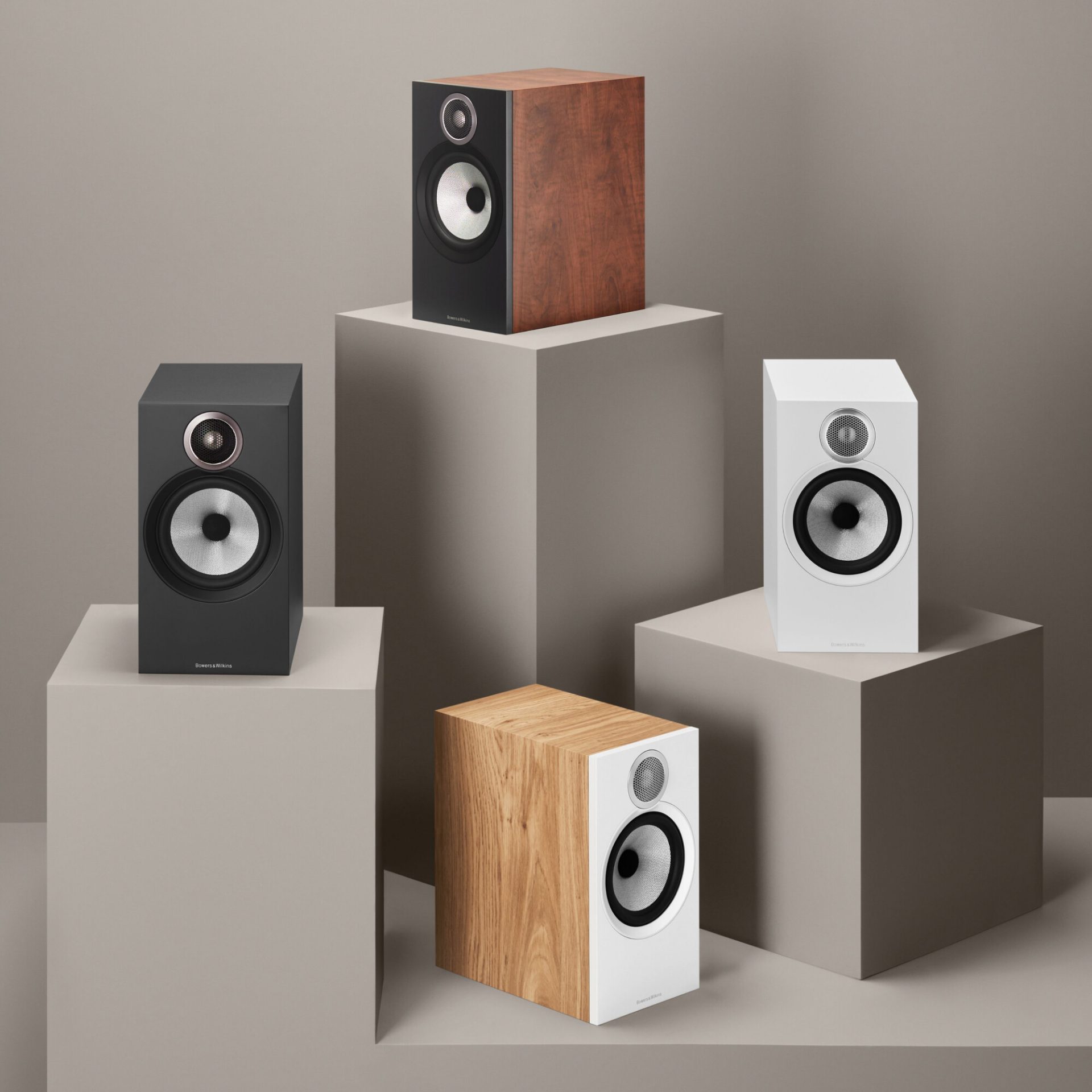

Finishes

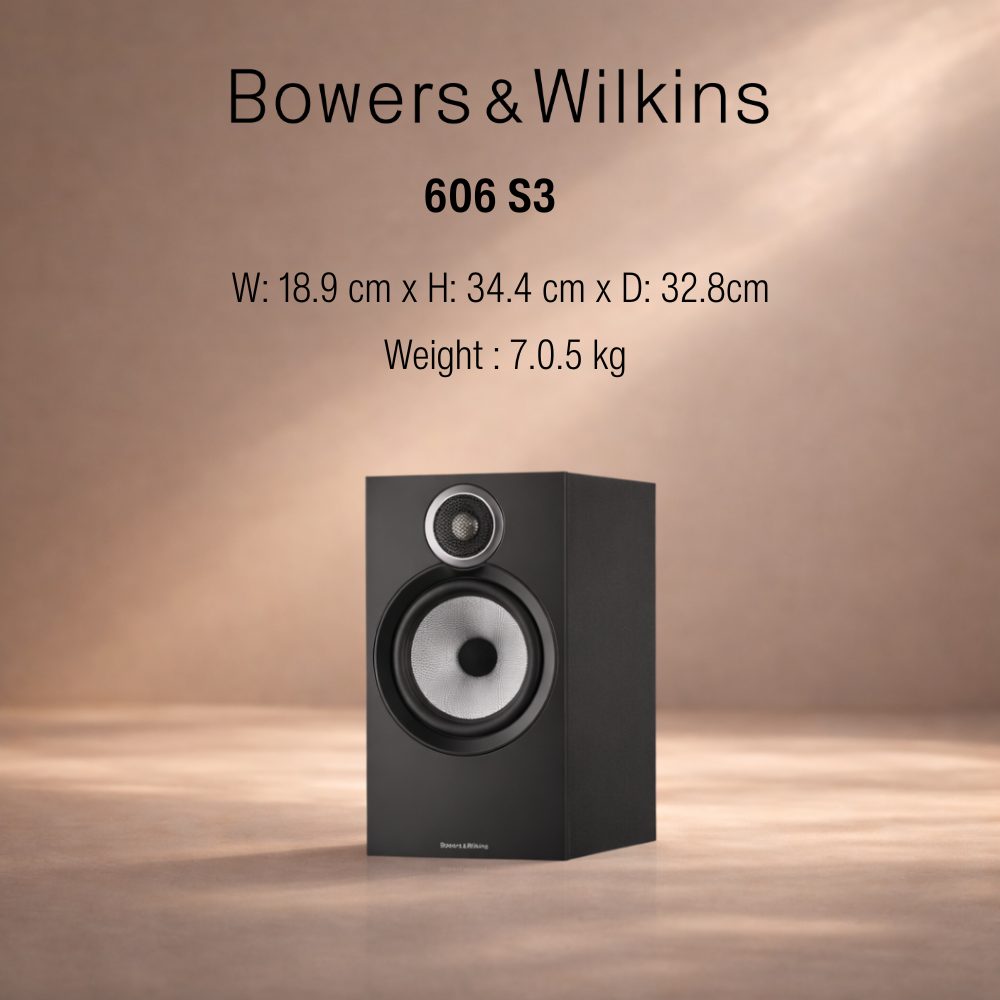

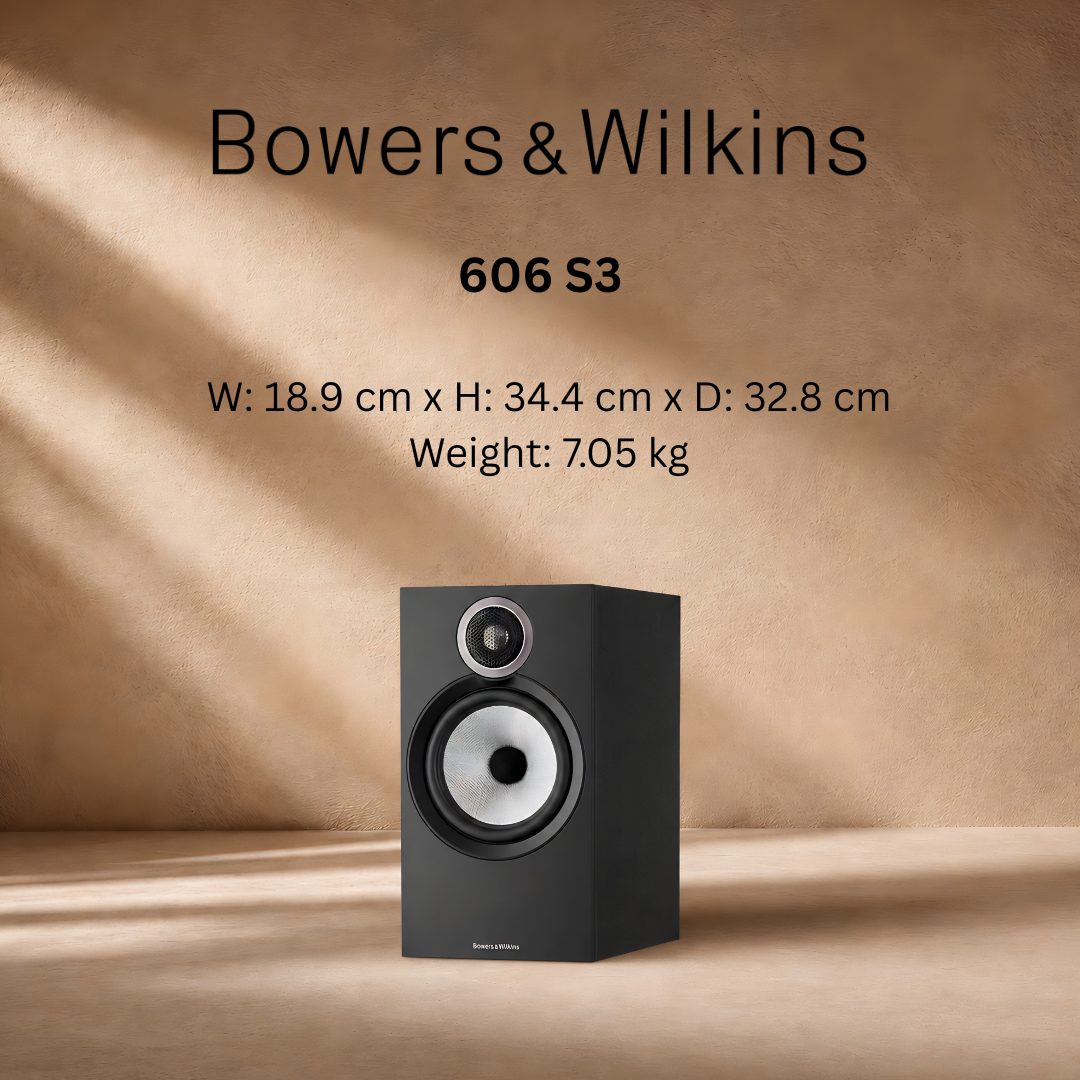

Black

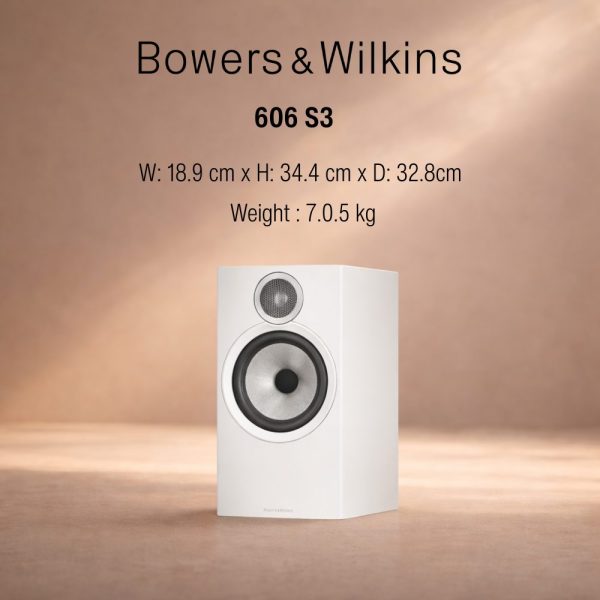

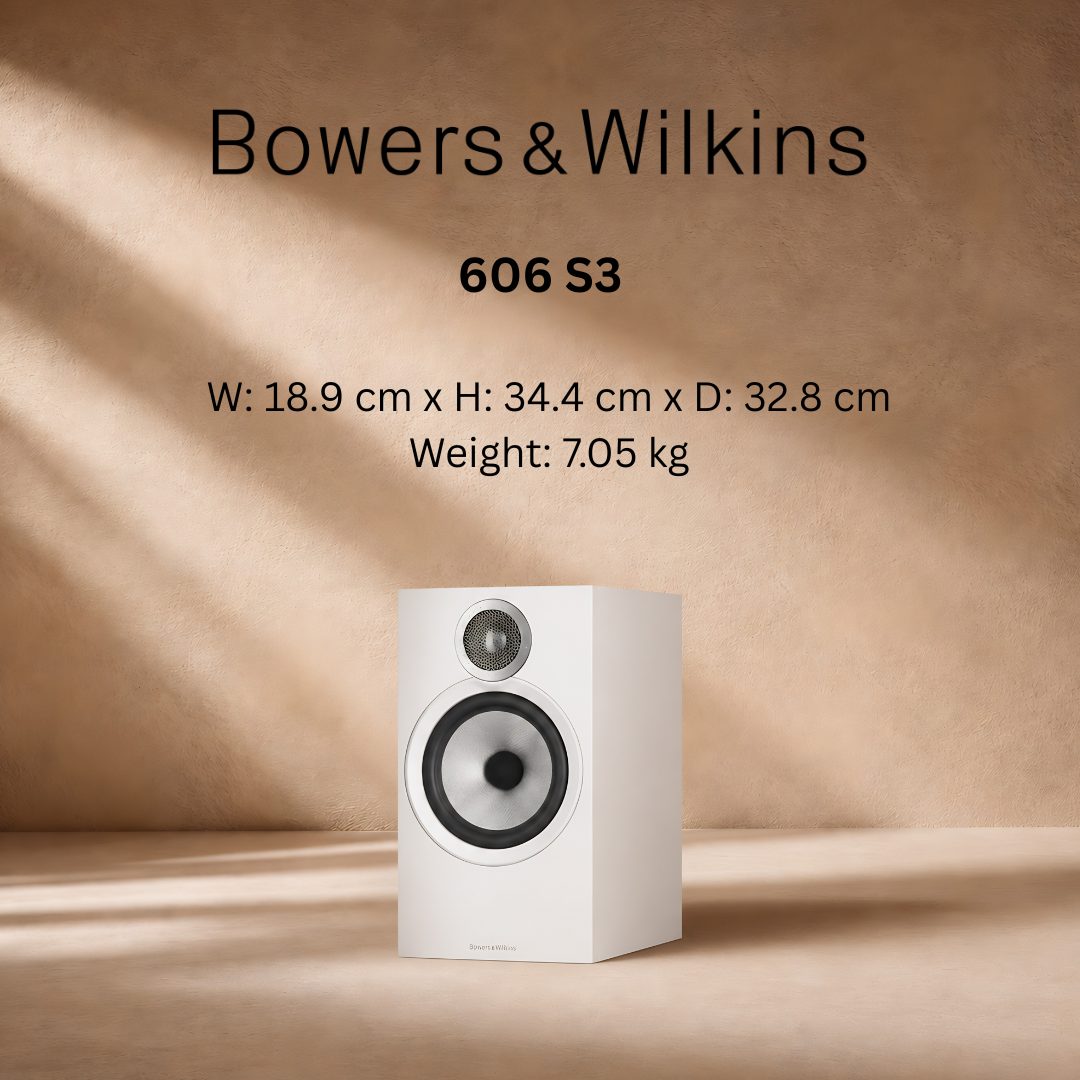

White

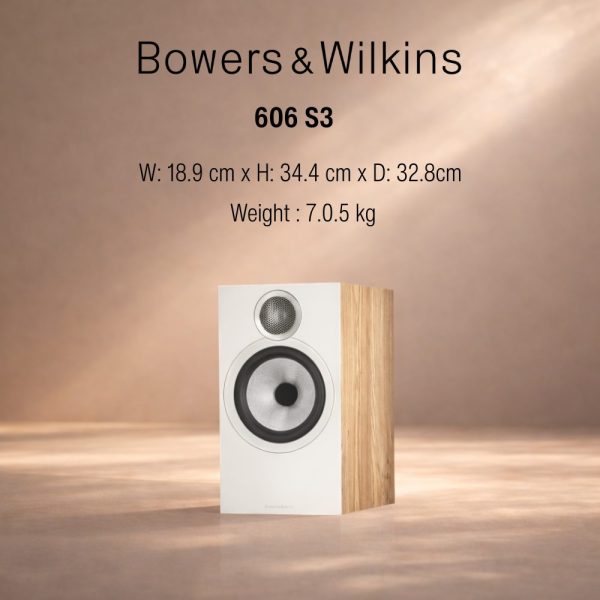

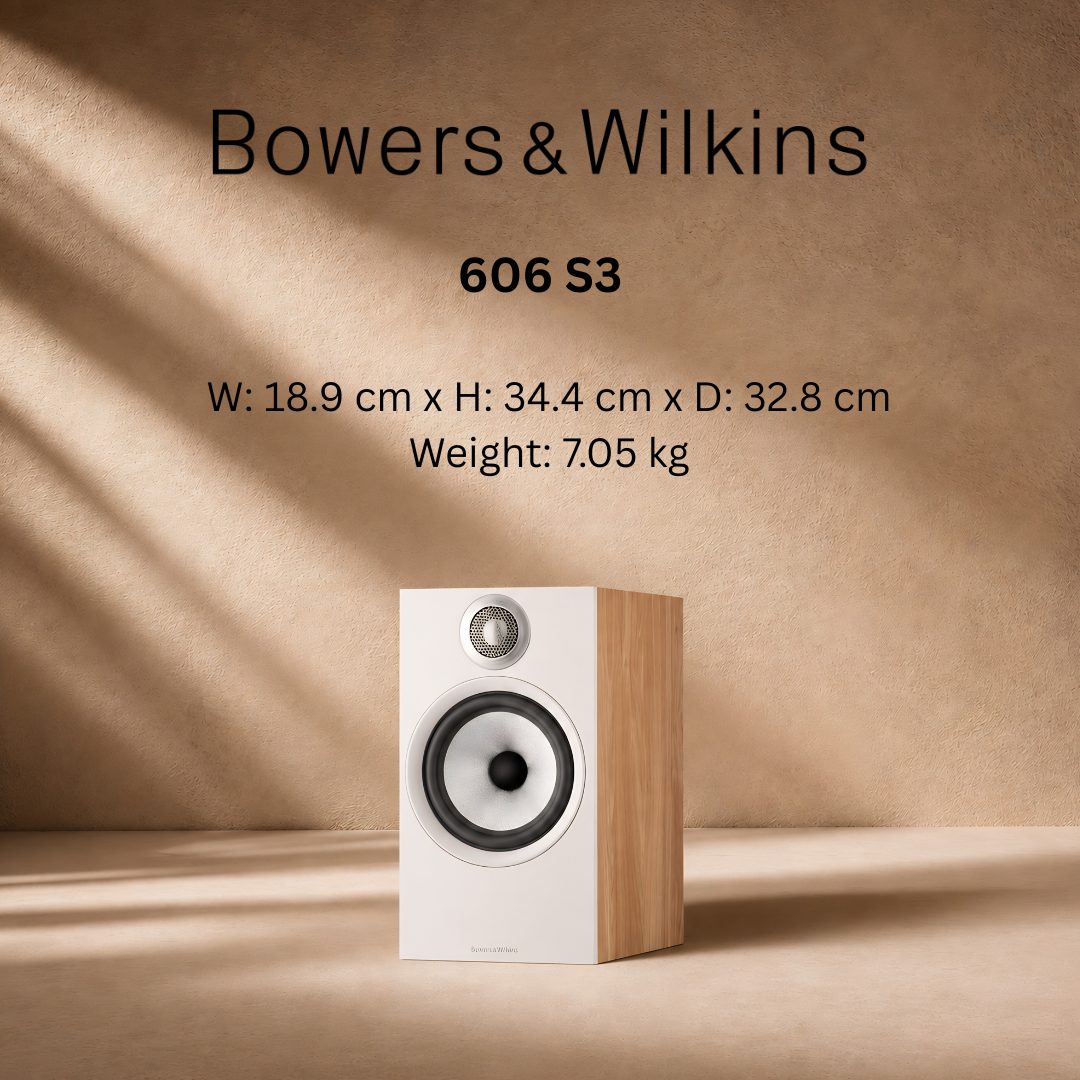

Oak

Grille finishes

Black (Black)
Grey (White and Oak)
