Bowers & Wilkins CCM8.5 D 2-way in-wall system

Description

CCM8.5 D

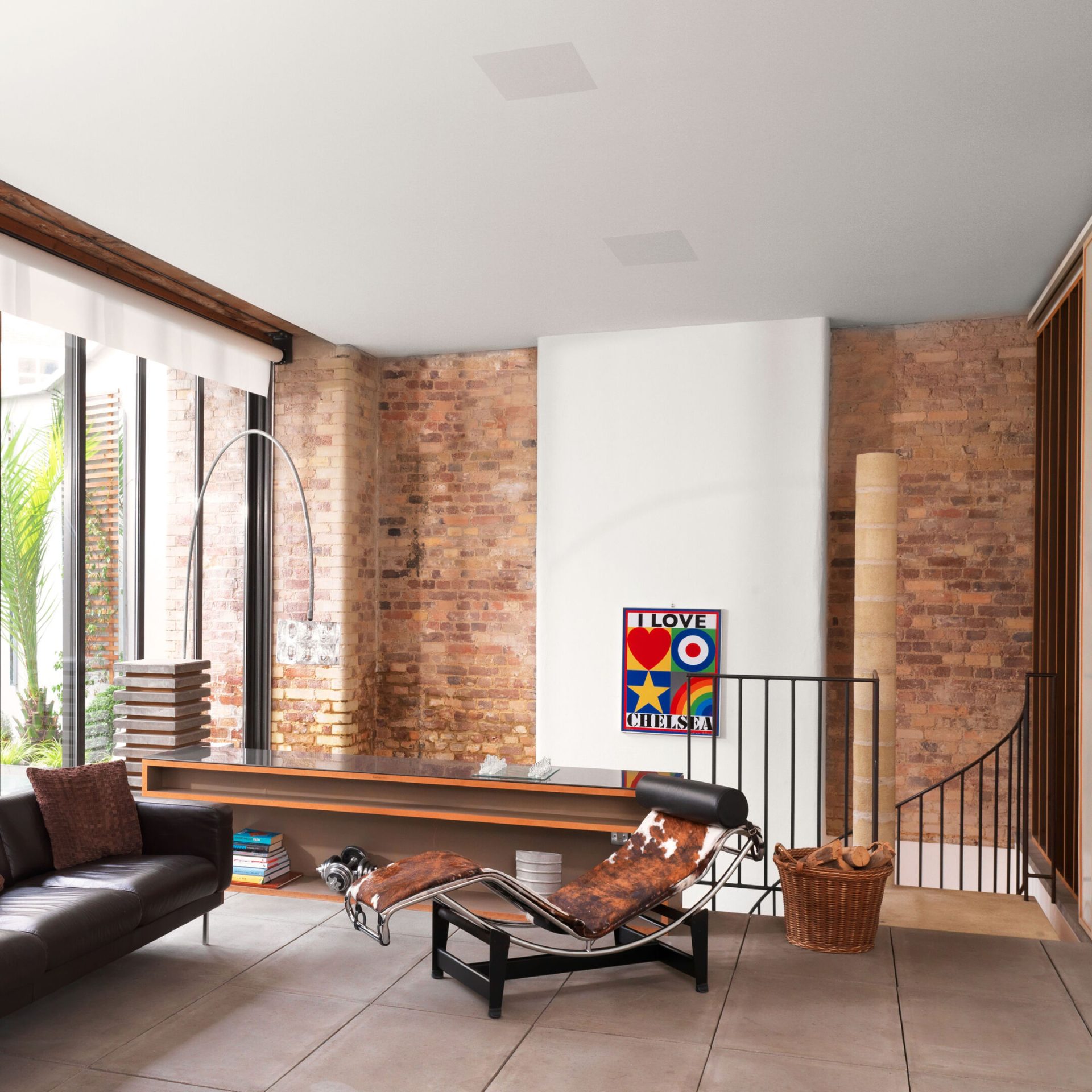

CCM8.5 D is a two-way in-ceiling loudspeaker which offers high-quality
acoustics in an incredibly discreet package.

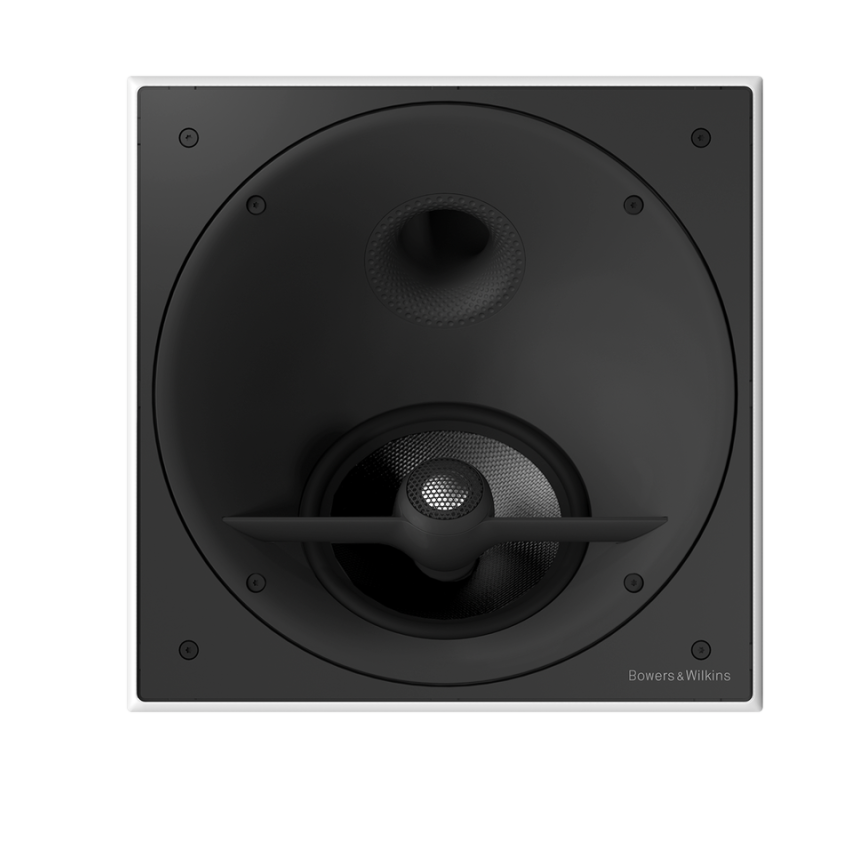

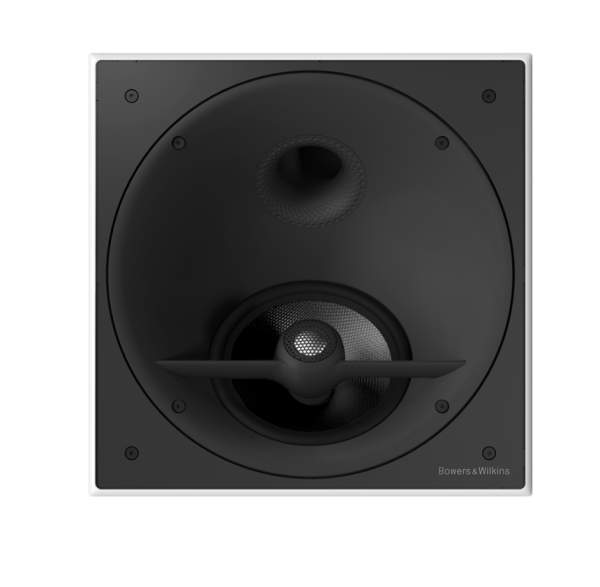

It features a decoupled Diamond dome tweeter and a single 7inch
bass/midrange Continuum driver with anti-resonance plug. All the drive
units are located in a rotatable mini-baffle which allows the user to ‘toe
in’ the drive units of the loudspeaker for the best performance.
For optimum discretion when installed, the Continuum cone is given
a dark finish.





tagged passive

Passive speakers must be powered by an amplifier. A passive speaker has positive and negative inputs which must be connected to the output of the amplifier with 2-core speaker cable (4-core is required for dual input single stereo speakers).



tagged imp-8

Measured in ohms, impedance is the resistance or load that a speaker puts on an amplifier. When multiple speakers are connected to an amplifier channel in parallel (doubled up on the terminals) this actually has the effect of reducing the total resistance (1/Rt = 1/R1 + 1/R2 …). Most amplifiers are rated at 4-16 ohms, so care should be taken to stay within this range. If the total impedance in parallel is less than 4 ohms then the speakers should be wired in series.

tagged music

Speakers with the Music icon are suitable for stereo music systems. Single mono speakers which are packaged individually and indicated by the ‘Single’ icon must be purchased in multiples of two when connecting to a stereo amplifier.

tagged cinema

Speakers with the Cinema icon are either dedicated products designed for multi-channel surround sound systems, or ones which we highly recommend for this purpose. It should be noted that the majority of speakers are suitable for use as surround and/or Atmos channels, so this icon does not apply to that application, and instead focuses on front speakers and subwoofers.

Description

  • 2-way in-wall system
Appearance
  • Visible Shape: Rectangular
  • Visible Colour: White

Technical features

Aluminium Tweeter ‘wing’
Rotatable aluminium
mini-baffle allows ‘toe-in’
Diamond Dome, Nautilus™
tube-loaded tweeter
Anti-resonance plug
Flowport™

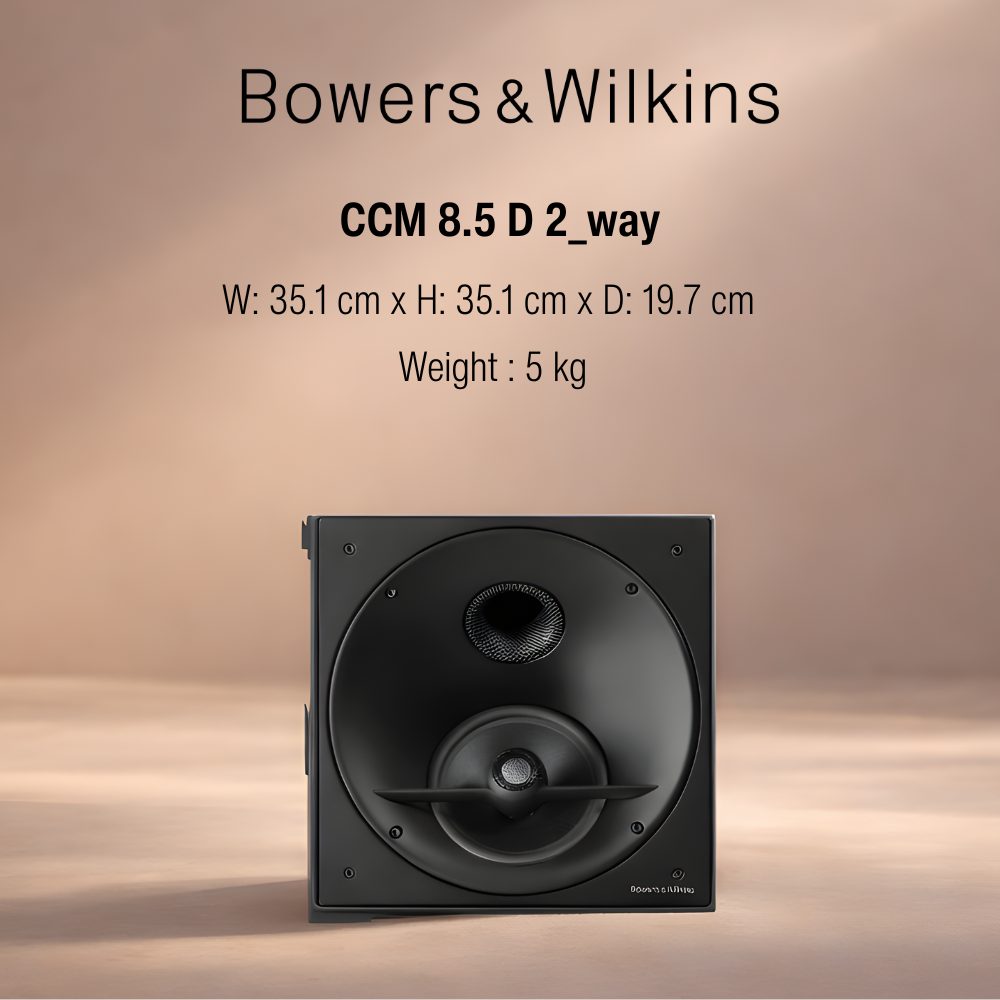

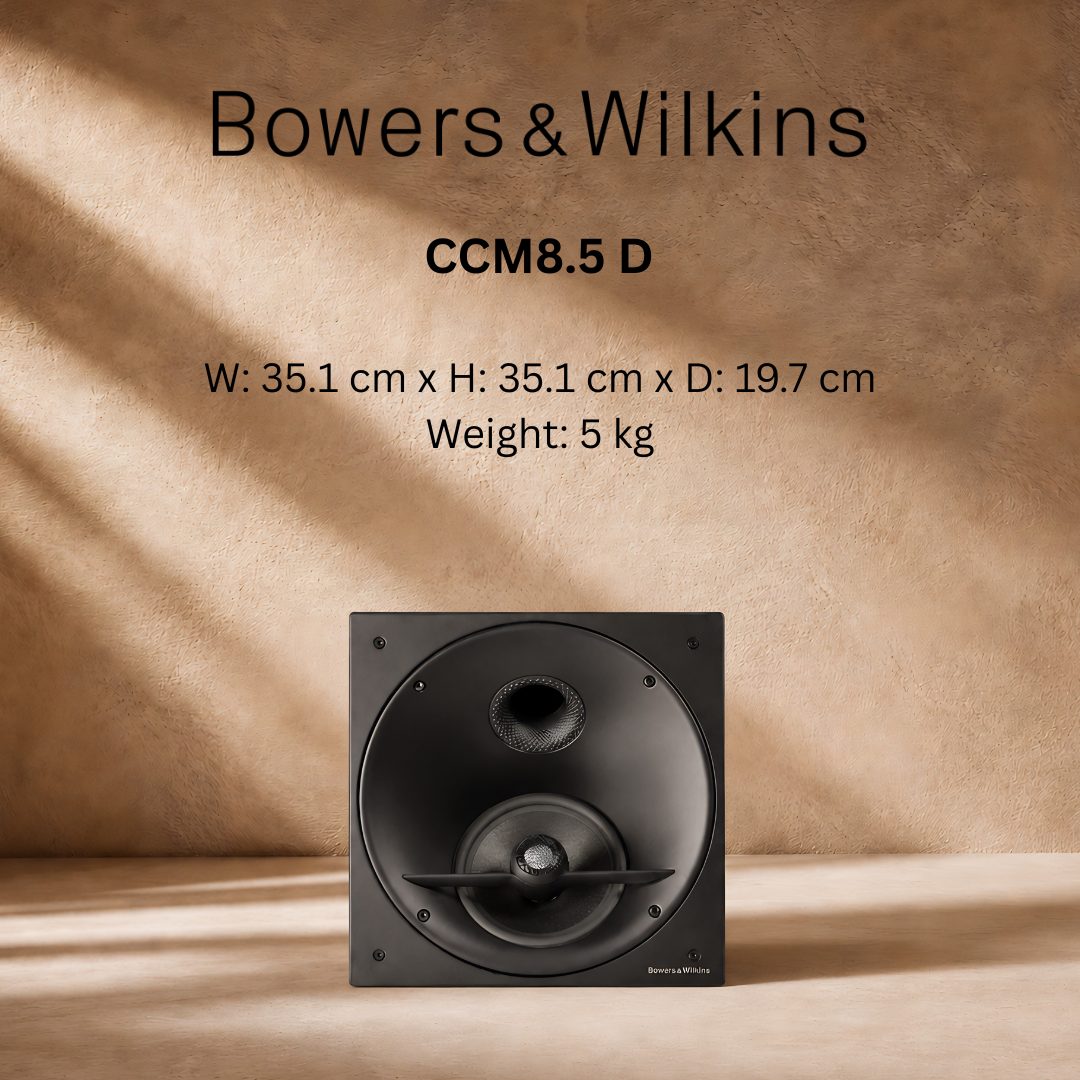

Dimensions
  • Frame height:351mm (13.8in)
  • Frame width:351mm (13.8in)
  • Cut-out height:331mm (13in)
  • Cut-out width:331mm (13in)
  • Protrusion:8mm (0.32in)
  • Net weight:5kg

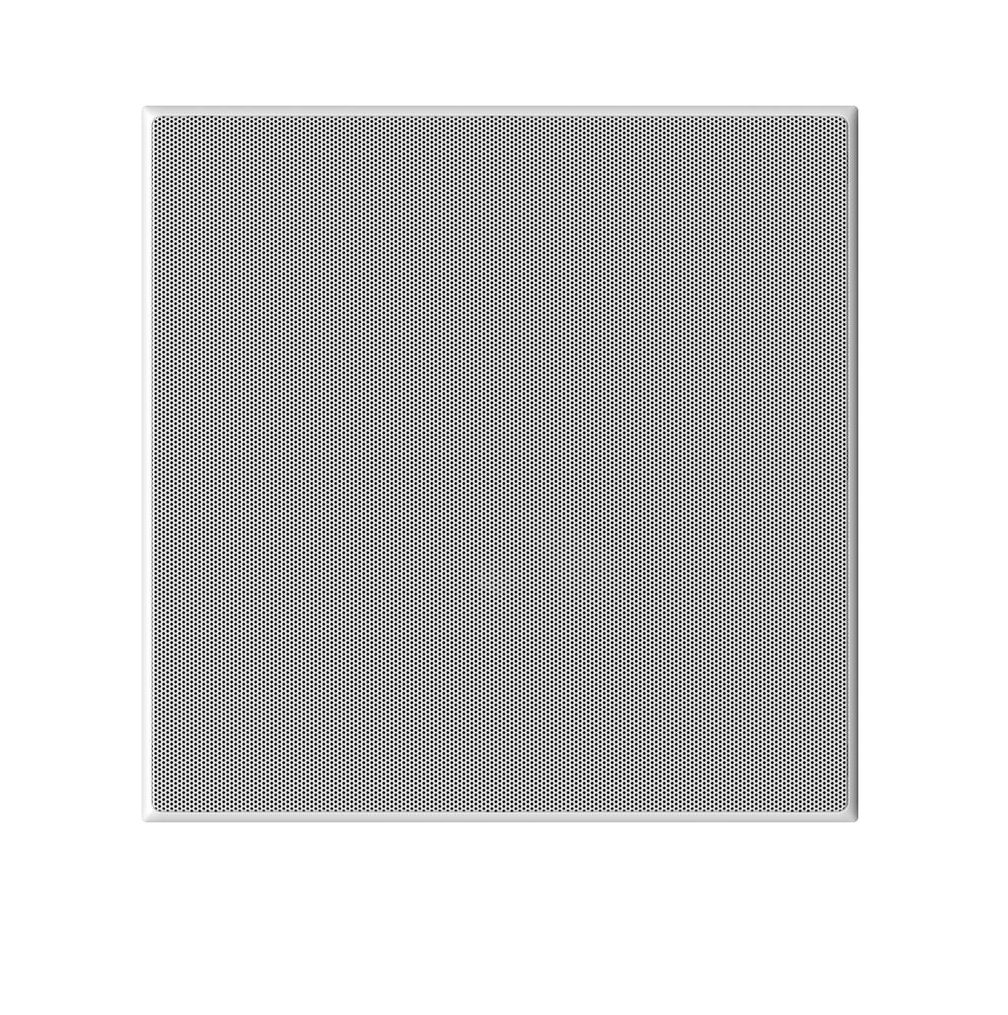

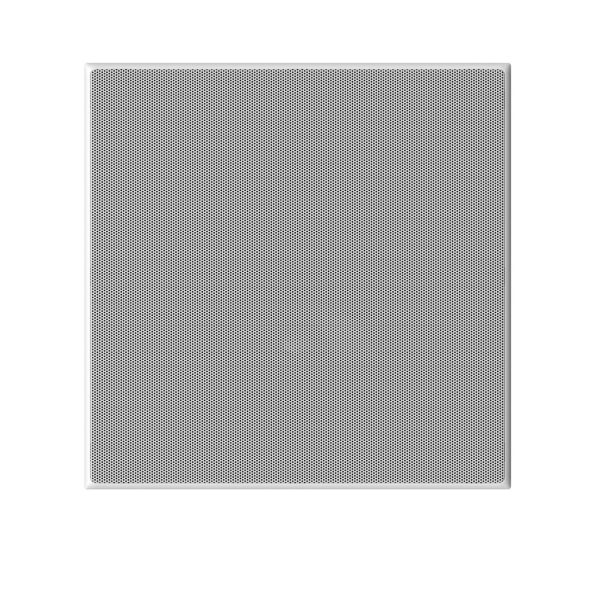

  • Grille: White
  • Back Box:BB CCM8.5
Detailed Specifications
  • Recommended amplifier power:120W
  • Compatible Amplifier (Watts RMS): 25 – 150
  • Frequency range (-6dB):35Hz – 35kHz
  • Nominal Impedance (Ω): 8Ω (minimum 3.8Ω)
  • Max Power High (Watts): 150
  • Sensitivity: 88dB
  • Frequency Response -3dB:45Hz – 28kHz ±3dB
  • Harmonic distortion:2nd and 3rd harmonics (90dB, 1m)
    <1% 90Hz – 33kHz
    <0.5% 120Hz – 33kHz
Driver Information
  • 1x ø25mm (1in) Diamond Dome,
    Nautilus™ tube-loaded tweeter
  • 1x ø180mm (7in) Continuum cone bass/
    midrange driver with anti-resonance plug
