Description

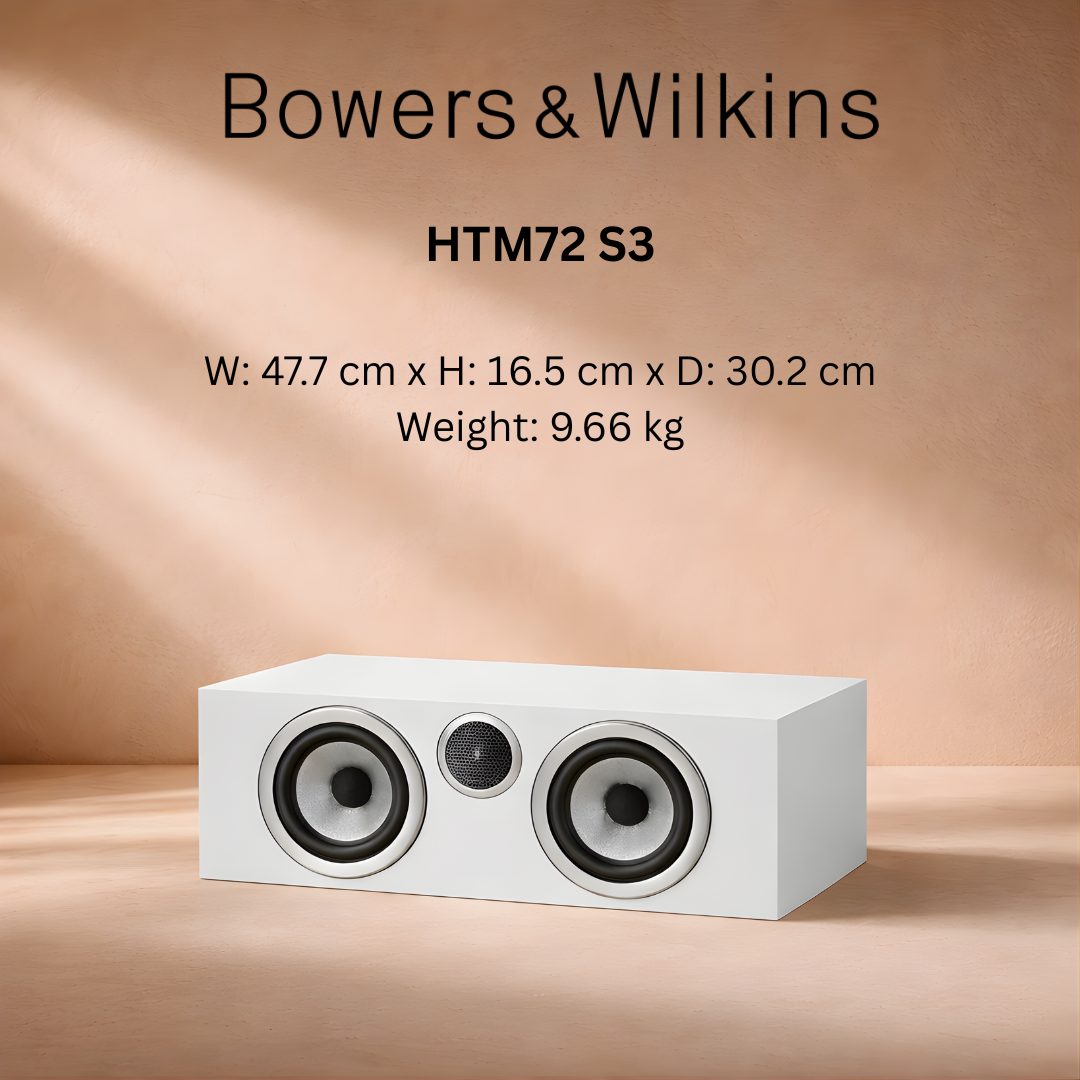

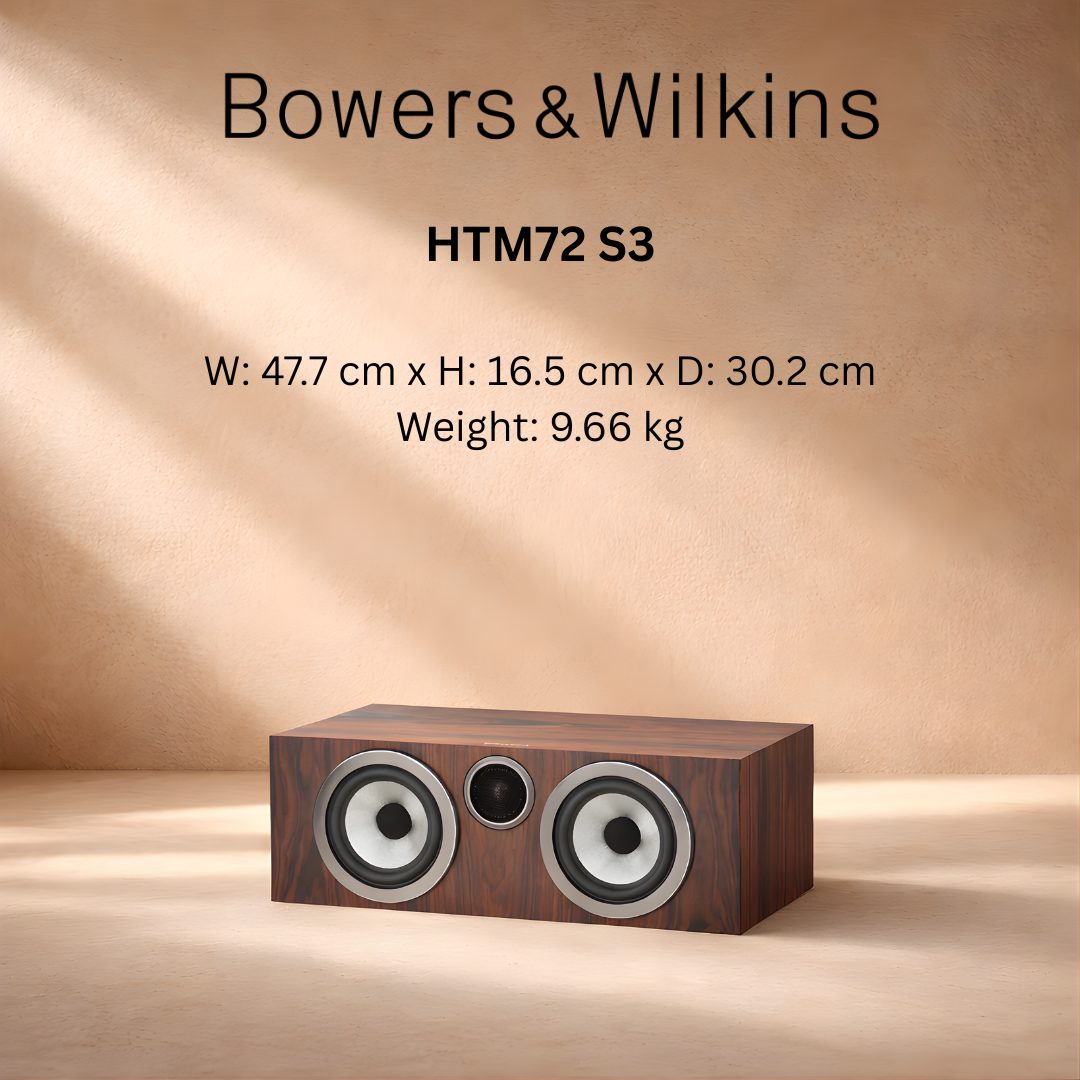

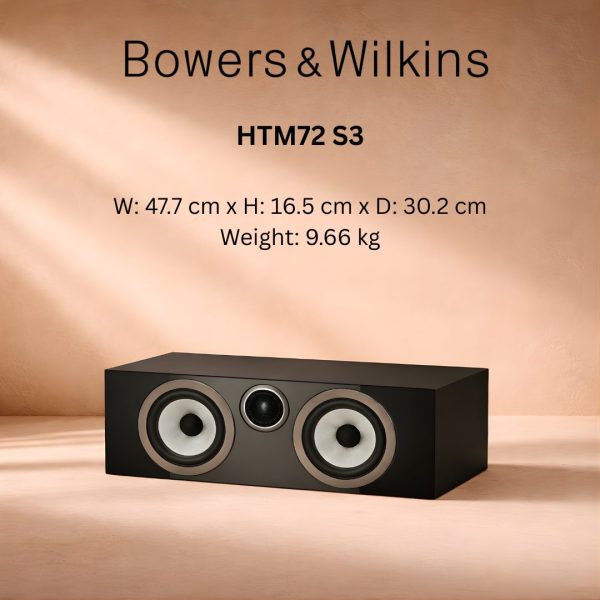

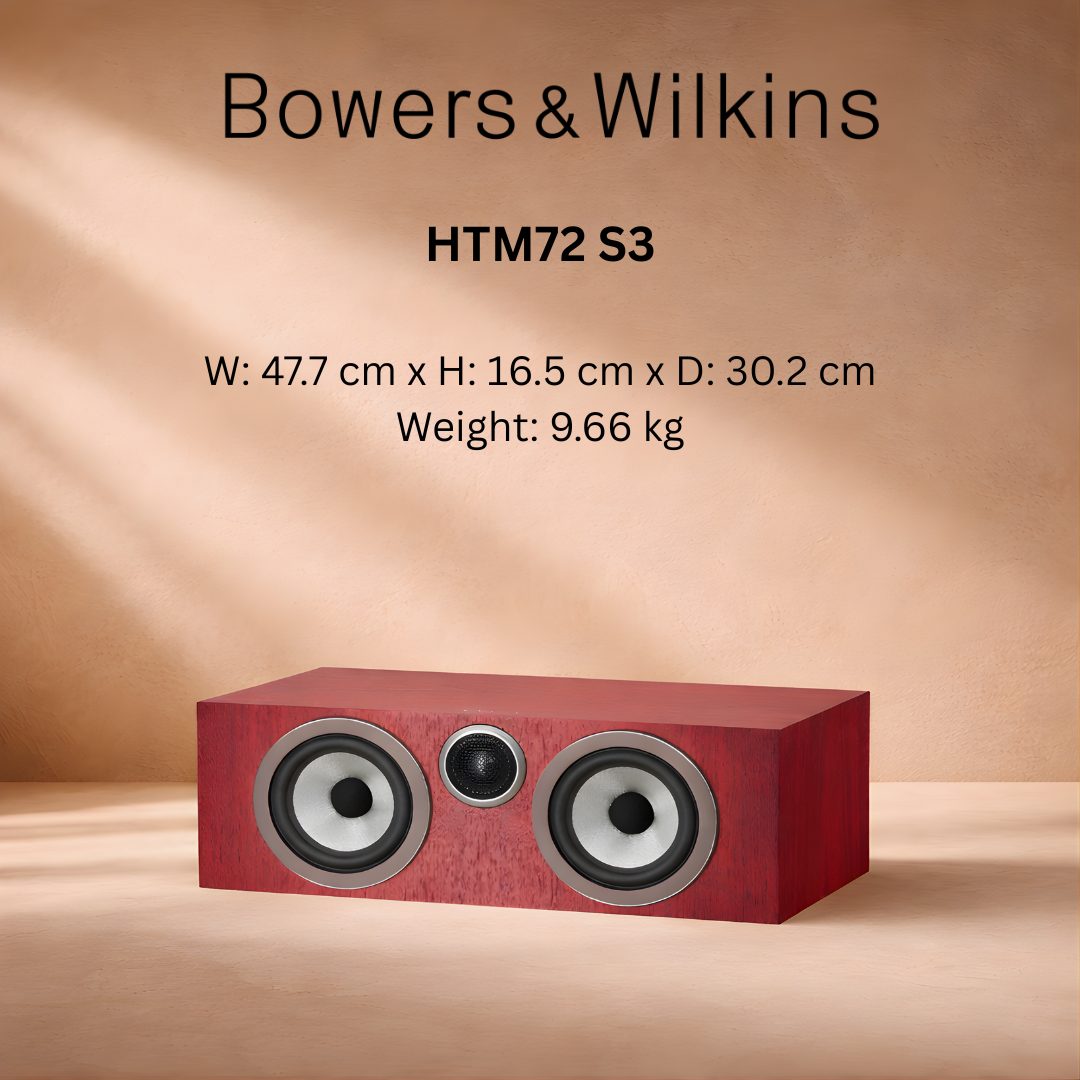

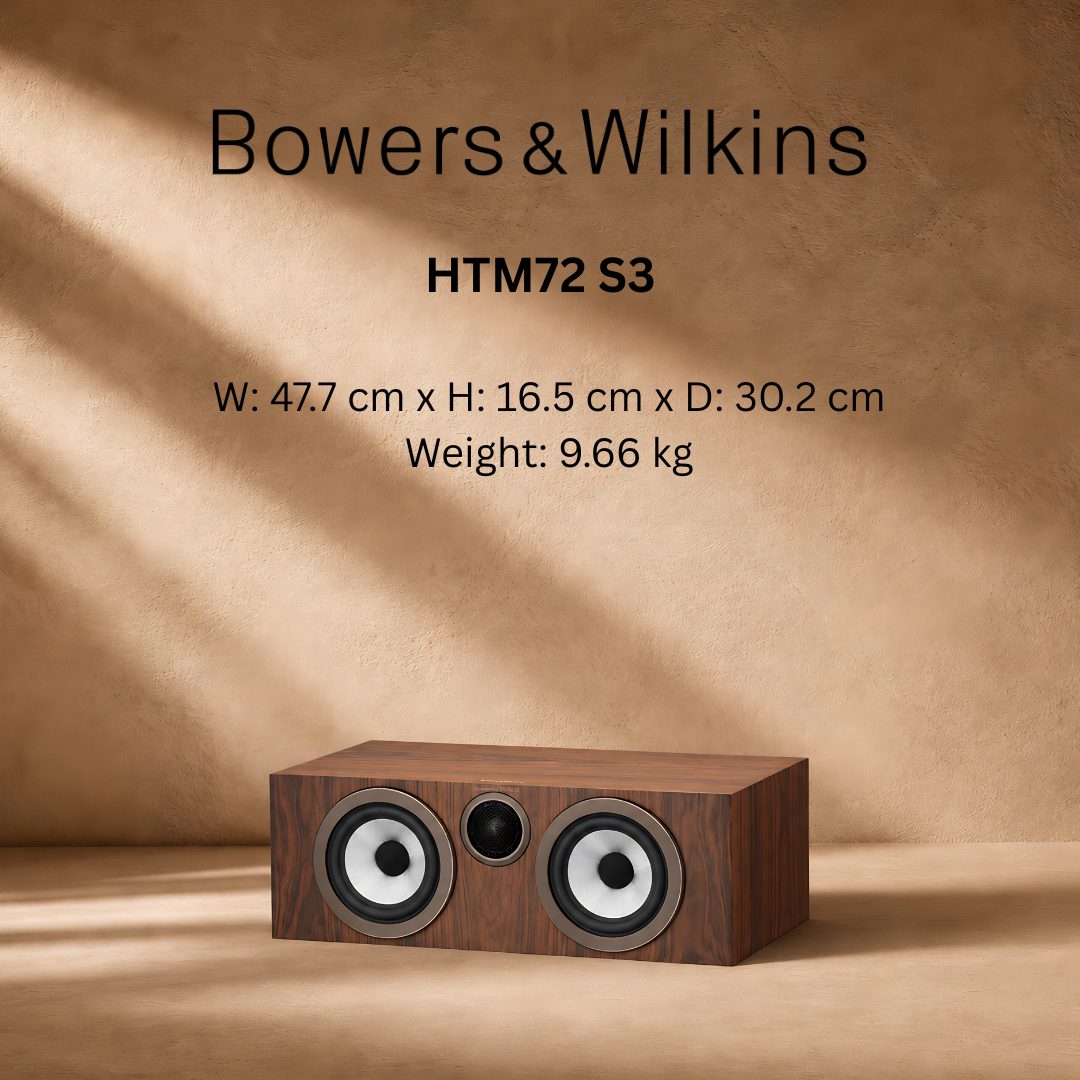

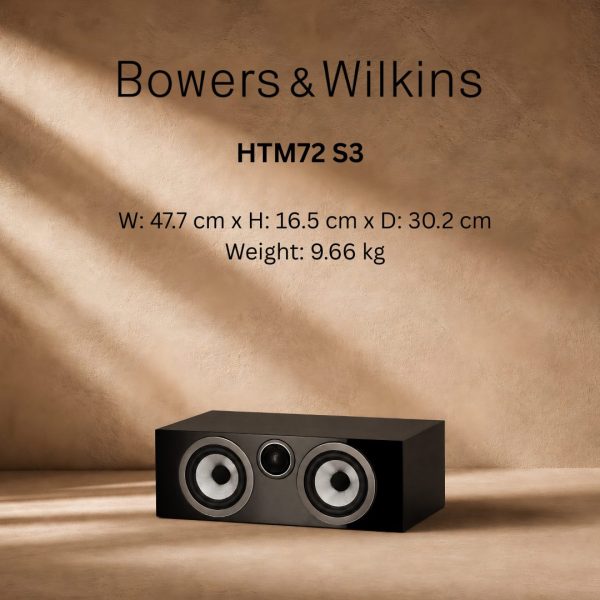

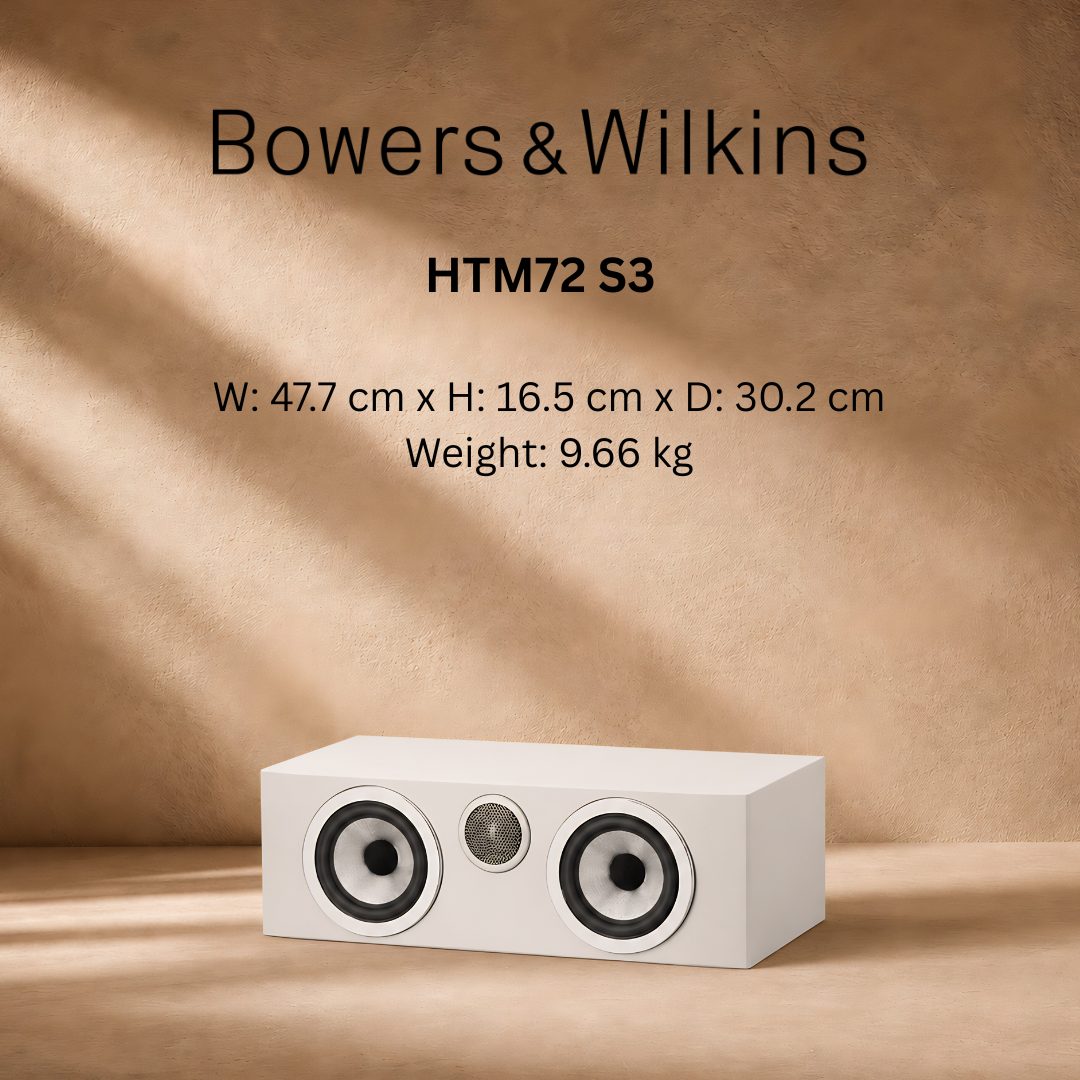

HTM72 S3 is the more compact center-channel speaker in the new 700 Series. It features a Carbon Dome tweeter and twin Continuum cone Mid/Bass drivers. It’s the perfect partner for a home theater system based around the 704 S3, 706 S3 or 707 S3.

Sharper detail

Carbon Dome tweeters are purpose-built for the 700 Series. Delivering a dramatic improvement on the aluminum double dome tweeter, they raise the breakup threshold to 47kHz, for pinpoint imaging accuracy and detail.

Truly amazing sound

Thanks to its composite construction, the Continuum™ cone avoids the abrupt transitions in behavior that can impair the performance of a conventional drive unit. The result is a more open, neutral performance that delivers voices and instruments with precision and transparency.

Specifications

Dimensions

Height: 165 mm (6.5 in) cabinet only

Width: 477 mm (18.8 in) cabinet only

Depth: 266 mm (10.5 in)  cabinet only 302 mm (11.9 in) including grille and terminals

Net weight  9.66kg (21.3 lb)

Technical features

Decoupled Carbon Dome tweeter
Continuum™ cone bass / midrange
Flowport™

Description  2-way vented-box system

Drive units

1x ø25mm (1 in) Decoupled Carbon Dome high-frequency

2x ø130mm (5 in) Continuum cone bass / midrange

Frequency response  70Hz – 28kHz ±3dB

Sensitivity   – 87dB spl (2.83Vrms, 1m)

Harmonic distortion

2nd and 3rd harmonics (90dB, 1m on axis)

<1% 100Hz – 22kHz
<0.5% 200Hz – 22kHz

Recommended amplifier power

30W – 120W into 8Ω on unclipped programme
