Built with high quality materials and Sound Master tuned to inspire listeners to discover new details in their favourite CDs.
Architectural design, modern materials, and intuitive operation make CD 60 as incredible to behold as to hear.The CD 60 can play back MP3, WMA, AAC and WAV, FLAC HD, ALAC, AIFF (up to 192-kHz/24bit), and DSD (up to 5.6- MHz) files from a connected USB storage device.In the CD 60, the proprietary HDAM circuit has been further optimized from its previous version by placing the parts symmetrically on the audio board and creating a more direct signal path. This update improves the sound stage from the previous models in pursuit of The Most Musical Sound.
Extraordinary sound and peerless style—Marantz CD 60 celebrates your CD collection with a player engineered to sound better than any other in this class. Built with high quality materials and Sound Master tuned, CD 60 adds precision CD playback to MODEL 40n or any high-quality audio system.
Artisanal Design
CD & CD-R/RW Support
Exclusive HDAM
High Res USB Playback
Marantz Musical Digital Filtering
Details & Specifications
General

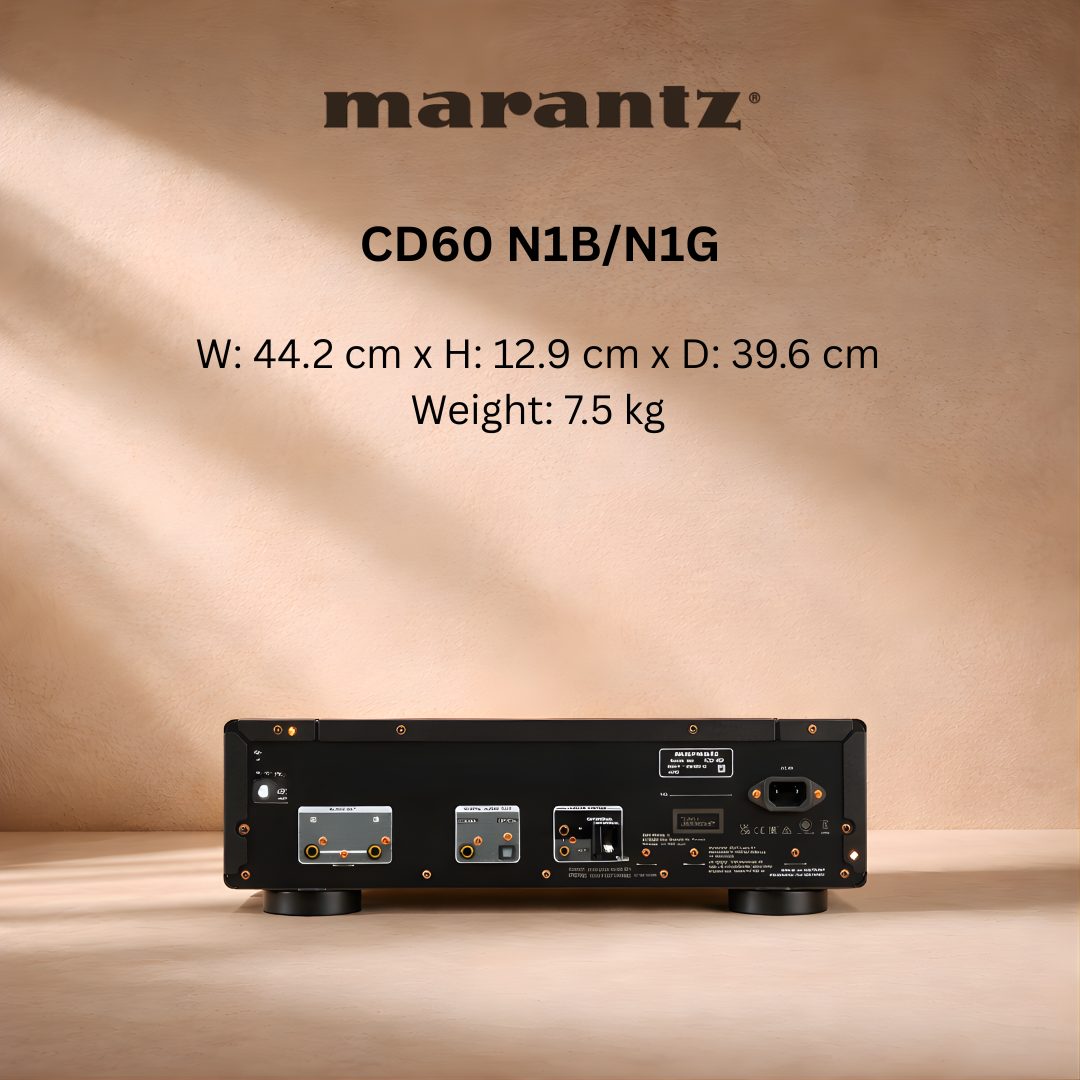

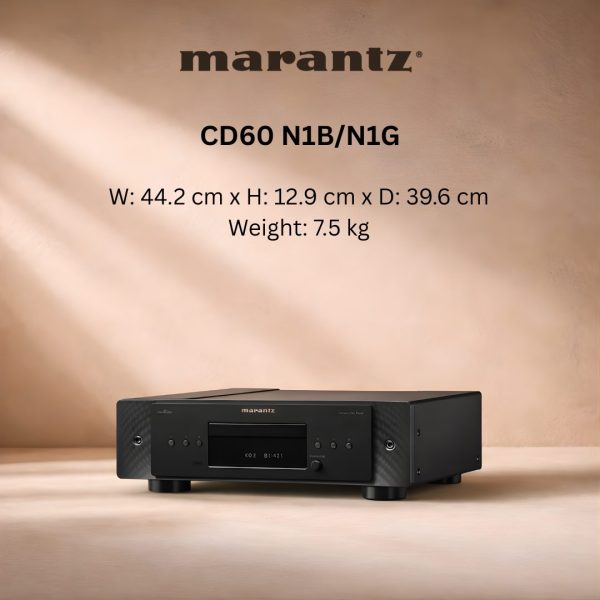

Unit (W x H x D mm)442 x 129 x 396
Net weight7.5kg
Packaging Dimensions (W x H x D mm)525×249×511
Panel ColorAvailable Colors: Silver/Gold and Marantz Black
Front (Center) PanelAluminum
Specifications
Frequency responseUSB DSD: 2Hz – 50kHz (-3dB)
USB PCM: 2Hz – 50kHz (-1.5dB)
CD: 2Hz – 20kHz
Total Harmonic DistortionUSB DSD: 0.0006%
USB PCM 24bit: 0.0005%
CD: 0.0015%
Signal to Noise RatioUSB DSD: 110dB
USB PCM 24bit: 118dB
CD: 118dB
Dynamic RangeUSB DSD: 110dB
USB PCM 24bit: 118dB
CD: 101dB
Line Output Level2.2Vrms
Headphone Output Level28mW / 32 ohms
Power Consumption38W
at Standby0.3W
Audio Feature
HDAMNew HDAM + HDAM-SA2
Power TransformerEI
Headphone AmpHigh slew rate op-amp
+ HDAM-SA2
H/P Amp Gain SettingYes (Low / Mid / High)
Digital FilterFilter 1, 2 Selectable
Connectivity Playback Capability
CD CompatibilityCD / CD-R/RW / WMA / MP3 / AAC
Data Disc CompatibilityDSD / WAV / ALAC
Fixed Analog Output (RCA)1 (Gold Plated)
Optical input / output (Maximum Support)0 / 1
Coaxial input / output (Maximum Support)0 / 1
Headphone Output1
Remote Control Bus TerminalYes (RC-5 In / Out)
w/ External / Internal Select Switch
