Description

The Wiim Amp is a fairly remarkable bit of kit, containing as it does a specification that is impressively comprehensive at the price. It sounds good, it looks good and it’s a pleasure to use. For many reading this it will be all the audio product they ever need.

A custom-designed heatsink ensures optimal thermal performance. Don’t let its compact design fool you – it packs 60 Watts per channel at 8 ohms, and 120 Watts per channel at 4 ohms. Transform your passive speakers including floor-standing, architectural, outdoor, or bookshelf, into smart audio powerhouses.

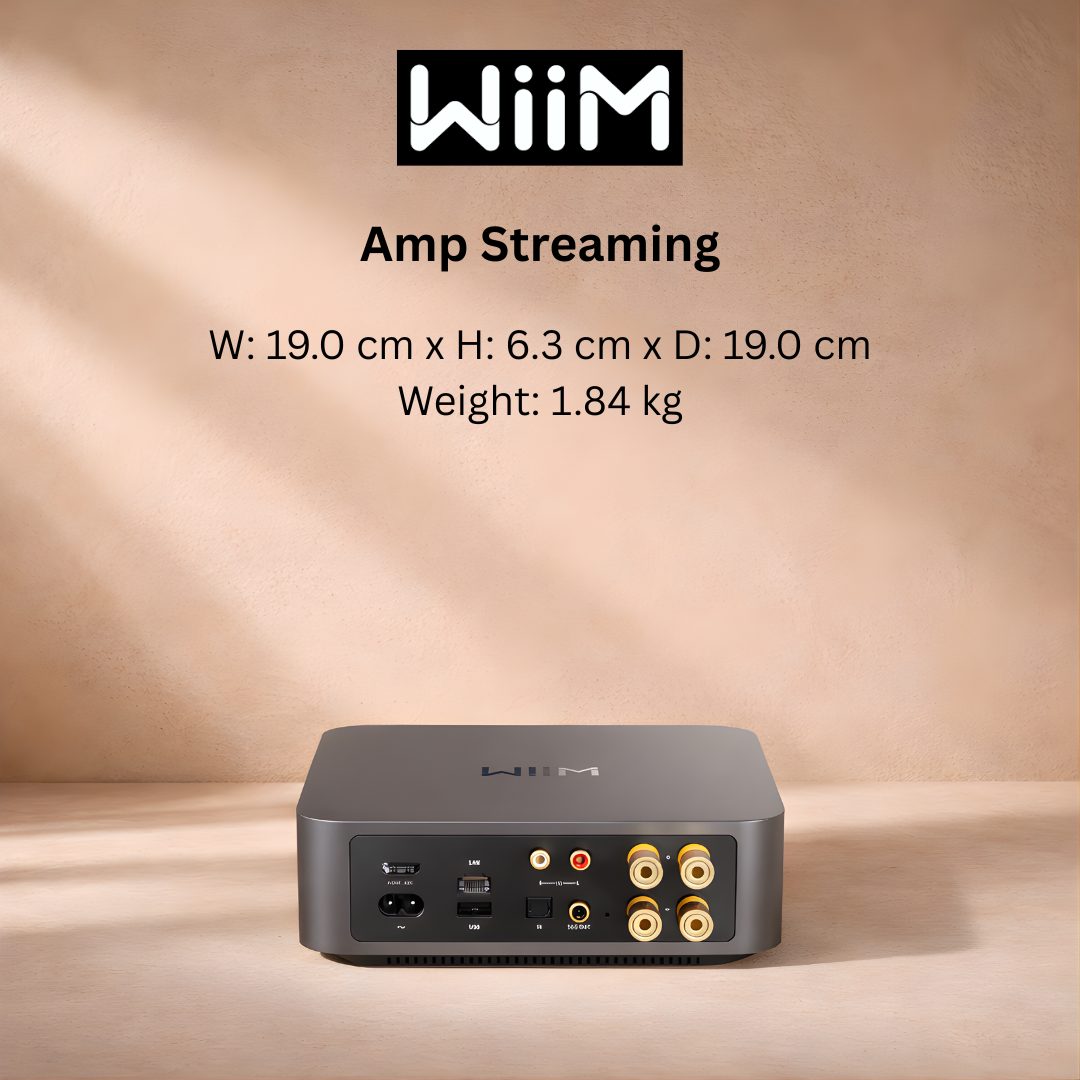

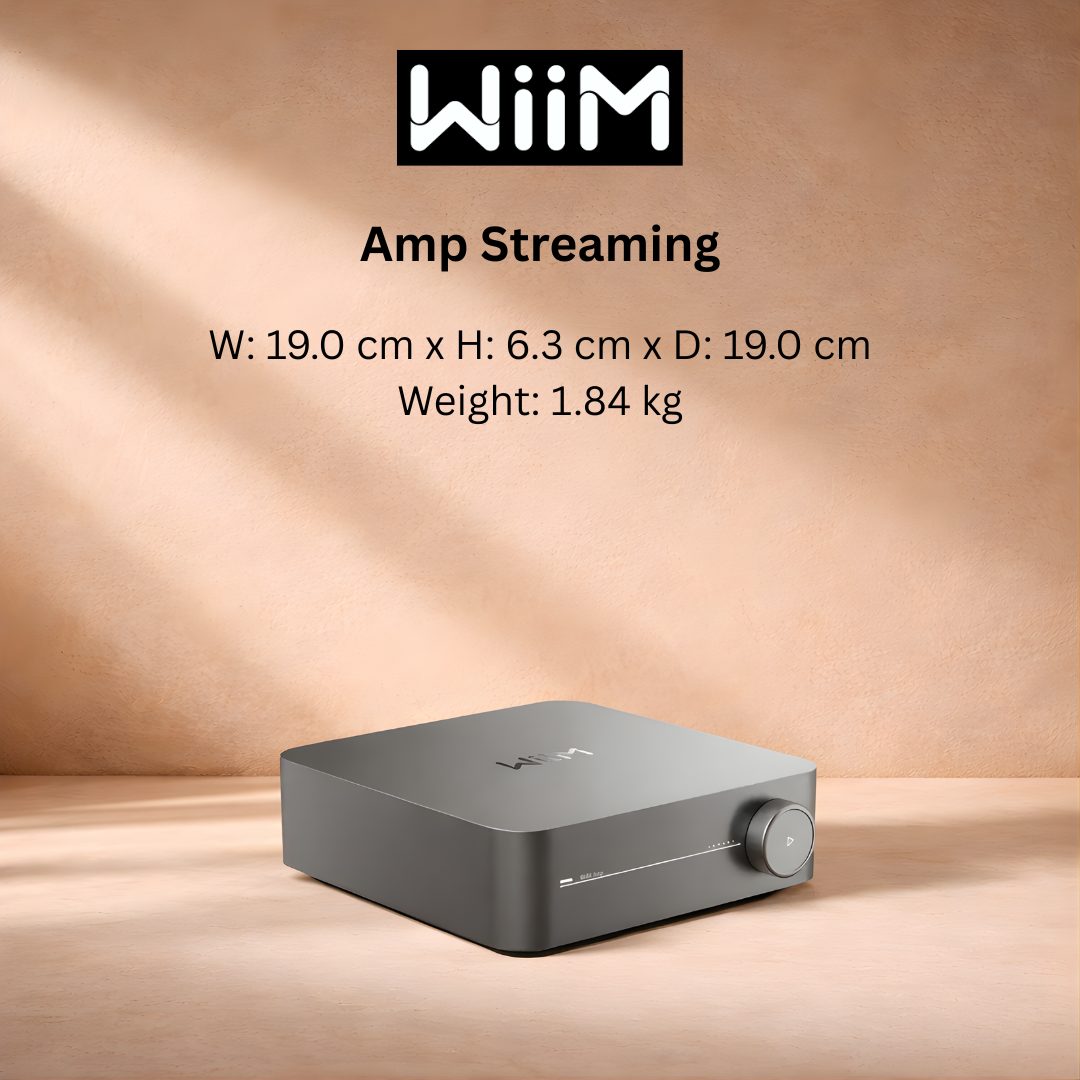

Dimensions：7.48” x 7.48“ x 2.48″ (190 mm x 190mm x 63 mm)
Weight：1.84kg(4.1 lbs)
Colors : Space Gray, Silver
Finish : Aluminum
Controls :olume knob, play/pause, and more
LED : Status, Volume
Power :
60 Watts/channel at 8 ohms
120 Watts/channel at 4 ohms
Speaker Output: Stereo or dual mono sound
Home Theatre Audio Formats : Stereo PCM (Dolby Digital and DTS are not supported)
Audio Input : HDMI Arc, Optical, Line
Audio Output :
Passive Speaker Terminal
Subwoofer Output
Audio Output Quality:
SNR – 98 dB
THD+N – 0.002% (-92 dB)
Audio Format : P3, AAC, ALAC, APE, FLAC, AIFF, WAV, WMA, OGG
EQ : Preset, 10-band Graphics EQ, 4-band parametric EQ
Subwoofer Output : Auto-detecting cable insert, user-adjustable 30-200 Hz crossover
Power Supply : 100-240V 50/60Hz AC Power
NetworkI : EEE 802.11 b/g/n/ac Dual band, 10/100 Mbps LAN
Bluetooth :
BT 5.1
A2DP Sink and Source, AVRCP
BLE HID
Supported Streaming : ProtocolAirPlay 2, Chromecast, Spotify Connect,
TIDAL Connect, Alexa Cast, DLNA
