Description

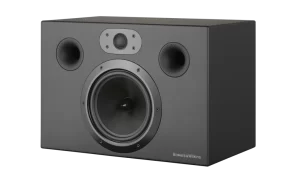

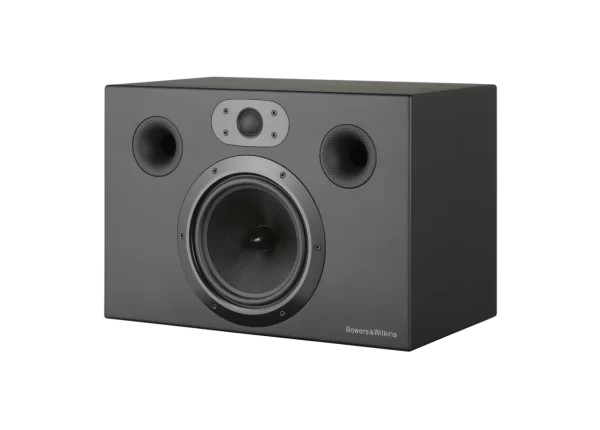

Bowers & Wilkins CT7.5 LCRS 2-way vented-box system
Experience home cinema as it was meant to be heard with B&W’s Custom Theatre 700 Series. Our new range of dedicated custom theatre loudspeakers brings B&W 700 Series technology and craftsmanship to your home cinema set-up at a cost-effective mid-range price.
The three models in the range integrate seamlessly with home theatre cabinetry and can each be positioned as left, centre, right or surround speakers. Each speaker uses high sensitivity Nautilus™ tube-loaded tweeters designed specifically for the reproduction of movie soundtracks along with first-order tweeter crossover filters for minimal signal degradation. Combined with our unique Aramid fiber drive units, the result is extraordinarily life-like, dynamic movie sound quality.
The entry-level speaker in the range, the CT7.5 LCRS delivers outstanding spaciousness, imaging and definition through its single 7 inch Aramid fiber CT700 Series bass/midrange drive unit.
Technical Specifications
Technical features :-
Nautilus™ tube loaded tweeter
Aramid Fibre bass/midrange cone Flowport™
Magnetically attached grille
Drive units :-
Frequency response :55Hz – 22kHz ±3dB on reference axis
Frequency range:-6dB at 48Hz and 28kHz
Sensitivity :- 92dB spl (2.83V, 1m)
Dispersion:Within 2dB of reference response
Horizontal: over 60º arc
Vertical: over 10º arc
Harmonic distortion:2nd and 3rd harmonics (90dB, 1m)
<1% 100Hz – 20kHz
Nominal impedance:8Ω (minimum 4.6Ω)
Crossover frequency:4kHz
Recommended amplifier power :- 50W – 120W into 8Ω on unclipped programme
Dimensions :-
Height: 305mm (12 in)
Width: 444mm (17.5 in)
Depth: 265mm (10.5 in)
Depth with grille: 288mm (11.3 in)
Net Weight :- 11.6kg (25.6 lb)
Finishes:Cabinet Black painted
Grille Black cloth
