Description

Bowers & Wilkins CT8.2LCR

The CT8.2 LCR is the latest addition to the very successful CT800
Series. It marries high efficiency and SPL capability to outstanding

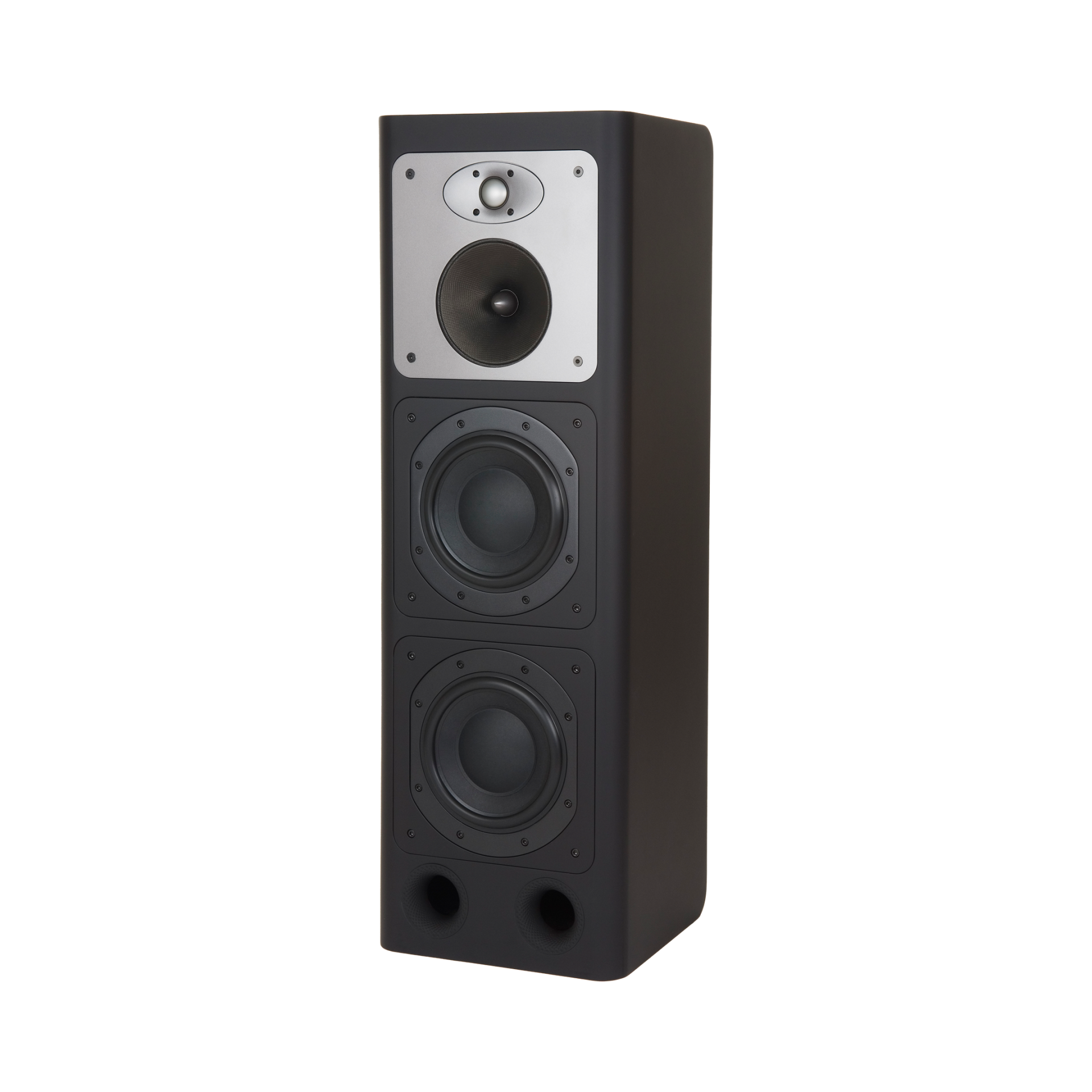

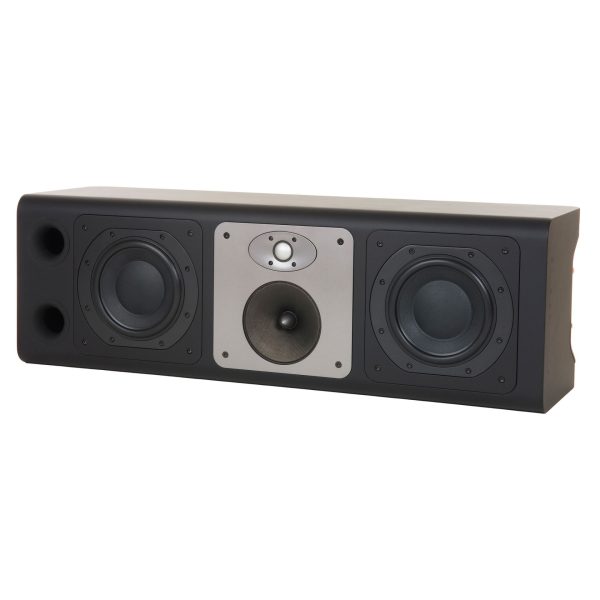

fidelity for cinema and music playback. Its unique modular baffle
design allows for it to be used as a LCR speaker in either vertical
or horizontal positions.

Description

3-way open-box system

Technical features

Nautilus™ spiral tube-loaded tweeter
Aramid fibre FST™ mid-range Paper/Aramid bass cone

Driver unit

• 1x Ø32mm (1¼ in) Aluminium dome
  with Nautilus™ spiral tube-loaded
  high-frequency
• 1x Ø150mm (6 in) Aramid fiber cone
  FST™ midrange
• 2x ø200mm (8 in) Paper / Aramid
  fiber bass cone

Detailed Specifications

• Frequency range:-6dB at 31Hz to 45kHz
• Frequency response :39Hz – 24kHz ±3dB
  (on reference axis)
• Sensitivity (2.83V, 1m):91dB
• Nominal impedance:8Ω (minimum 3Ω)
• Crossover frequencies:400Hz, 4.5kHz
• Recommended                   :    50W – 500W
  amplifier power (into 8Ω
  on unclipped programme)
• Max. recommended :0.1Ω
  cable impedance

• Dimensions

Harmonic distortion(2nd and 3rd harmonics (90dB, 1m)

• <1% 80Hz – 20kHz
• <0.5% 200Hz – 15kHz

Dispersion within 2dB of reference response

• Left & Right speakers:H: over 60º arc V: over 20º arc
• Centre speakers:H: over 40º arc V: over 20º arc

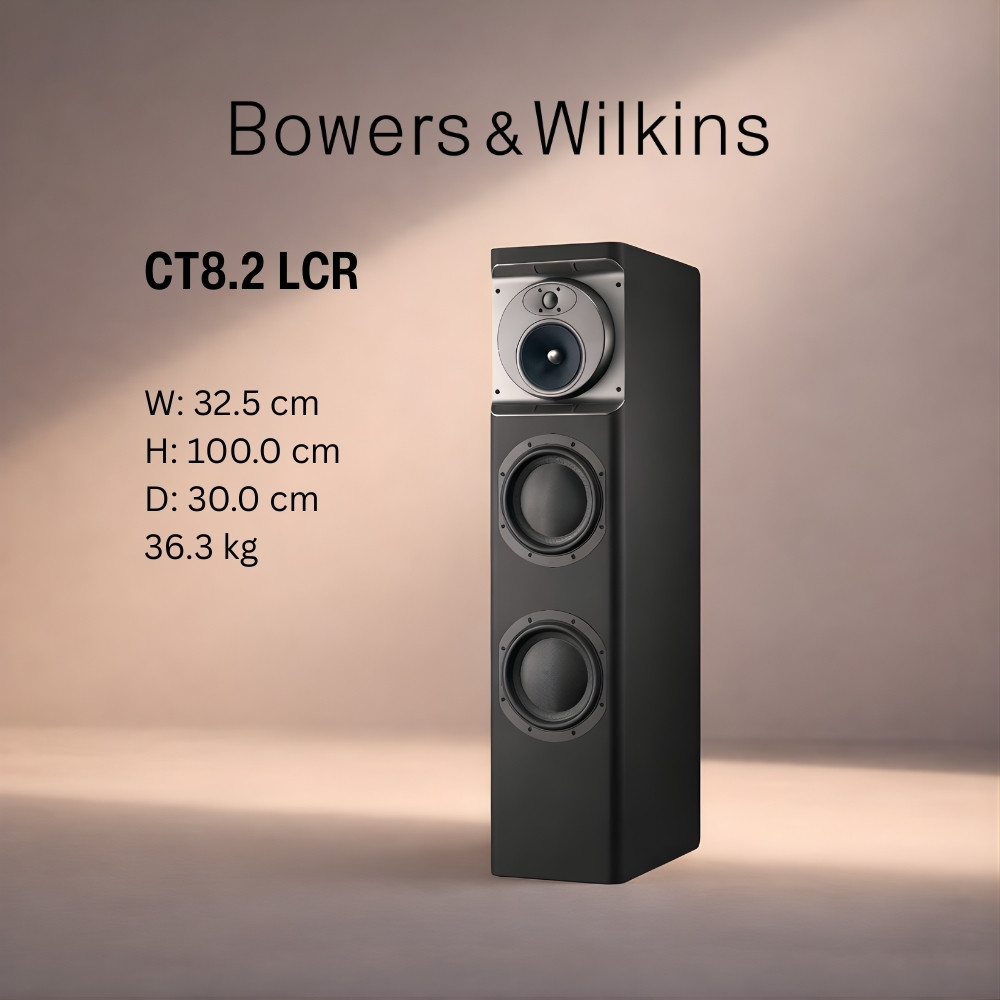

Dimensions

• Height: 1,000mm (39.4 in)
• Width: 325mm (12.8 in)
• Depth: 300mm (11.8 in)

Net weight:36.3kg (80 Ib)

Finishes

Cabinet: Black painted
