Description

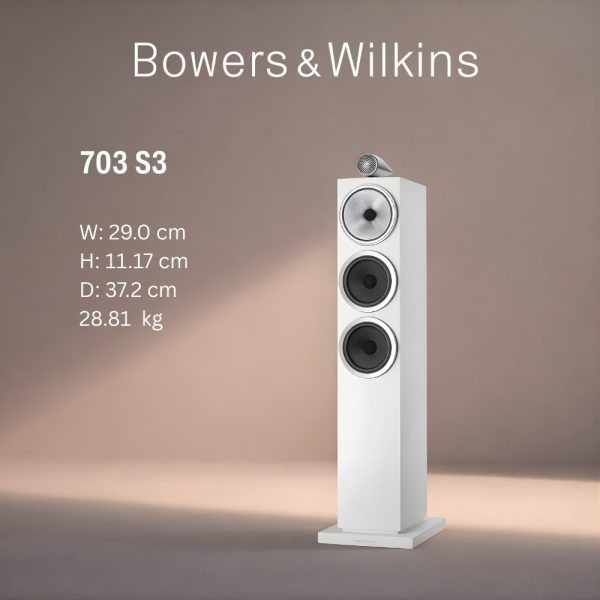

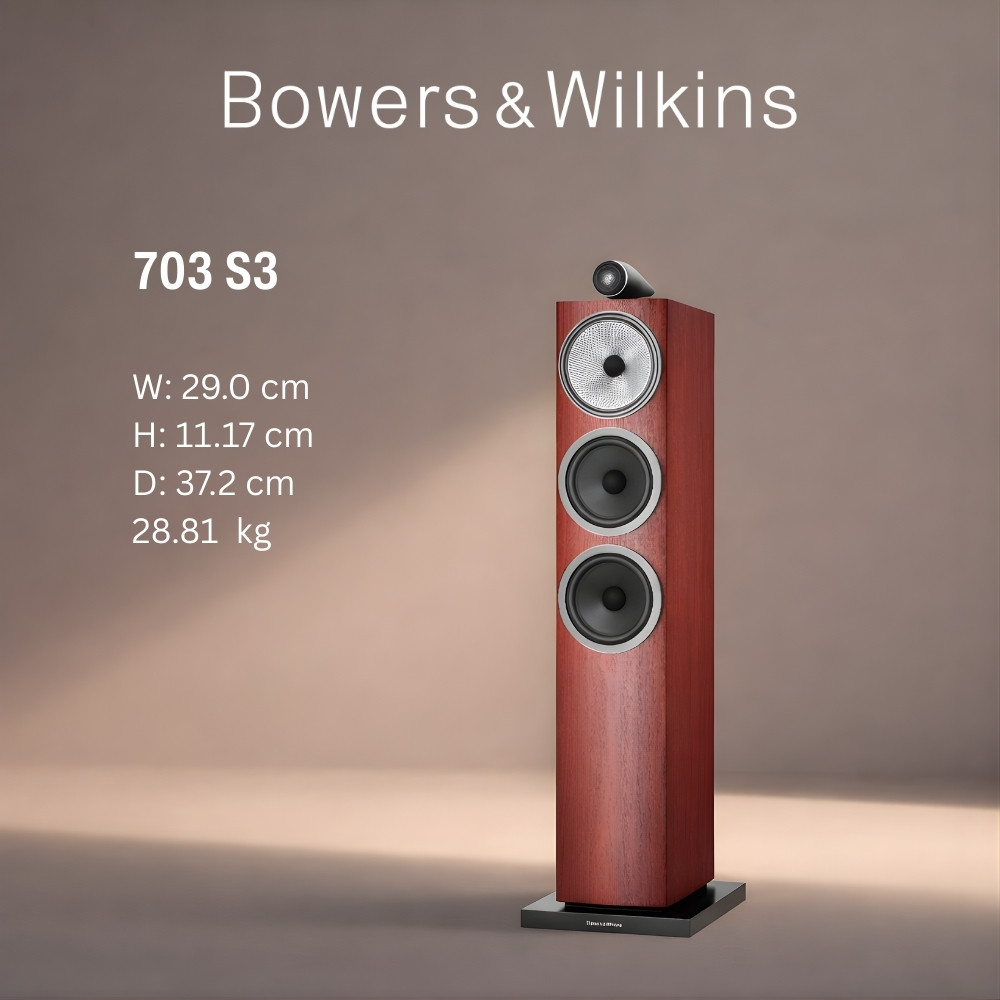

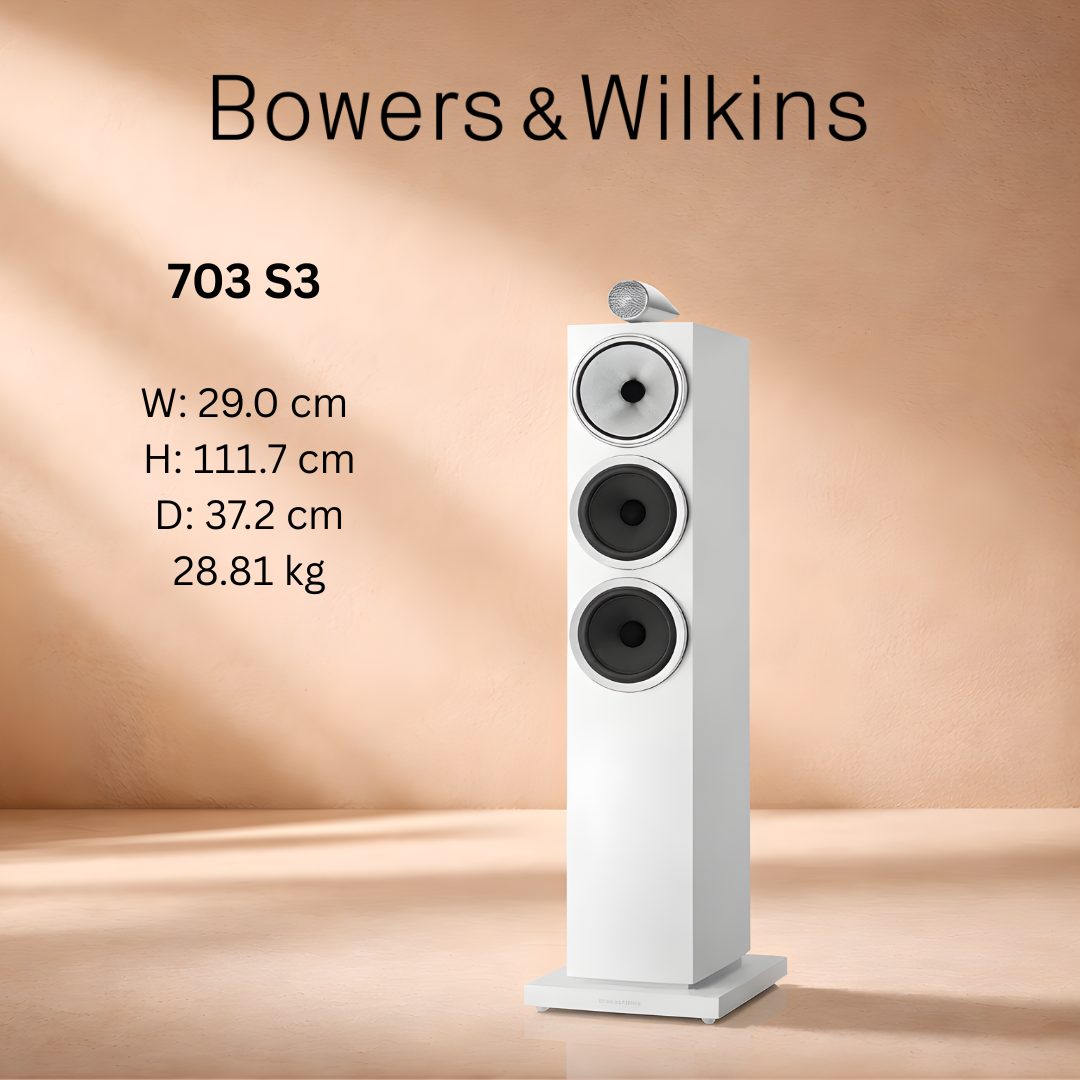

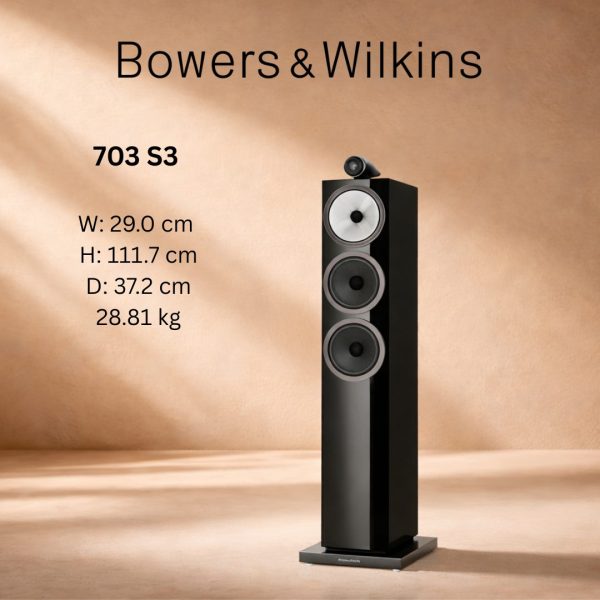

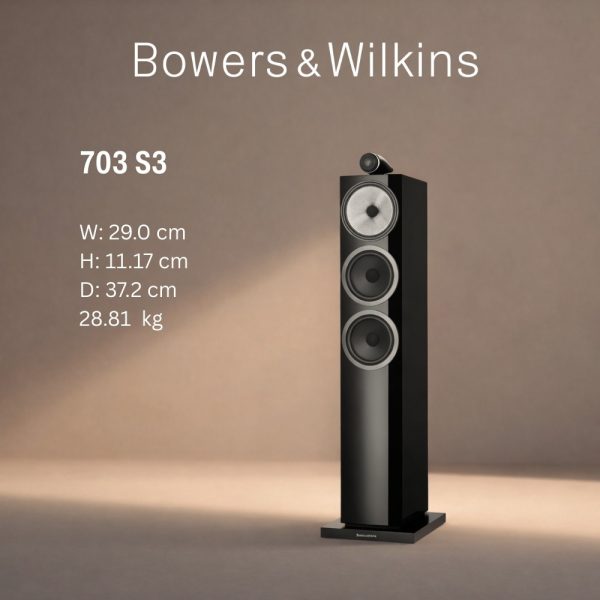

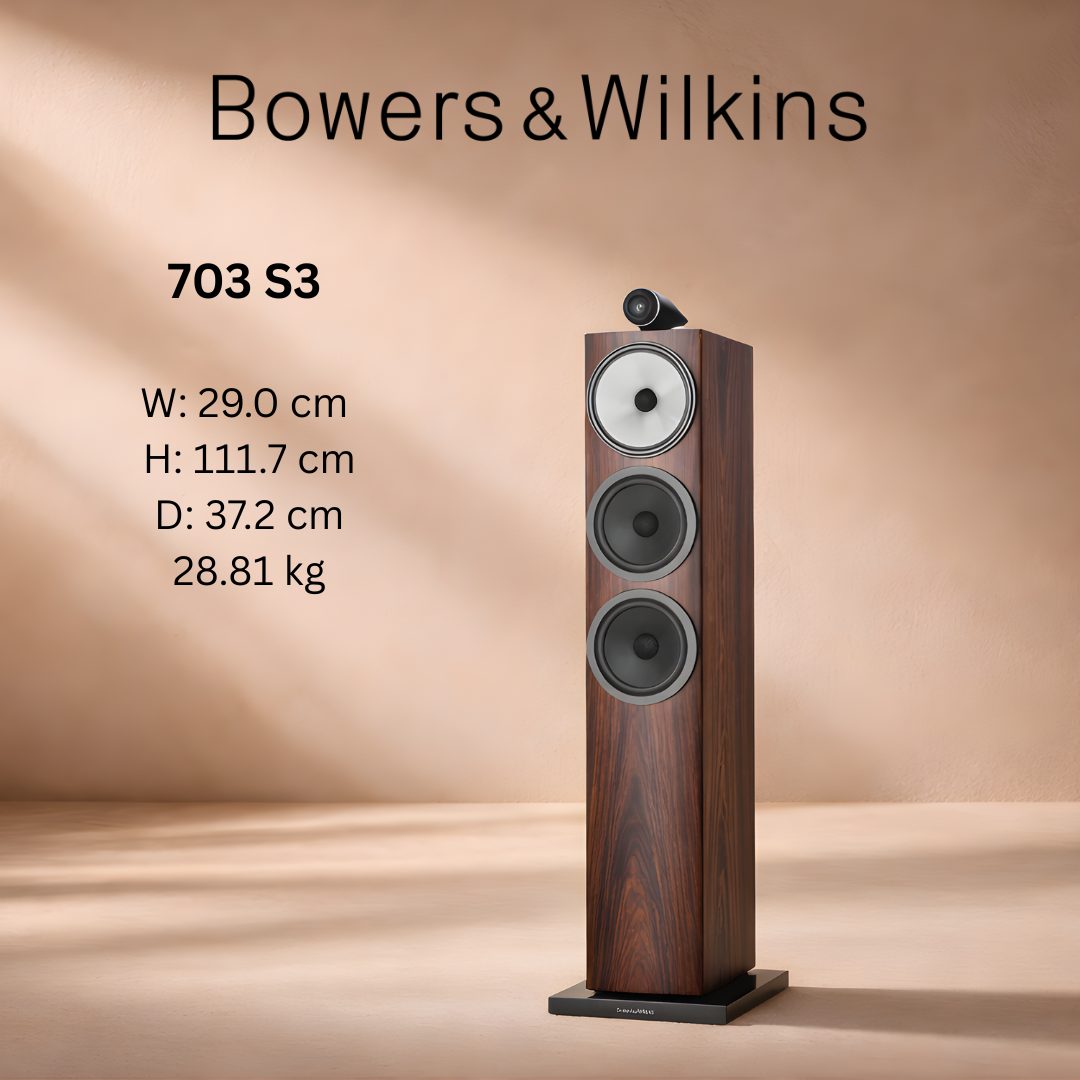

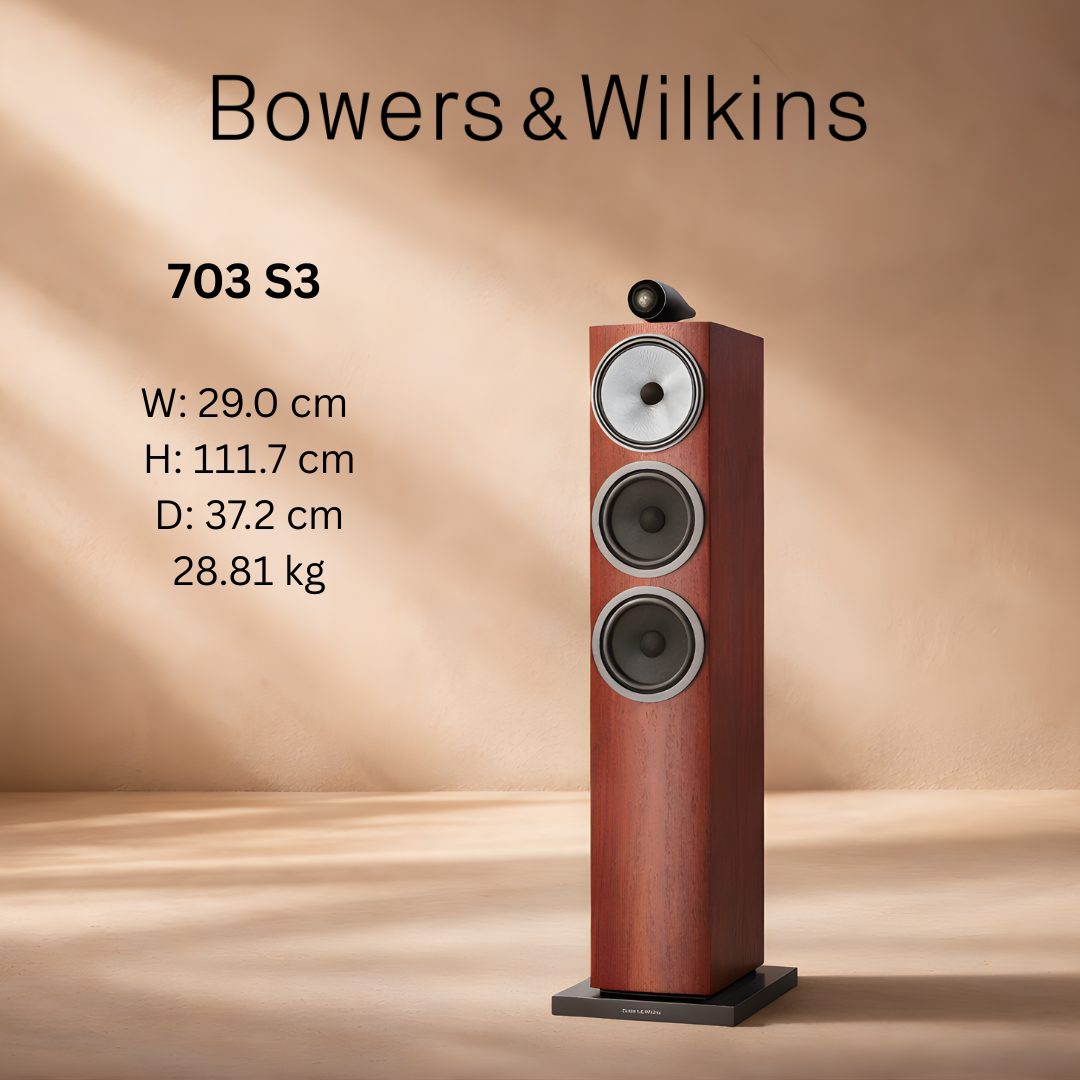

703 S3

The new 703 S3 now features our iconic Tweeter-on-Top configuration for the first time, alongside a decoupled FST™ Continuum cone midrange driver – enhanced by the addition of our revolutionary new Biomimetic Suspension – and twin Aerofoil Profile bass drivers.

Room-filling realism

Its new Tweeter-on-Top configuration and the revolutionary Biomimetic Suspension in its decoupled midrange drive unit combine to raise the 703 S3 to all-new heights of performance.

A house for high
frequencies

The 700 Series features the latest generation of our iconic Solid Body Tweeter-on-Top housing. Its new, more elongated form incorporates a longer tube-loading system to produce an even more free and open sound with high frequencies. The carefully decoupled housing is milled from a single solid block of aluminum to better resist resonance.

Sharper detail

Carbon Dome tweeters are purpose-built for the 700 Series. Delivering a dramatic improvement on the aluminum double dome tweeter, they raise the breakup threshold to 47kHz, for pinpoint imaging accuracy and detail.

Truly amazing sound

Thanks to its composite construction, the Continuum™ cone avoids the abrupt transitions in behavior that can impair the performance of a conventional drive unit. The result is a more open, neutral performance that delivers voices and instruments with precision and transparency

Clean and clear

Every three-way loudspeaker in the new 700 Series has a dedicated midrange cone using four key Bowers & Wilkins technologies: the Continuum cone, FST™, Biomimetic Suspension and midrange decoupling, the latter ensuring minimal interference from the operation of the loudspeaker’s bass drivers.

A triumph of science

Developed using advanced computer modelling techniques, the Aerofoil™ Profile bass cone has variable thickness, providing stiffness and rigidity where it’s needed most. The result: deep and dynamic bass.

SPECIFICATION

Dimensions

Height: 1010mm (39.8 in) cabinet only,1117mm (44.0 in) including tweeter and plinth
Width: 192mm (7.6 in) cabinet only,290mm (11.4 in) including plinth
Depth: 316mm (12.4 in) cabinet only,353mm (13.9 in) including grille and terminals
372mm (14.6 in) including plinth

Net weight

28.81kg (63.5 lb)

Technical details

Decoupled Carbon Dome tweeter

Solid Body Tweeter-on-Top

Continuum™ cone FST™ midrange
Decoupled midrange
Aerofoil™ Profile bass cones
Flowport™

Max recommended cable impedance  0.1Ω

Description  3-way vented-box system

Drive units

1x ø25mm (1 in) Decoupled Carbon Dome high-frequency
1x ø150mm (6 in) Continuum cone FST midrange

2x ø165mm (6.5 in) Aerofoil Profile bass

Frequency range    30Hz to 33kHz

Frequency response    46Hz – 28kHz ±3dB

Sensitivity  90dB spl (2.83Vrms, 1m)

Recommended amplifier power

30W – 200W into 8Ω on unclipped programme
