Description

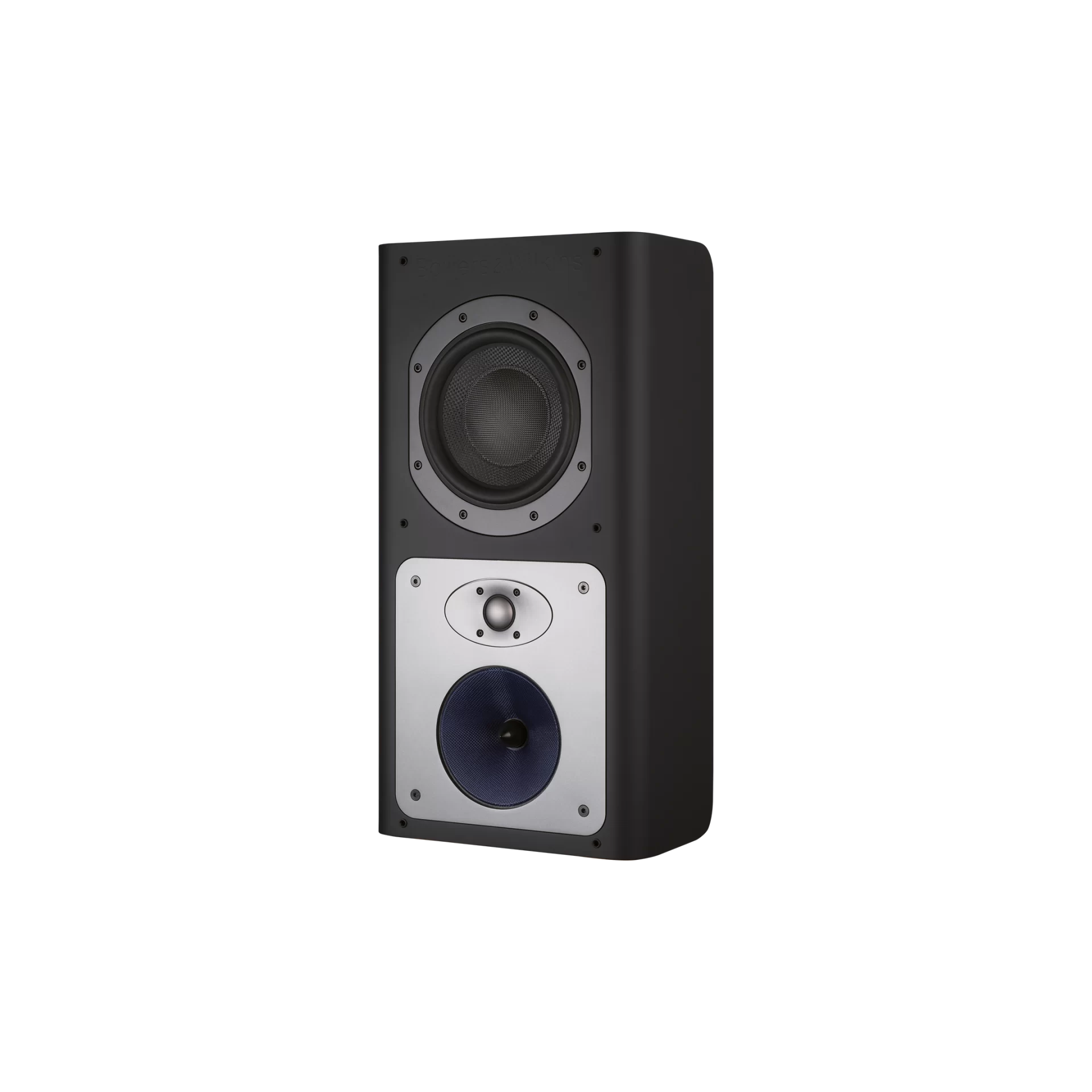

Bowers & Wilkins CT8.4 LCRS

An addition to our top-of-the-range Custom Theatre 800 Series, which
brings the same legendary technology used in Bowers & Wilkins’ 800 Series
of stand-alone speakers to your home theatre set-up. The CT8.4 LCRS is
a smaller, more compact vertical surround sound speaker that generates
exactly the same authentically three-dimensional listening experience. The
CT8.4 LCRS also packs enough power to act as a stand-alone loudspeaker
positioned front, side and rear within a complete custom theatre system.

Description

3-way closed-box system

Technical features

Nautilus™ spiral tube-loaded tweeter
Aramid fibre FST™ mid-range Carbon Aerofoil™ bass cone

Driver unit

• 1x Ø32mm (1¼ in) Aluminium dome
  with Nautilus™ spiral tube-loaded
  high-frequency
• 1x Ø150mm (6 in) Aramid fiber cone
  FST™ midrange
• 1x ø200mm (8 in) Carbon Aerofoil™ bass cone

Detailed Specifications

• Frequency range:-6dB at 39Hz to 40kHz
• Frequency response :49Hz – 24kHz ±3dB on reference axis
  (on reference axis)
• Sensitivity (2.83V, 1m):88dB
• Nominal impedance:8Ω (minimum 3Ω)
• Crossover frequencies:380Hz, 4kHz
• Recommended                   :    50W – 500W
  amplifier power (into 8Ω
  on unclipped programme)
• Max. recommended :0.1Ω
  cable impedance

• Dimensions

Harmonic distortion(2nd and 3rd harmonics (90dB, 1m)

• <1% 80Hz – 20kHz
• <0.5% 200Hz – 15kHz

Dispersion within 2dB of reference response

• Left & Right speakers:H: over 60º arc V: over 20º arc
• Centre speakers:H: over 40º arc V: over 20º arc

Dimensions

• Height:630mm (24.8 in
• Width: 325mm (12.8 in)
• Depth: 185mm (7.3 in)

Net weight:21.0kg (46.3 Ib)

Finishes

Cabinet: Black painted
