Description

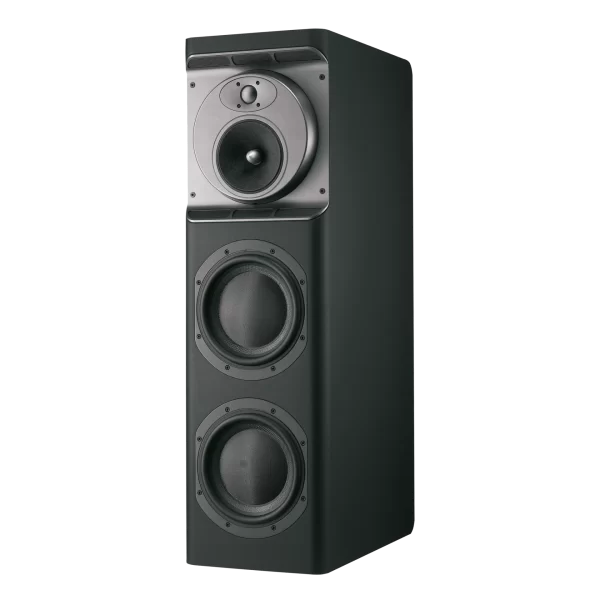

Bowers & Wilkins CT8 LR

Stationed to the left and right of the screen are two upright speakers.

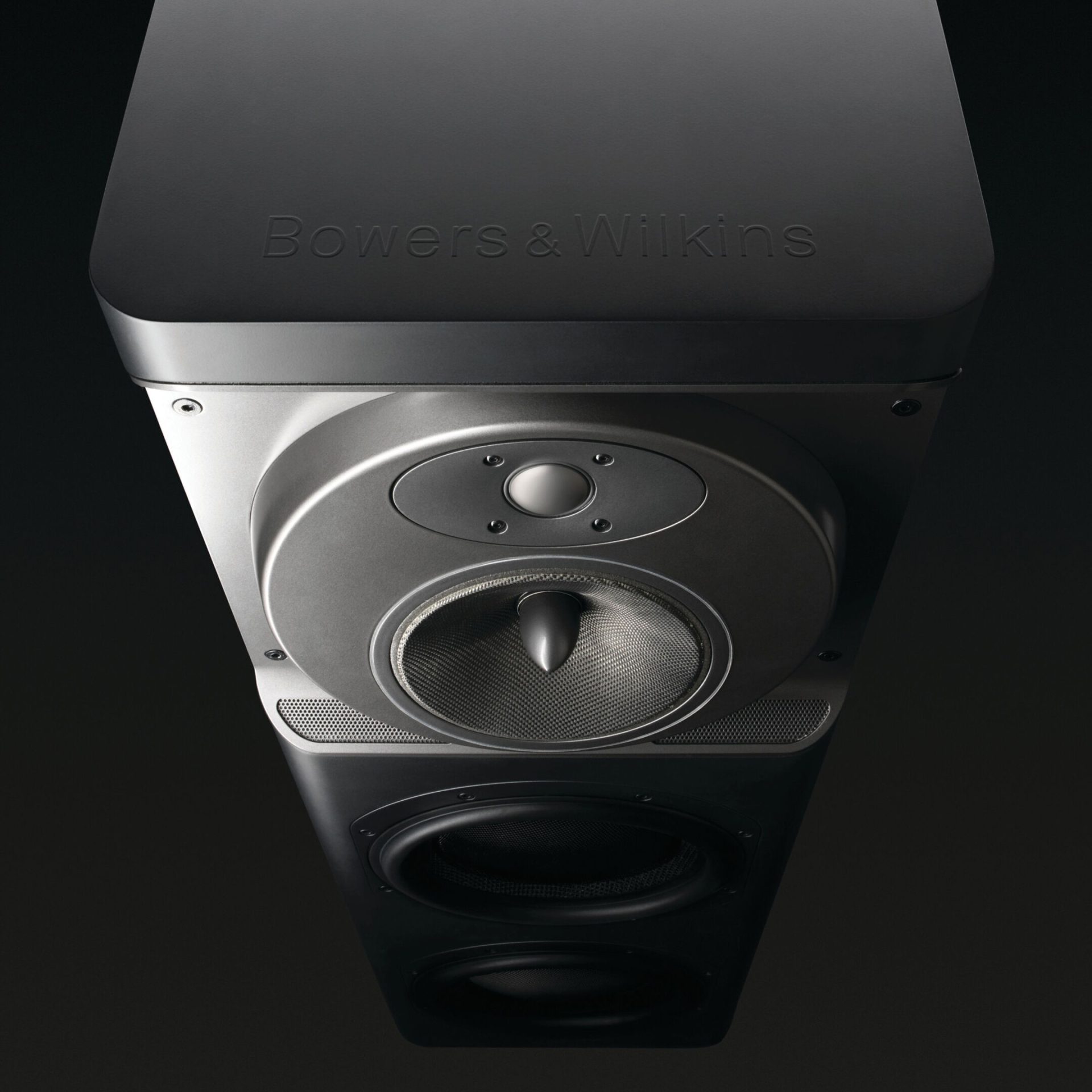

The CT8 LR features a spherical midrange/tweeter head that can be tilted
towards the listener to retain a focused delivery, plus twin 10” bass units.

Description

3-way closed-box system

Technical features

Nautilus™ spiral tube-loaded tweeter
Aramid fibre FST™ mid-range
Carbon Aerofoil™ bass cone
Matrix cabinet
Active bass crossover

Driver unit

• 1x Ø32mm (1¼ in) Aluminium dome
  with Nautilus™ spiral tube-loaded
  high-frequency
• 1x Ø150mm (6 in) Aramid fiber cone
  FST™ midrange
• 2x Ø250mm (10 in) Carbon Aerofoil™
  bass cone

Detailed Specifications

• Frequency range:-6dB at 23Hz to 40kHz
• Frequency response :29Hz – 24kHz +/-3dB
  (on reference axis)
• Dispersion(within 2dB of reference response ):Horizontal: over 60° arc
  Vertical: over 10° arc
• Sensitivity (2.83V, 1m):93dB
• Harmonic distortion(2nd and 3rd harmonics (90dB, 1m):

<1% 45Hz – 20kHz
<0.5% 55hZ – 20kHz

• Nominal impedance:8Ω (minimum 4Ω)
• Crossover frequencies:300Hz, 4kHz
• Recommended                  :    500W – 1,000W
  amplifier power (into 8Ω
  on unclipped programme)
• Max. recommended :0.1Ω
  cable impedance

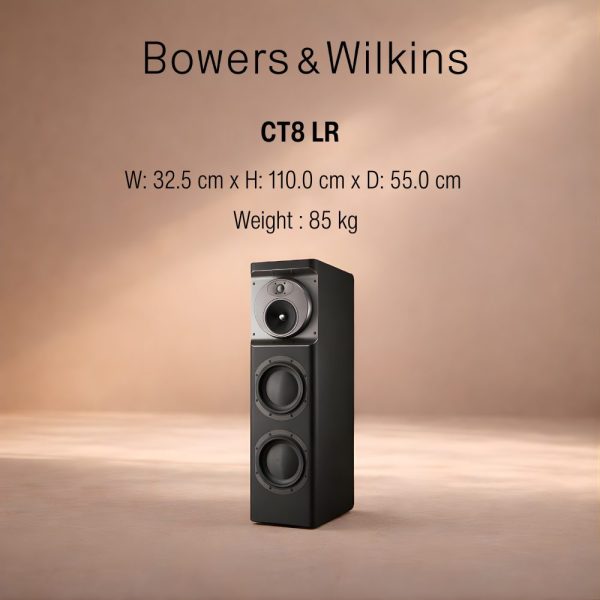

Dimensions

• Height: 1,100mm (43.3 in)
• Width: 325mm (12.8 in)
• Depth: 550mm (21.65 in)

Net weight:85kg (187 lb)

Finishes

Cabinet: Black painted
