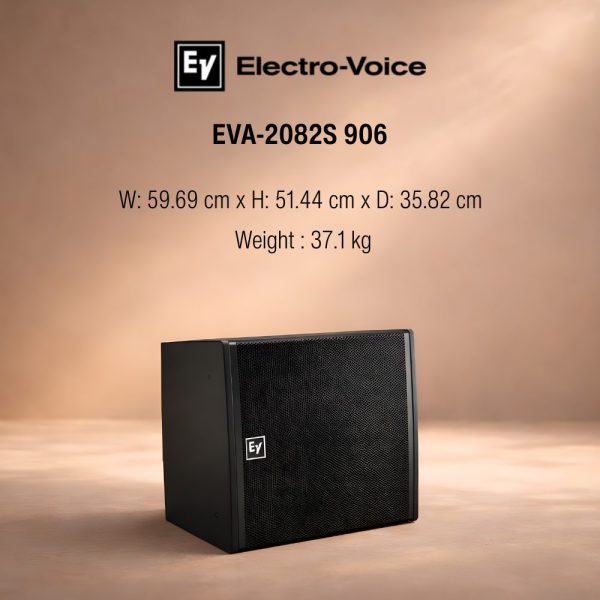

Electro Voice EVA-2082S 906 Dual‑element 90°x6° full‑range line‑array module
- Description
- Specification
Description
- High performance, cost-effective
- Ideal for fixed-installation line arrays
- Two array elements in each module
- Two 8-inch low-distortion woofers
- Four 1.25-inch titanium diaphragm HF drivers
- Advanced Hydra(R) plane wave generators
- High sensitivity (104 dB) for high output
- Super efficient: drive up to 8 boxes from a single amp channel
- Sixth-order passive crossover with HF protection
- Integrated hidden suspension hardware
- Choice of three finishes: indoor, PI and fiberglass
- Use PREVIEW Loudspeaker Software to simulate and validate designs
Specification
Frequency Range (-10 dB) 45 – 20000kHz
Suspension EVA Grid (Sold Separately)
Minimum Impedance 12Ω
Specifications
Nominal Impedance (Passive) 16Ω
HF Transducer (4) DH2005, 1.25 In (32mm) Diaphragm Compression Driver
Speaker Type Full-Range, Line-array
Frequency Response (-3 dB)¹ 60 – 19000Hz
Max. SPL/1m (calc)² 135dB
Coverage (Nominal -6 dB) H 90°
Coverage (Nominal -6 dB) V 6°
LF Transducer (2) EVS2008, 8 In (203mm) Driver
System Power Handling (Continuous/Program/Peak) 350, 700, 1400Watts
Crossover Frequency 1740Hz
Enclosure Material Birch plywood
Grille 16 GA Galvanneal, Powder-coated (PI Version – Stainless Steel with Hydrophobic Cloth
Sensitivity 1 W/1 m 104dB
Height 20.25″ (514.4mm)
Width 23.5″ (596.9mm)
Recommended High-Pass Frequency 50Hz
Depth 14.1″ (358.2mm)
Weight Net 81.79lbs (37.1kg)
Input Connections Phoenix/Euroblock style screw terminals
Passive Power Handling 1400W peak
