Description

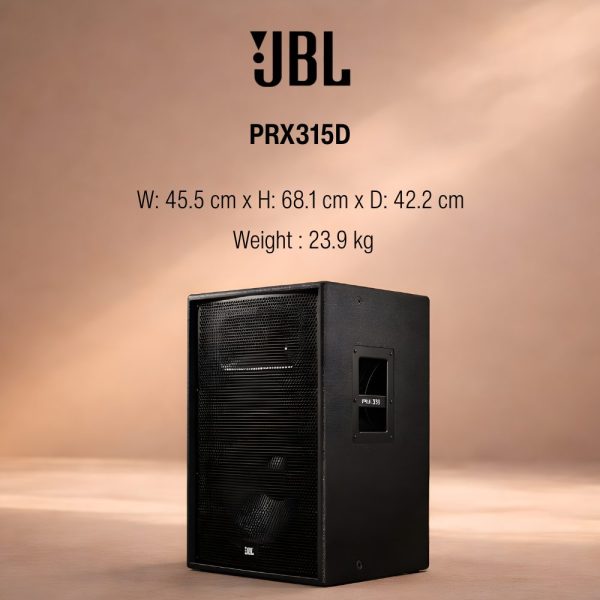

PRX315D is a 15-inch portable two-way speaker system designed for live performance, music playback or reinforcement of speech.
- Premium 15-inch low frequency driver with a 2 ½ inch diameter edge-wound ribbon voice coil for solid and extended bass, high efficiency and power handling
- JBL 2412 1-inch ferro-fluid cooled compression driver with titanium diaphragm delivers clean and warm high notes and uncompromised reliability
- JBL SonicGuard™ technology constantly protects the high frequency driver from excessive power
- Precision-crafted crossover feeds drivers with clear-cut frequencies and delivers coherent summation in the crossover region
- Progressive Transition™ waveguide provides superior coverage control, reduced distortion and smoother frequency response
- Rugged enclosure made from 15mm MDF (Medium Density Fiberboard)
- 36-mm dual angle pole-mounting socket
- Dent-resistant grille protects the internal from damage on the move or during the show
- For live performance, music playback or reinforcement of speech
SPECIFICATIONS
System Type : 15” 2-way speaker
Sensitivity (1w@1m) : 98 dB SPL
Nominal impedance : 8 Oh
Power Capacity : 250 watts
Peak Power Capacity : 1000 watts
Maximum SPL : 128 dB
Nominal Dispersion : 90° × 50°
Crossover frequency : 1.6 kHz
Net Weight : 23.9 kg (52.7 lbs)
Shipping weight : 29.1 kg (64.2 lbs)
Low-frequency drive unit : JBL M115-8A
Frequency Range (-10 dB) : 38 Hz – 16 kHz
Net cover : 18-gauge, powder-coated steel
FREQUENCY RESPONSE (±3dB) : 50 Hz – 12.5 kHz
Recommended Amplifier Power : 250 – 500 watts @ 8Ω
Input Connector : Parallel Neutrik Speakon® NL-4 (×1)；1/4” TS phone jack (×1);
Dimensions (H × W × D) : 681 mm × 455 mm × 422 mm(26.8 in × 17.9 in × 16.6 in)
Mounting & Suspension : 36 mm, dual-angle pole-mount socket; 12×M10 suspension points
HF driver : JBL 2412 1” exit compression driver mounted on Progressive TransitionTM Waveguide
ENCLOSURE CONSTRUCTION : 15 mm (0.6 in) MDF (Medium Density Fiberboard) with glued and mechanically fastened joint detail; black painting.
