General

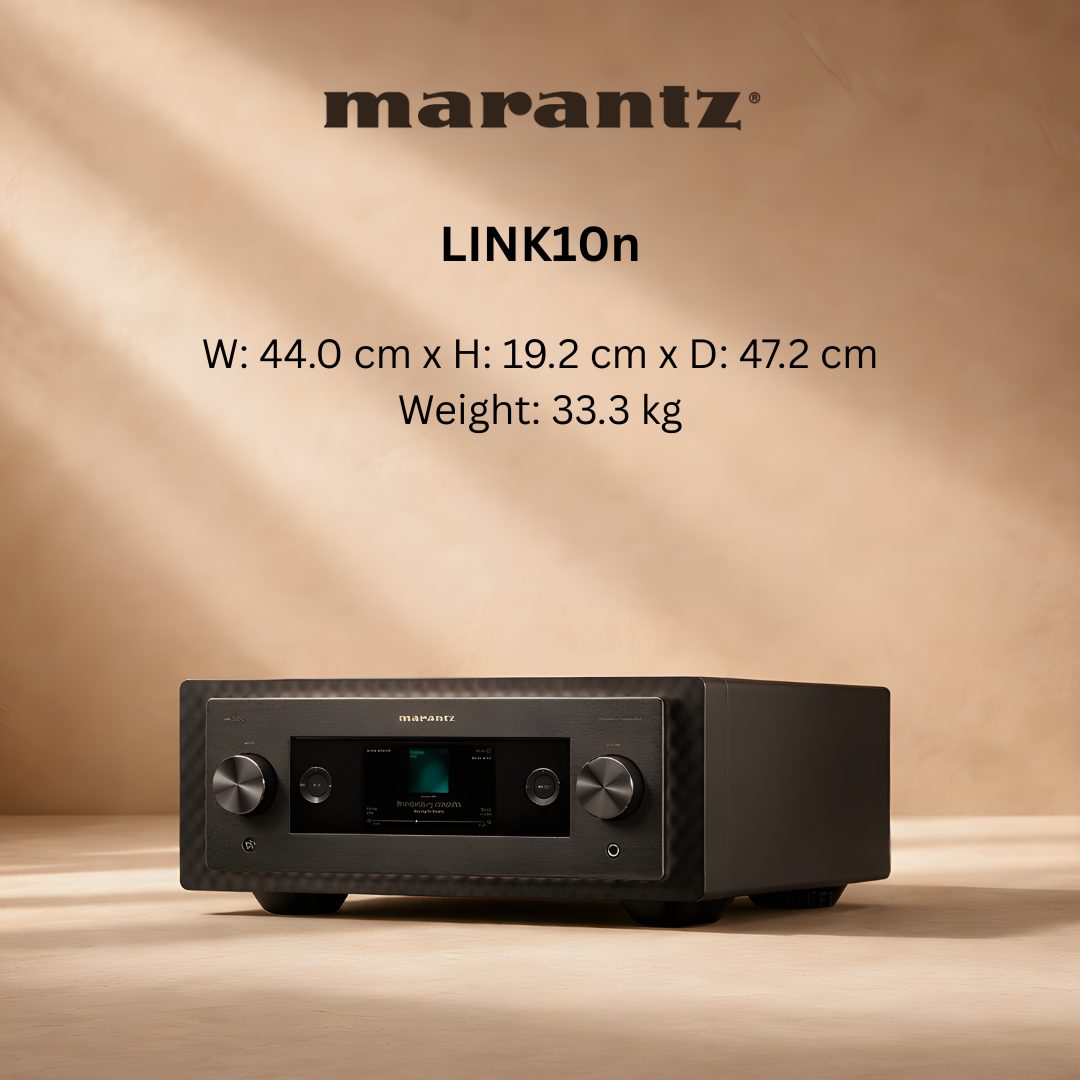

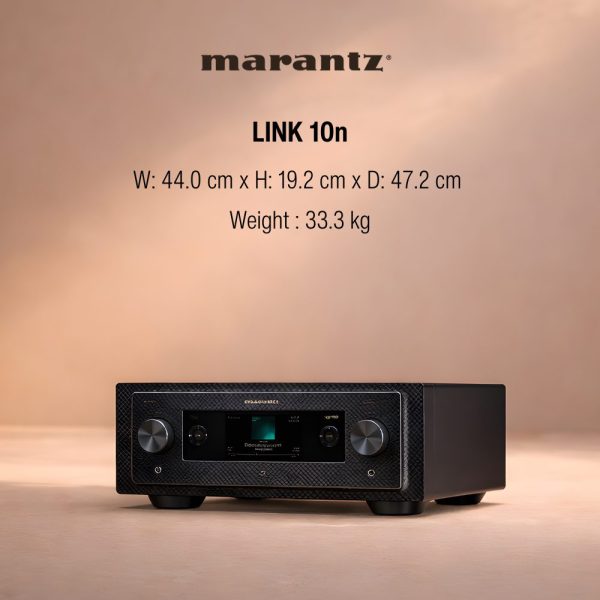

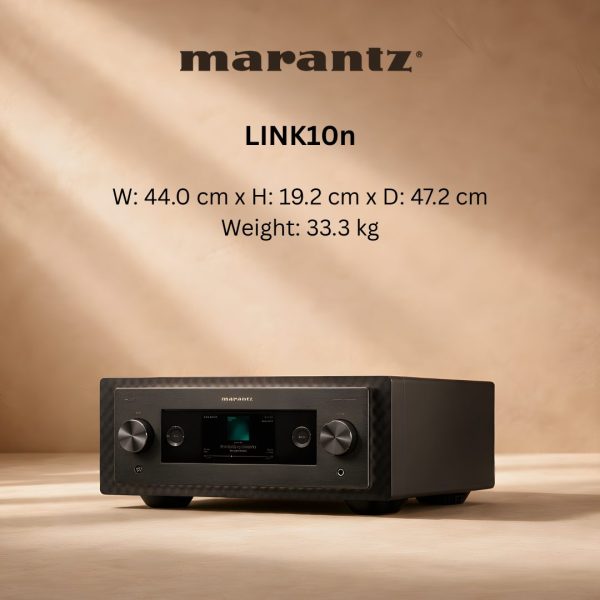

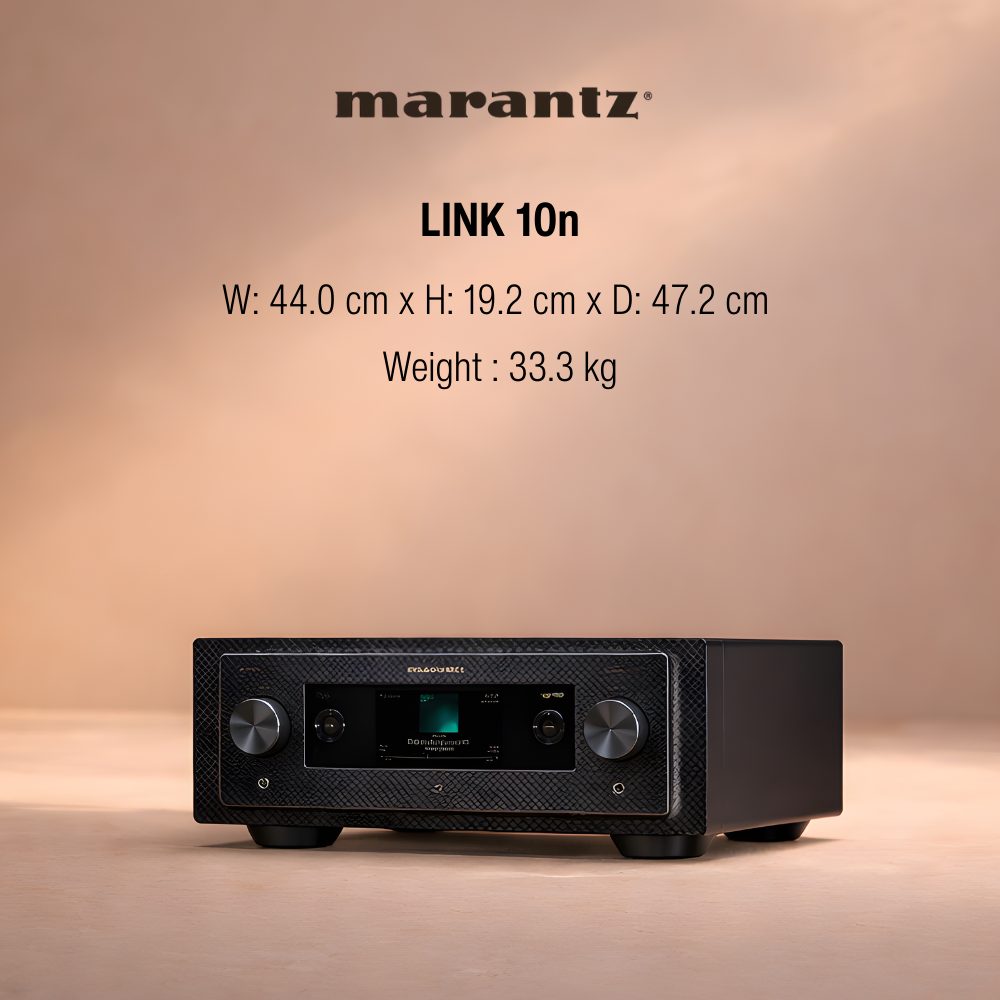

Unit (W × H × D mm) 440 × 192 × 472 (with antenna)
Cabinet Size 440 × 192 × 422
Net weight 33.3kg
Packaging Dimensions (W × H × D mm) 600 × 379 × 540
Packaging gross weight 38.7kg
Carton Color 1 Color (Material color: Brown
Printing: Black)

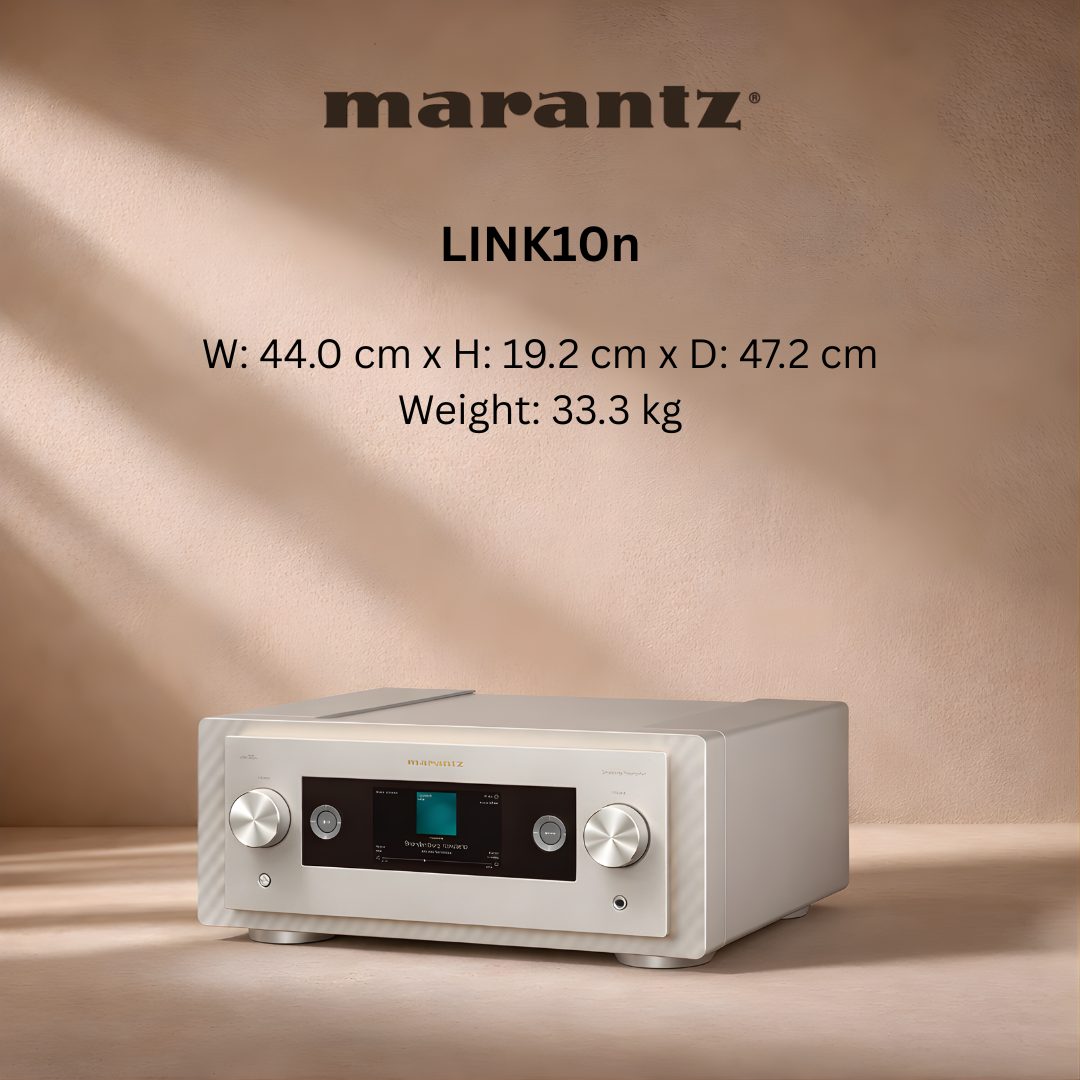

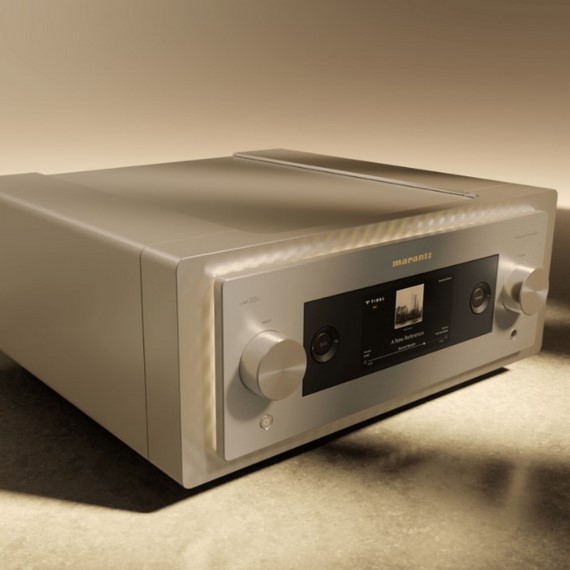

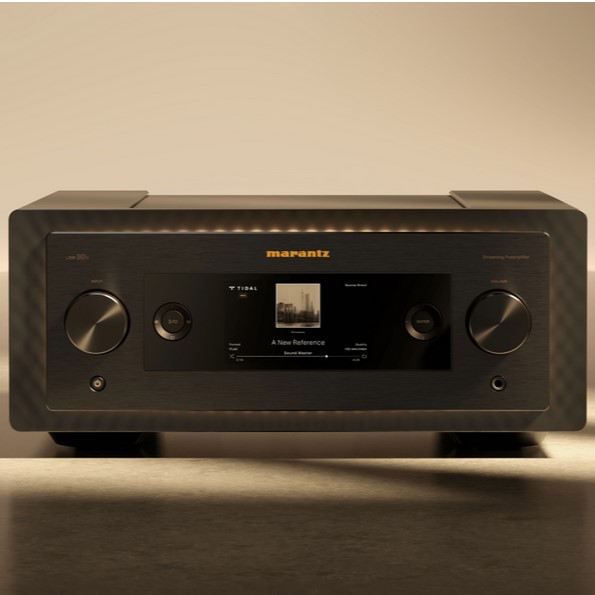

Panel Color Black / Marantz Champagne
Front (Center) Panel Aluminum
Back-shell Aluminum
Front panel illumination Yes (All sides, Dimmer)
Side cover Aluminum
(Thickness: Max 15.8mm)
Top cover Aluminum (Thickness: 12mm)
Top cover (Centor) ventilation hole material Copper-plated
Interior ilumination Copper-plated
Rear Panel Triple layer Copper-plated
Chassis Material Solid aluminum (Bearing construction)
Bottom Layer / Bottom plate Solid aluminum (Bearing construction)
Volume Knob Solid aluminum (Bearing construction)
Input Selector Solid aluminum (Bearing construction)
Foot Solid aluminum with Copper

Audio Feature
Output Circuit New HDAM
Power Transformer Toroidal
Pre Amplifier Circuit New HDAM High Grade
Full balance
Volume Electric (MUSES 72323)
Variable gain
Bass / Treble / Mid / Balance Control Yes / Yes / No / Yes
Type of Tone Control Electric
Headphone Circuit Discrete
H/P Amp Gain Setting Yes (Low / Mid / High)
H/P On.Off Setting H/P Off automatically, when in use
DAC Circuit New MMM-Conversion
Dither MMM-Stream
(Dither 1, 2, Off)
Noise Shaper MMM-Stream
(Balanced, Natural, Dynamic Music,
Dymanic Voice)
Digital Filter MMM-Stream
Filter 1, 2 Selectable
Jitter Reducer Yes
DAC Master Clock Design (No Support for Network Playback) Yes
Asynchronous mode (for USB-B input) Yes
Isolator (for USB-B input) Yes (Complete Isolation System Duo)

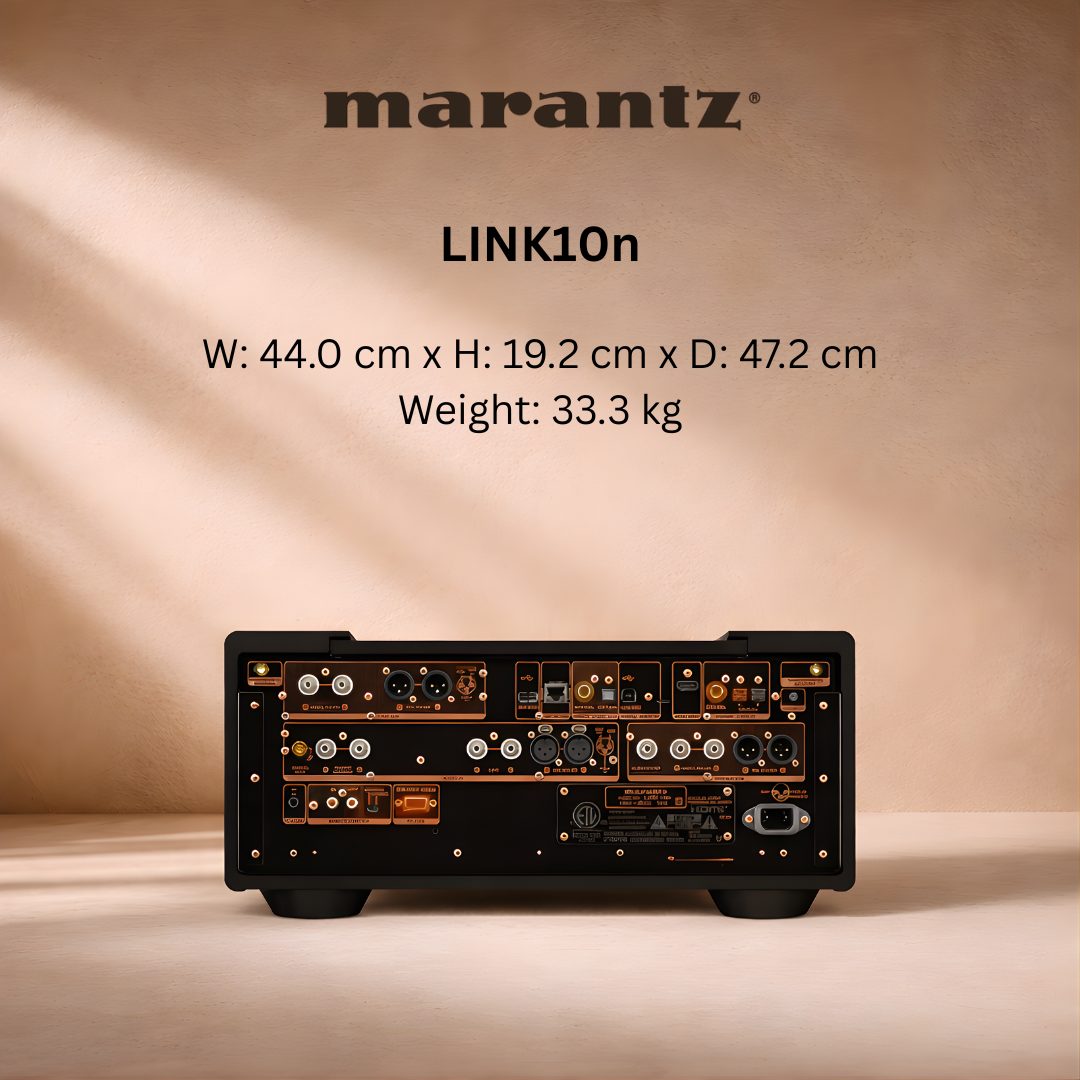

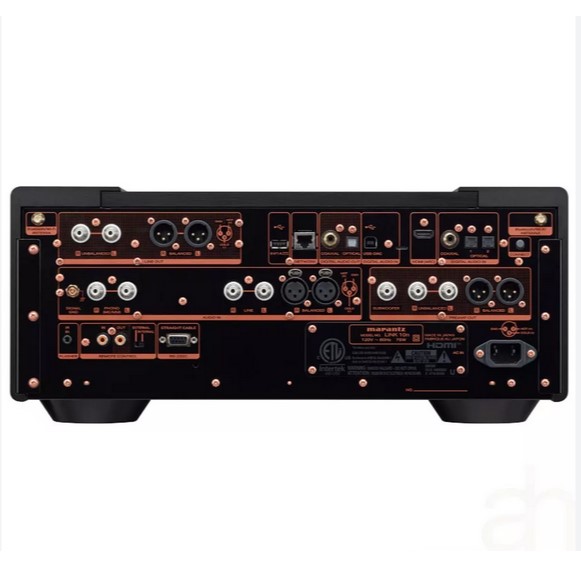

Fixed Analog Output (RCA) Cinch × 1
Thick nickel plated independent terminals
Pre / Variable Audio Output (RCA) Cinch × 1
Thick nickel plated independent terminals
Fixed Balanced XLR Output Yes (1 Pair)
Pre/ Variable Balanced XLR Output Yes (1 Pair)
RCA Input Cinch × 1
Thick nickel plated independent terminals
Balanced XLR Input Yes (1 Pair)
Phono input Yes (MM / MC)
Marantz Musical Premium Phono EQ
w/ Selectable MC impedance (3 position)
Thick nickel plated independent terminals
Optical input / output (Maximum Support) 2 / 1 (on/off switchable)
44.1 kHz – 192 kHz
Coaxial input / output (Maximum Support) 1 / 1 (on/off switchable)
44.1 kHz – 192 kHz
HDMI input / output No / Yes (ARC)
Headphone Output Yes (Φ6.3 ×1)
Subwoofer Yes with LP filter adjustable

Audio
Frequency Response PCM 2Hz–50kHz (-3dB)
Harmonic distortion PCM 0.0004%
S/N PCM 0.0004%
Dyanmic range PCM 0.0004%
Line Output Level UNBALANCED : 2.0Vrms
BALANCED : 4.0Vrms
Headphone Output Level 130mW / 32 ohms
Frequency Response (analog input) 5 Hz–100 kHz (+0dB/-3 dB)
Harmonic distortion (analog input) 0.001% (20Hz–20kHz)
S/N PHONO (MC) : 76dB
PHONO (MM) : 88dB
BALANCED : 122dB
LINE : 122dB
Phono Input sensitivity MM : 8mV
MC : 80mV
Phono Input impedance MC Low : 32 ohms
MC Mid : 100 ohms
MC High : 390 ohms
MM : 39 kohms
Power Consumption 75W
Less than 0.3W (at Standby)
Less than 2W
(at Network Control On:Bluetooth, Ethernet, Wi-Fi, USB)

Easy to Use
App HEOS app
Remote Controller 10 series universal Remote control
Front Panel Display New HD TFT Color Display
Display Language N: (English, German, French,
Italian, Dutch, Spanish,
Swedish, Polish, Russian)
U: (English, French, Spanish)
K: ( Simplified Chinese,English)
F: (Japanese, English)
Dimmer for Front Display 20 steps
Level meter No
Volume Display 0 –100 / 0.5 step (defalut)
-infinity/-99.5dB – 0dB / 0.5 step
switchable
Voice Assistant Apple Siri
Google Assistant
Control with App via Network Player
(Use Remote Control Bus)
No
External Amp Control with App (Use Remote Control Bus) Yes
Synchronously turn on amplifier and switch the input
(Use Remote Control Bus)
Yes
HDMI CEC Yes
Remote Controller RC004PMND
Battery Yes (AAA ×2)
Power Cord Yes (ALL region : Audio Grade : OFC)
Other Stereo RCA Cable ×1
Remote connector cable ×1
CoA card
