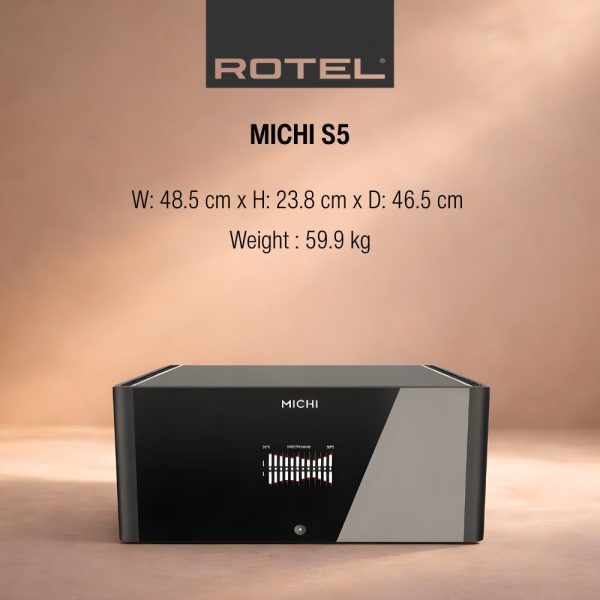

Rotel Michi S5 Stereo Preamplifiers
DIMENSIONS (W × H × D)
485 × 238 × 465mm
19″ × 9.375″ × 18.25″
FRONT PANEL HEIGHT220mm (8.625″)
POWER REQUIREMENTS120V, 60Hz
POWER CONSUMPTION1200W
CONTINUOUS POWER OUTPUT
500W/Ch (8Ω)800W/Ch (4Ω)
TOTAL HARMONIC DISTORTION (THD)<0.008%
FREQUENCY RESPONSE20Hz – 20kHz (+0dB, -0.15dB)10Hz – 100kHz (+0dB, -0.4dB)
S/N RATIO (IHF “A” Weighted)
120dB
GAINUnbalanced (RCA): 28dBBalanced (XLR): 24dB
NET WEIGHT59.9kg (132.1lbs.)
BTU RATING (4Ω, 1/8th power)3450 BTU/h
- Description
Description
The Michi S5 Stereo Amplifier delivers 500 watts per channel into 8 ohms loads with best in class audio performance. The dual monoblock design includes twin, oversized, in-house manufactured toroidal transformers for exceptional bass energy while maintaining control and precision of the finest detail all packaged in an elegant design.
