Description

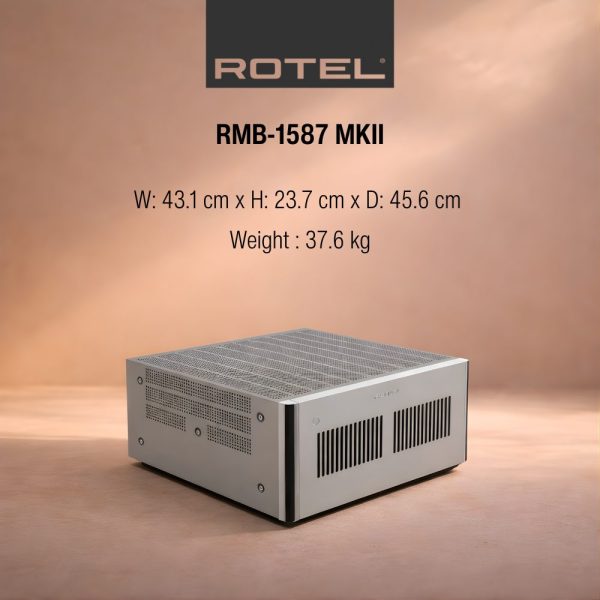

Rotel  RMB-1587MKII 7 channel power amplifier

Rotel’s new RMB-1587MKII 7-channel amplifier furthers our heritage of producing high powered, high current, exceptionally manufactured Class AB amplifiers for multi-channel systems. The RMB-1587MKII delivers 7 channels of Class AB amplification at 155 Watts per channel into 8 ohms and drives 4 ohm speakers with over 250 Watts per channel, all channels driven.

Product highlights:

• 155 watts per channel into 8 ohms (20-20,000 Hz) at 0.03% THD with all seven channels driven
• 4-ohm stable for use with a wide range of speakers
• Class AB design
  • dual custom-made massive toroidal transformers for stable, noise-free performance
  • eight high-efficiency energy storage capacitors provide a ready supply of current
• frequency response: 10-100,000 Hz (+0/-0.3dB)
• signal-to-noise ratio: 111 dB
• four thermostat-controlled, variable-speed ultra-low-noise fans
• rack-mountable with optional hardware (sold separately)
• detachable power cord

7 x 250 Watts

of robust power, 4 Ohms

Class AB amplifier design

Massive power supply
using Dual Toroidal Transformers

High quality slit foil capacitors

Rack ears included

Connections:

• balanced XLR and unbalanced RCA inputs for all seven channels
• 5-way binding post terminals for each speaker
• 3.5mm 12-volt trigger in/out

Dimensions and warranty:

• 17″W x 9-3/8″H x 18″D (5U rack spaces)
• weight: 82.9 lbs.
