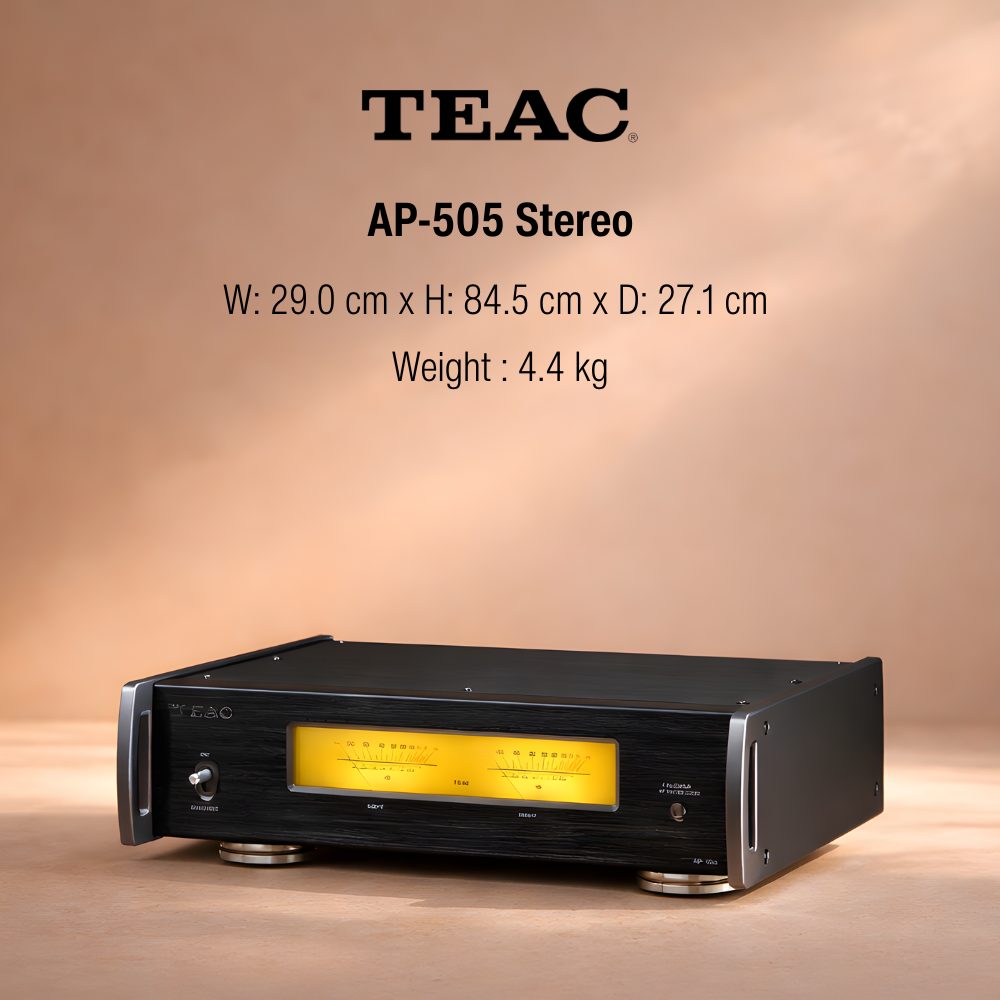

TEAC AP-505 Stereo Power Amplifier
An ultra-compact stereo power amplifier, powered by Hypex Ncore technology,
designed to enable Bi-amping, or use in BTL (Bridge Tied Load/Bridged) mode
- Description
Description
| Amplifier section | |
| Maximum output power | |
| Stereo, Bi-amp modes | 130W + 130W (4Ω, 1kHz, JEITA) 90W + 90W (8Ω, 1kHz, JEITA) |
| BTL (Bridge) mode | 250W (8Ω, 1kHz, JEITA) |
| Rate output over | |
| Stereo, Bi-amp modes | 115W + 115W (4Ω, 1kHz, THD 0.8%) 70W + 70W (8Ω, 1kHz, THD 0.8%) |
| BTL (Bridge) mode | 220W (8Ω, 1kHz, THD 0.8%) |
| Total harmonic distortion | 0.0015% (8Ω, 1kHz, 12.5W, JEITA) |
| Signal-to-Noise ratio | 113dB (8Ω, 1kHz, IHF-A) |
| Frequency response | 10Hz to 50,000Hz (+0dB, –5dB, 8Ω, 1kHz, 1W, JEITA) |
| Dumping factor | 370 or higher, JEITA (20Hz to 20kHz, Output impedance: 22mΩ, 8Ω loaded) |
| Input section | |
| LINE IN (Balanced) | |
| Connector | XLR (2: HOT) × 1 pair |
| Input sensitivity | 1.3V (Output 8Ω, THD 1%) |
| Input impedance | 10kΩ or higher |
| LINE IN (Unbalance) | |
| Connector | RCA Pin (gold-plated) × 1 pair |
| Input sensitivity | 0.66V (Output 8Ω, THD 1%) |
| Input impedance | 10kΩ or higher |
| Speaker outputs | |
| Connector | Screw type × 1 set (gold-plated, AWG8 and Banana-plug compatible) |
| Compatible speaker impedance | |
| Stereo, Bi-amp modes | 4Ω to 16Ω |
| BTL (Bridge) mode | 8Ω to 16Ω |
| Power | AC220 to 240V, 50Hz (UK/Europe) |
| Power consumption | 106W |
| Standby power | 0.1W or less (at Auto power-saving mode) |
| Overall dimensions | 290 × 84.5 × 271 mm / 11.4″ × 3.3″ × 10.7″ (W × H × D) |
| Weight | 4.4kg / 9.7 lbs. |
| Included accessories | Power code, Owner’s manual (incl. Warranty card) |
