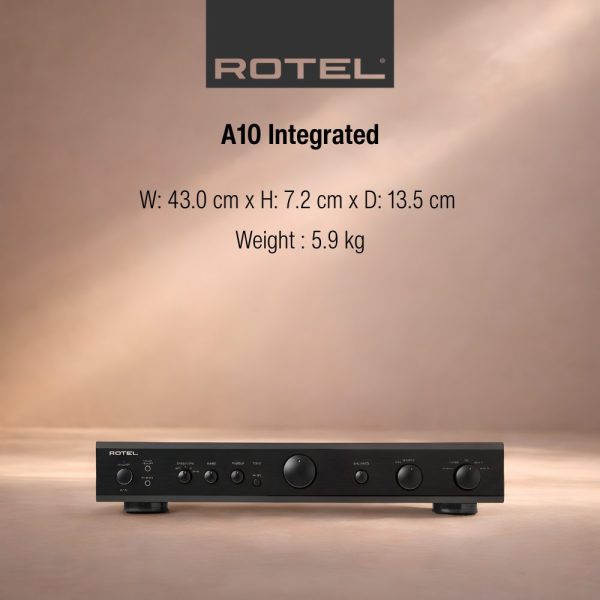

Rotel A10 Integrated Amplifier

The A10 is a 40-watt per channel integrated amplifier that will satisfy the audio purist who doesn’t require high power output or digital streaming capability. Its straightforward operation is refreshing and its performance is a pleasure to listen to.

Description

If you are considering taking your first step into a true hi-fi system or are seeking a small, high quality audio system for another living space, you can’t do better than the A10 integrated amplifier. The A10 is all about maximum performance for the price. Its design strips away added features that increase the overall cost and can detract from your musical enjoyment.

Simple to operate and a pleasure to listen to, the A10 has connectivity for all your listening sources including an analogue media input (3.5mm mini-jack) for iOS devices or other media players, a CD input, a MM phono input in case your taste runs to classic LPs, a Tuner input to listen to your favourite radio stations and two Aux inputs for other analogue source devices.

INTERMODULATION DISTORTION (60Hz:7kHz, 4:1)
<0.03%

DAMPING FACTOR
180

SPEAKER IMPEDANCE
4Ω minimum

INPUT SENSITIVITY
Line Level Inputs: 150mV
Phono Input (MM): 2.5mV

INPUT IMPEDANCE
Line Level Inputs: 24kΩ
Phono Input (MM): 47kΩ

INPUT OVERLOAD
Line Level Inputs: 5V
Phono Input: 180mV

PREOUT LEVEL
1V

OUTPUT IMPEDANCE
470Ω

TONE CONTROLS
±6dB at 100Hz / 10kHz

POWER REQUIREMENTS: 120V, 60Hz

POWER CONSUMPTION: 220W

BTU RATING (4Ω, 1/8th power)311 BTU/h

CONTINUOUS POWER OUTPUT: 40W/Ch (All channels driven, 8Ω)

TOTAL HARMONIC DISTORTION: (20Hz–20kHz) <0.03%

DIMENSIONS (W × H × D): 17″ × 2.9″ × 13.5″

FRONT PANEL HEIGHT: 2.36″

NET WEIGHT: 5.9kg
