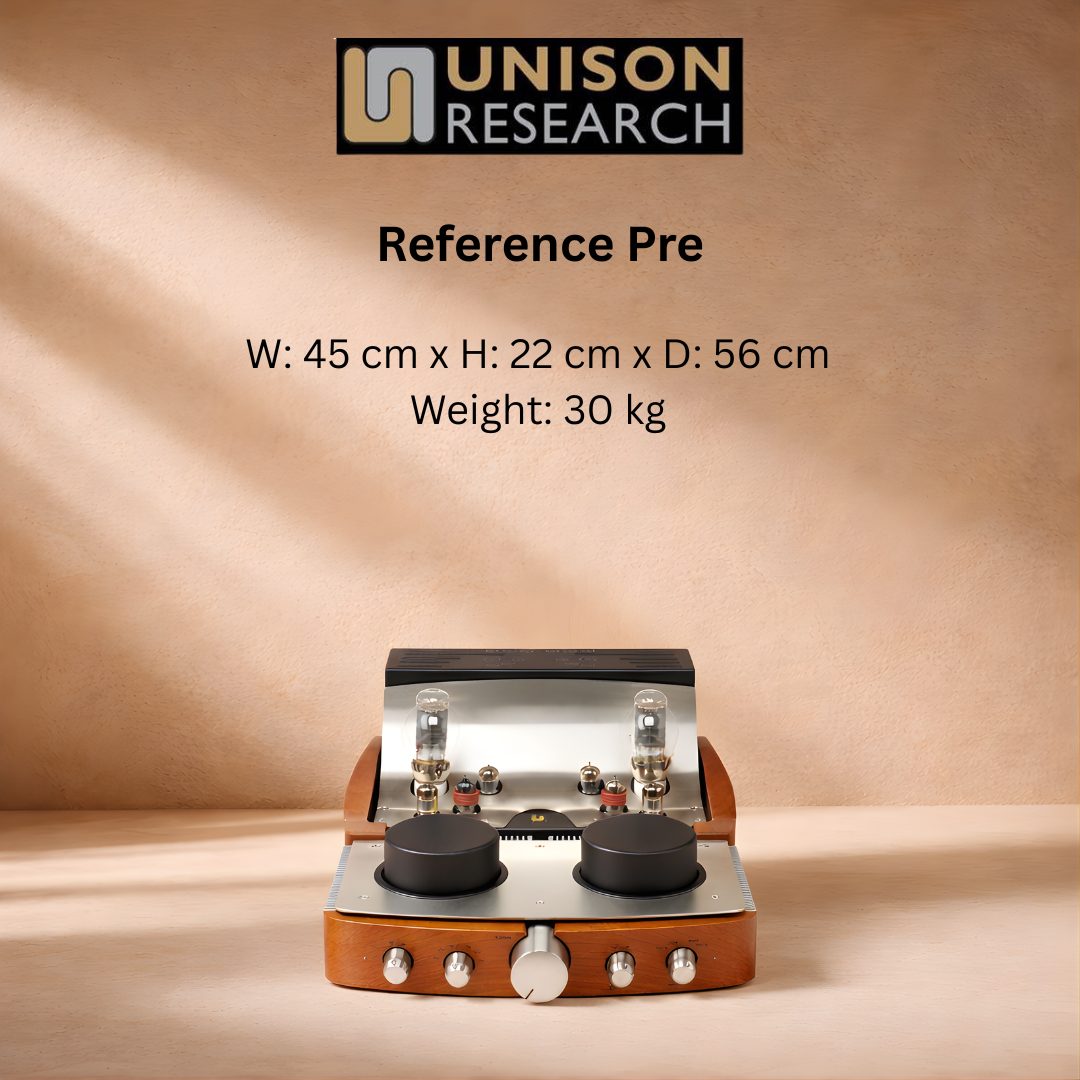

Reference Pre FRONT

Unison Research Reference Pre

Description

After we completed the design of our flagship Reference monoblock power amplifiers, we created a need for a preamplifier with the same features and sound quality. We came up with a preamplifier design worthy of that series, the Reference PRE. Made with the care and attention detail that characterizes all products from Unison Research, the Reference PRE preamplifier is truly another milestone in audio reproduction.

The Unison Research Reference Pre is a high-end, three-chassis, vacuum tube preamplifier designed in Italy, renowned for delivering deeply immersive, organic sound with exceptional midrange and holographic imaging. It offers a pure Class A circuit, dual-mono layout, a dedicated 300B tube stage for high output, and includes a high-quality phono stage for vinyl enthusiasts.
It’s what they recommend.” So strong is the conviction that the Reference Pre is capable of running balanced that a user must really want it.
It features 1 unbalanced and 1 balanced output, multiple inputs including phono, and a top-tier ALPS volume controller.
  • Type: valve preamplifier, dual mono, two  chassis
  • Valves: 2 x 300B, 2 x ECC82, 4 x ECC83, 6 x 6C45P
  • Phono Valves: 4 x 6C45P, 2 x ECC83
  • Class: pure class A
  • Inputs: 4 RCA, 2 XLR, 1 tape, 2 independent phono
  • Output: 1 RCA, 1 XLR, 1 tape ( active ), 1 subwoofer (active ), Power-on link for REFERENCE Power
  • Output impedance : 500 ohm
  • Input impedance : 47 kOhm
  • Input impedance for Phono: Selectable resistance and capacitance
  • Pre Gain: 20dB
  • Phono Gain: 45 – 55 dB
  • RIAA: passive ± 0.2 dB
  • Bandwidth : 10Hz – > 100KHz @ – 0.3dB
  • Negative Feedback: 15 dB line, 0 db Phono
  • Distortion: 0.1%
  • Power consumption : 320 W max
