CCM382

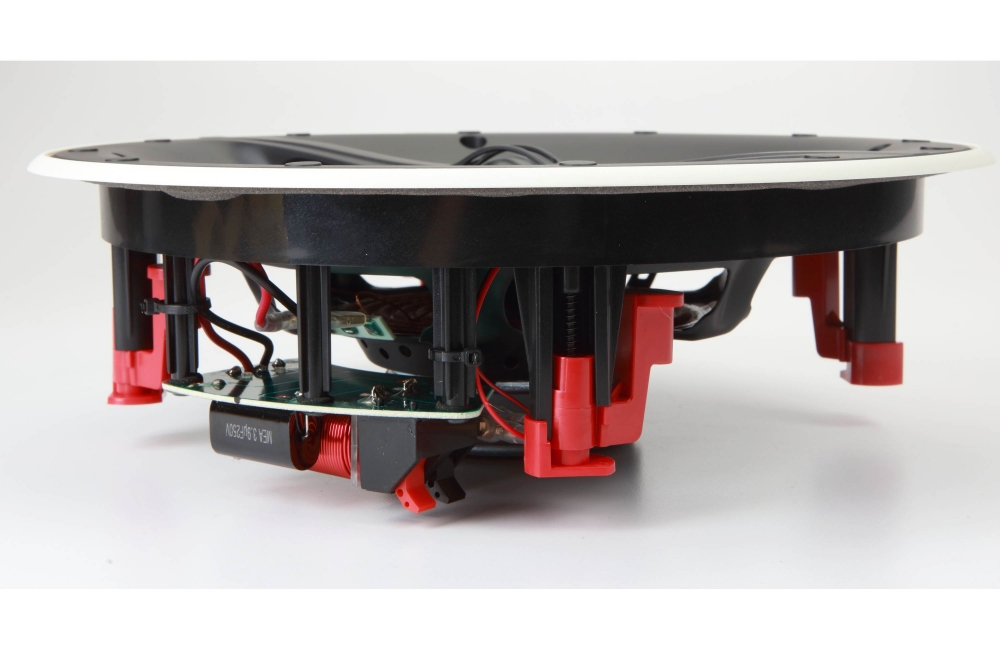

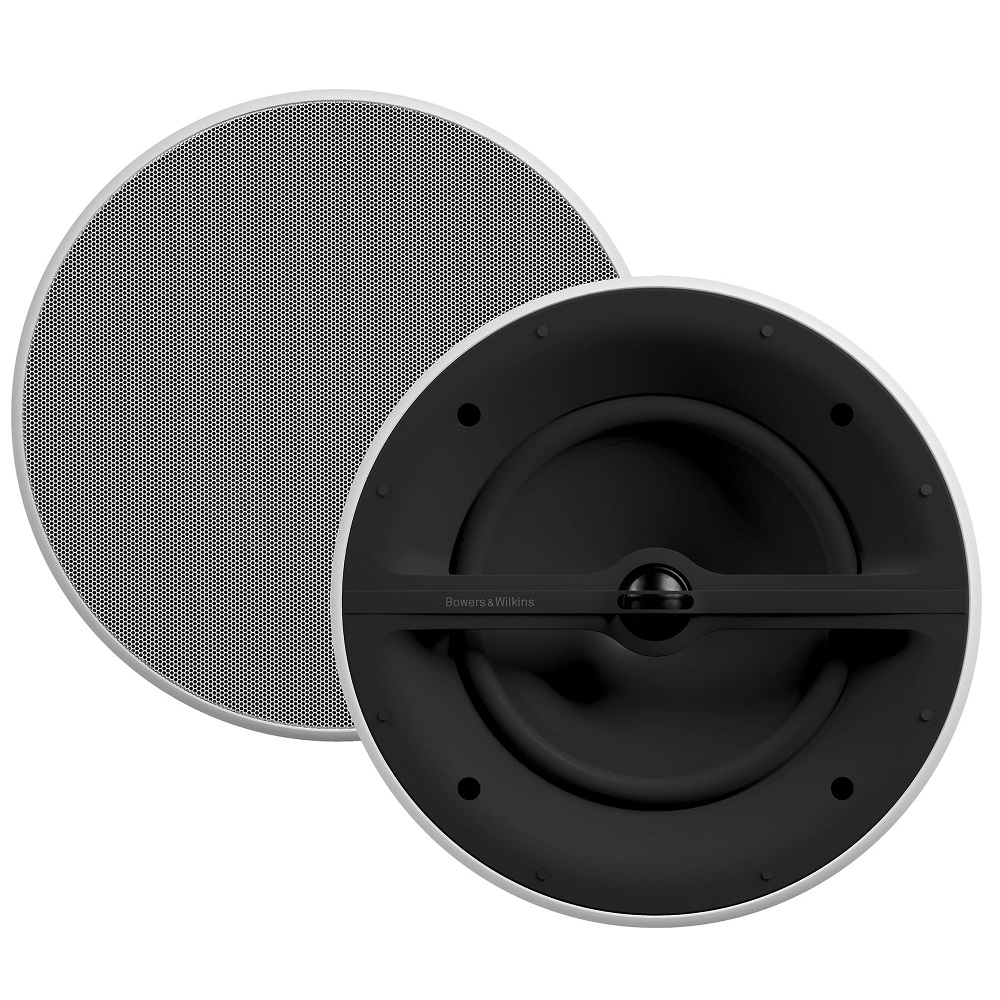

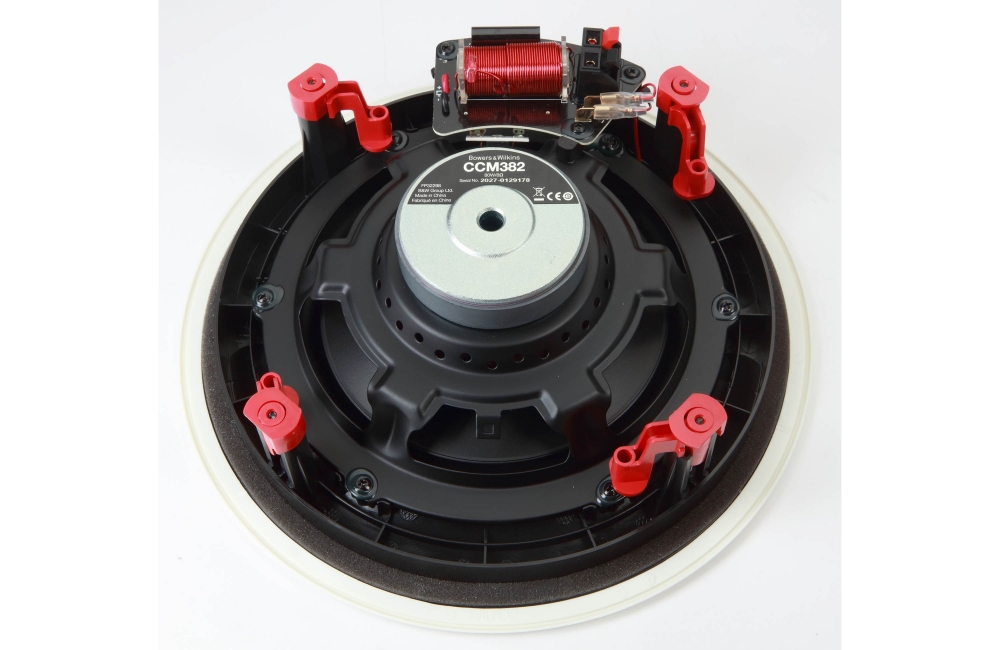

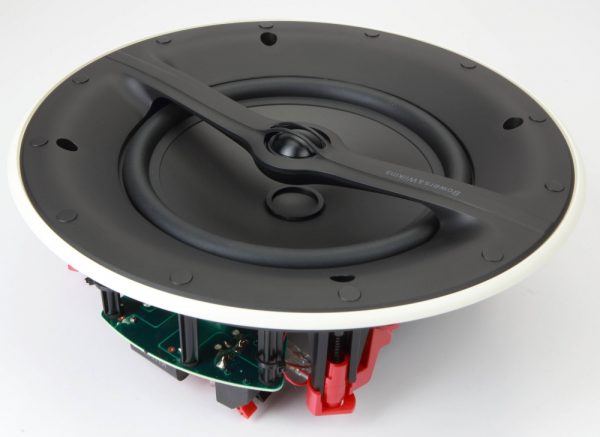

The CCM382 shallow-form in-ceiling speaker features a 25mm soft-dome tweeter and 200mm mid/bass driver for impressive sound. Engineered to deliver precision sound in any environment, CCM382 will bring your music and movies to life.

.

Passive speakers must be powered by an amplifier. A passive speaker has positive and negative inputs which must be connected to the output of the amplifier with 2-core speaker cable (4-core is required for dual input single stereo speakers).

Measured in ohms, impedance is the resistance or load that a speaker puts on an amplifier. When multiple speakers are connected to an amplifier channel in parallel (doubled up on the terminals) this actually has the effect of reducing the total resistance (1/Rt = 1/R1 + 1/R2 …). Most amplifiers are rated at 4-16 ohms, so care should be taken to stay within this range. If the total impedance in parallel is less than 4 ohms then the speakers should be wired in series.

Speakers with the Music icon are suitable for stereo music systems. Single mono speakers which are packaged individually and indicated by the ‘Single’ icon must be purchased in multiples of two when connecting to a stereo amplifier.

Description

• 2-way in-ceiling system

General Information

• Output: Stereo Pair
• Power Type: Passive

Application

• Stereo Music
• Home Cinema: Dolby Atmos Speakers, Surround Speakers

Appearance

• Visible Shape: Circular
• Visible Colour: White

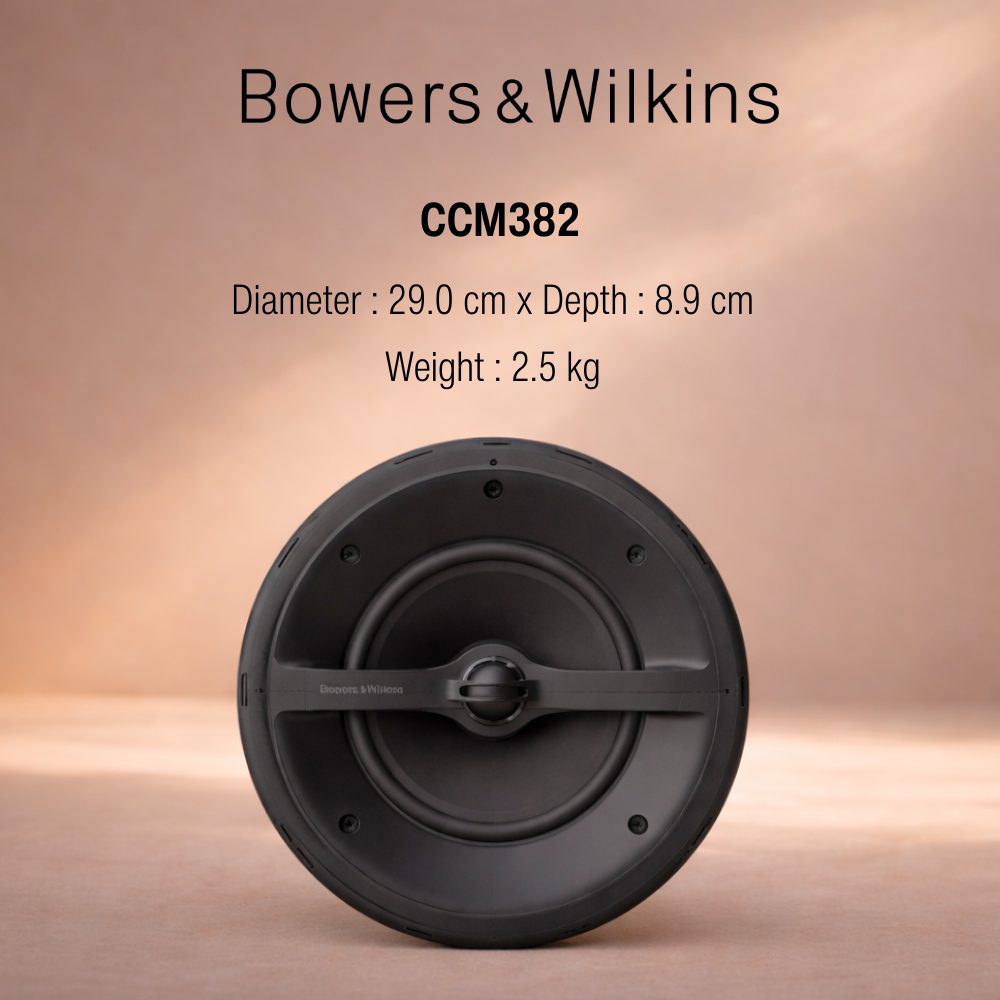

Dimensions

• Frame Diameter (mm): 290mm (11.4in)
• Cutout Diameter (mm): 250mm (9.8in)
• Depth behind surface (mm): 85mm (3.4in)
• Pre-mount Kit:PMK C8
• Back Box:BB BB 6C

Detailed Specifications

• Power Handling:80W
• Frequency range(-6dB) (Hz): 45Hz – 30kHz
• Impedance Nominal (min): 8Ω (5.0Ω)
• Sensitivity  SPL(2.83v,1m)(dB):90dB

Driver Information

• 1x 200mm (8in) Polypropylene cone bass/midrange
• 1x 25mm (1in) soft dome tweeter
