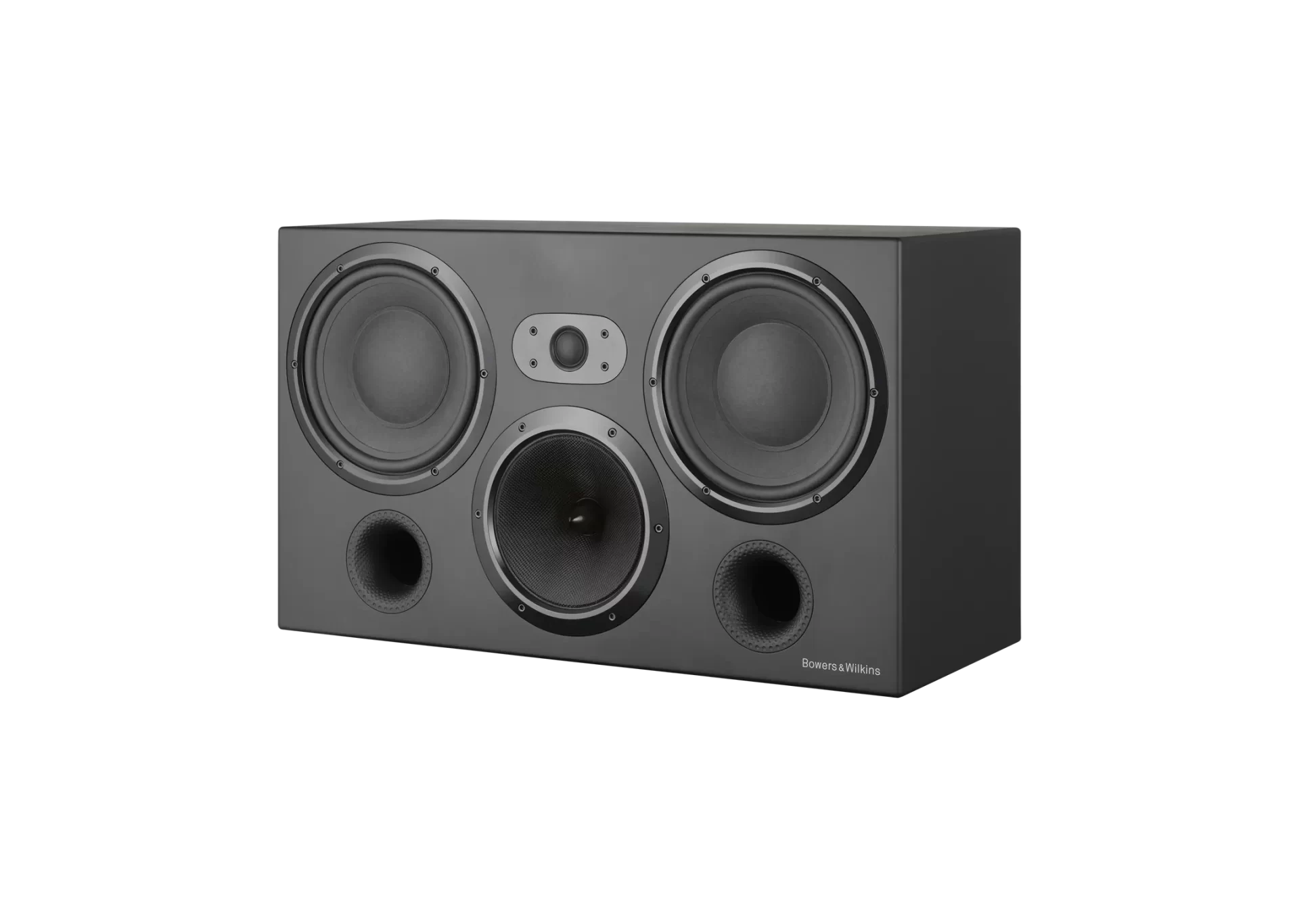

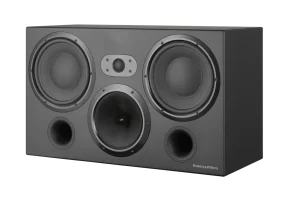

Bowers & Wilkins CT7.3 LCRS 3-way vented-box system


Bowers & Wilkins CT7.3 LCRS 3-way vented-box system

Experience home cinema as it was meant to be heard with B&W’s Custom Theatre 700 Series. Our new range of dedicated custom theatre loudspeakers brings B&W 700 Series technology and craftsmanship to your home cinema set-up at a cost-effective mid-range price.

The three models in the range integrate seamlessly with home theatre cabinetry and can each be positioned as left, centre, right or surround speakers. Each speaker uses high sensitivity Nautilus™ tube-loaded tweeters designed specifically for the reproduction of movie soundtracks along with first-order tweeter crossover filters for minimal signal degradation. Combined with our unique Aramid fiber drive units, the result is extraordinarily life-like, dynamic movie sound quality.

The top-of-the-range CT7.3 LCRS has a pair of 200mm (8in) bass drive units along with a dedicated Aramid fiber FST™ midrange for unparalleled intelligibility, clarity and definition.

Technical Specifications

Technical features :-

Nautilus™ tube loaded tweeter
Aramid Fibre cone FST™ midrange Paper/Aramid
Fibre cone bass driver
Magnetically attached grille

Drive unit :-

1 x ø25mm (1 in) cloth dome high-frequency
1 x ø150mm (6 in) woven Aramid Fibre FST™ mid-range
2 x ø200mm (8 in) Paper/Aramid Fibre bass units

Frequency response :- 42Hz – 22kHz ±3dB on reference axis

Dispersion :-  Within 2dB of reference response
Horizontal: over 60º arc
Vertical: over 10º arc

Sensitivity   :-  92dB spl (2.83V, 1m)

Recommended Amplifier :- 50W – 200W into 8Ω on unclipped programme

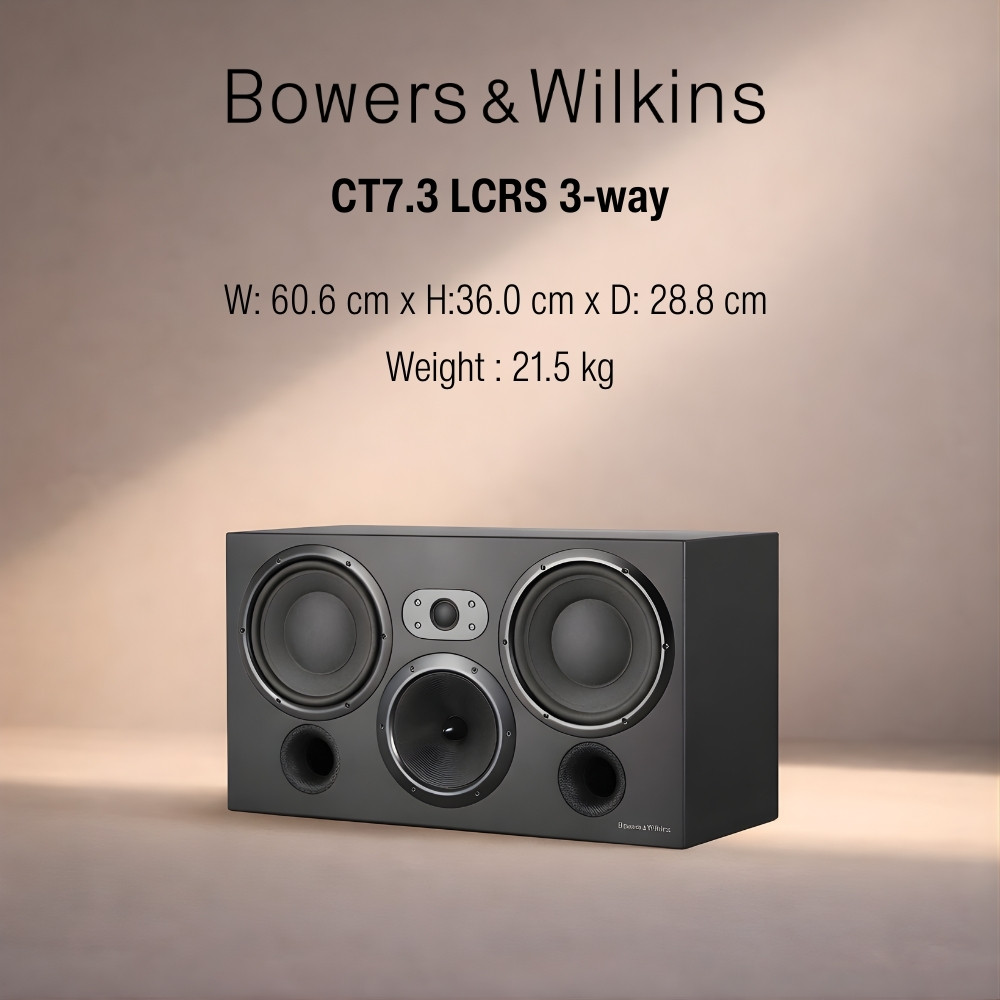

Dimensions   :-    Height: 360mm (14.2 in)
Width: 606mm (23.9 in)
Depth: 265mm (10.5 in)
Depth with grille: 288mm (11.3 in)

Net Weight    :-  21.5kg ( 47.9lb)
