Description

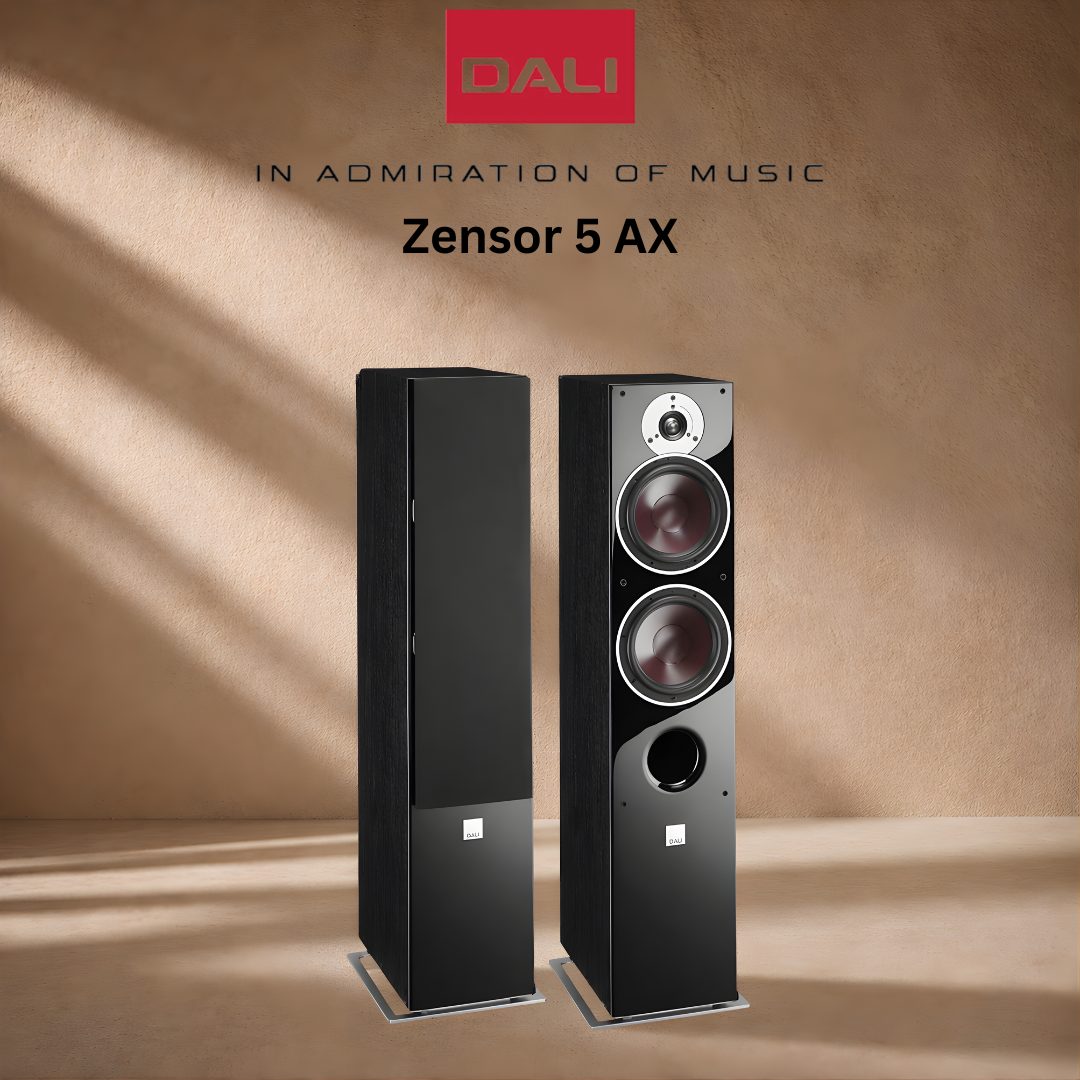

DALI ZENSOR 5 AX

The ZENSOR 5 AX is based on the technology of the ZENSOR 5. They share the same passive crossover, which is paramount for getting the characteristic ZENSOR sound quality. The build-in amplifier is integrated in the left speaker, while the right speaker is a passive ZENSOR 5 speaker.

FULLY DIGITAL AMPLIFIER

The DALI ZENSOR AX has a build-in 2 x 50W stereo all digital class D amplifier that delivers the audio signal to both loudspeakers and is designed to bring out the best from its passive ZENSOR host regardless of the signal type.

CONNECTIVITY

Easy connectivity through a variaty of sources e.g. Bluetooth and analogue input.

WOOD FIBRE CONES

This mix paper pulp and wood fibre makes the cones stiff and light which ensures that every micro detail in the signal is reproduced unfiltered.

SOFT DOME TWEETER

With a clear heritage from our high-end series, the lightweight dome tweeter offers best in class resolution.

PRODUCT DETAILS

Imagine a world where music just flows, where all you needed was a set of loudspeakers. No complex electronics, no unwanted cables, no jumble of remote controls, nothing but pure uncomplicated enjoyment.

DALI ZENSOR AX series set you free from the electronics traditionally associated with a high quality audio experience. Both the stand mount and the floor standing model come complete with all you need. They require nothing extra, just connect the mains and you are ready to play.

The build in 2 x 50W stereo all digital amplifier delivers the audio signal to both loudspeakers and is designed to bring out the best from its ZENSOR host regardless of the signal type. You can use Bluetooth and Apt-X if your device supports it, you can connect an analogue source with a mini-jack or an optical via TOSLink.

Place the ZENSOR 5 AX just where you would a traditional floor standing speaker and start playing music via Bluetooth. Connect your TV via the optical input or any type of traditional audio player via the analogue input.

The ZENSOR AX series has all of the virtues of a traditional stereo system with none of the down sides.

• HI-FI quality audio without the hassle of bulky electronics
• Classic DALI trademarks – Wood Fibre cones and large Soft Dome tweeter
• 2 x 50 Watts fully digital amplifier
• Bluetooth (Apt-X), Optical and Analogue inputs
• Subwoofer output

DALI ZENSOR 5 AX SPECS
Product series    ZENSOR
Frequency Range (+/-3 dB) [Hz]    43 – 26,500
Maximum SPL [dB]    106
Crossover Frequency [Hz]    2,400 Hz
Crossover Principle    2-way
High frequency driver, Quantity    1 x 25 mm
High frequency driver, Diaphragm type    Soft Textile Dome
Low frequency driver, Quantity    2 x 5.25″
Low frequency driver, Diaphragm type    Wood Fibre Cone
Enclosure type    Bass Reflex
Amplifier Type    Fully digital class D (Open loop type)
Input Impedance [ohms]    12.6k
Connection Input    3.5 mm Mini Jack
Optical (Toslink)
Connection Output    SUB Out
Wireless Input(s)    Bluetooth™ Apt-X
Max. Digital Resolution [bits/KHz]    24 / 96
Magnetic Shielding    No
Recommended Placement    Floor
Bluetooth
Recommended Distance From Wall [cm]    20 – 80
Max. Power Consumption [W]    160W
Standby Power Consumption [W]    <0.5W

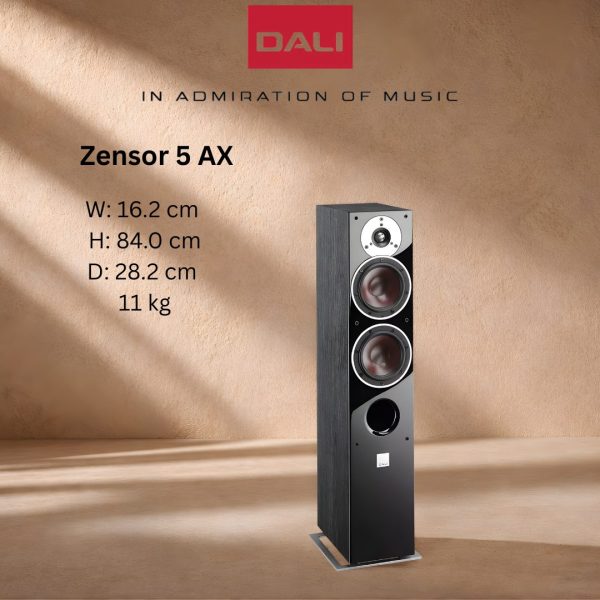

Dimensions With Base (HxWxD) [mm]    825 x 162 x 282
Accessories Included    Manual
Mains Cable
Remote Control
Speaker Wire (For Right Speaker)
Spikes
Rubber Feet
Weight [kg]    11.0
Analogue Input Sensitivity [mV]    300
Continous IEC Amplifier Output [RMS watt]    2 x 50W
Input Mains Voltage [Volts]    Universal mains 100 – 240V
