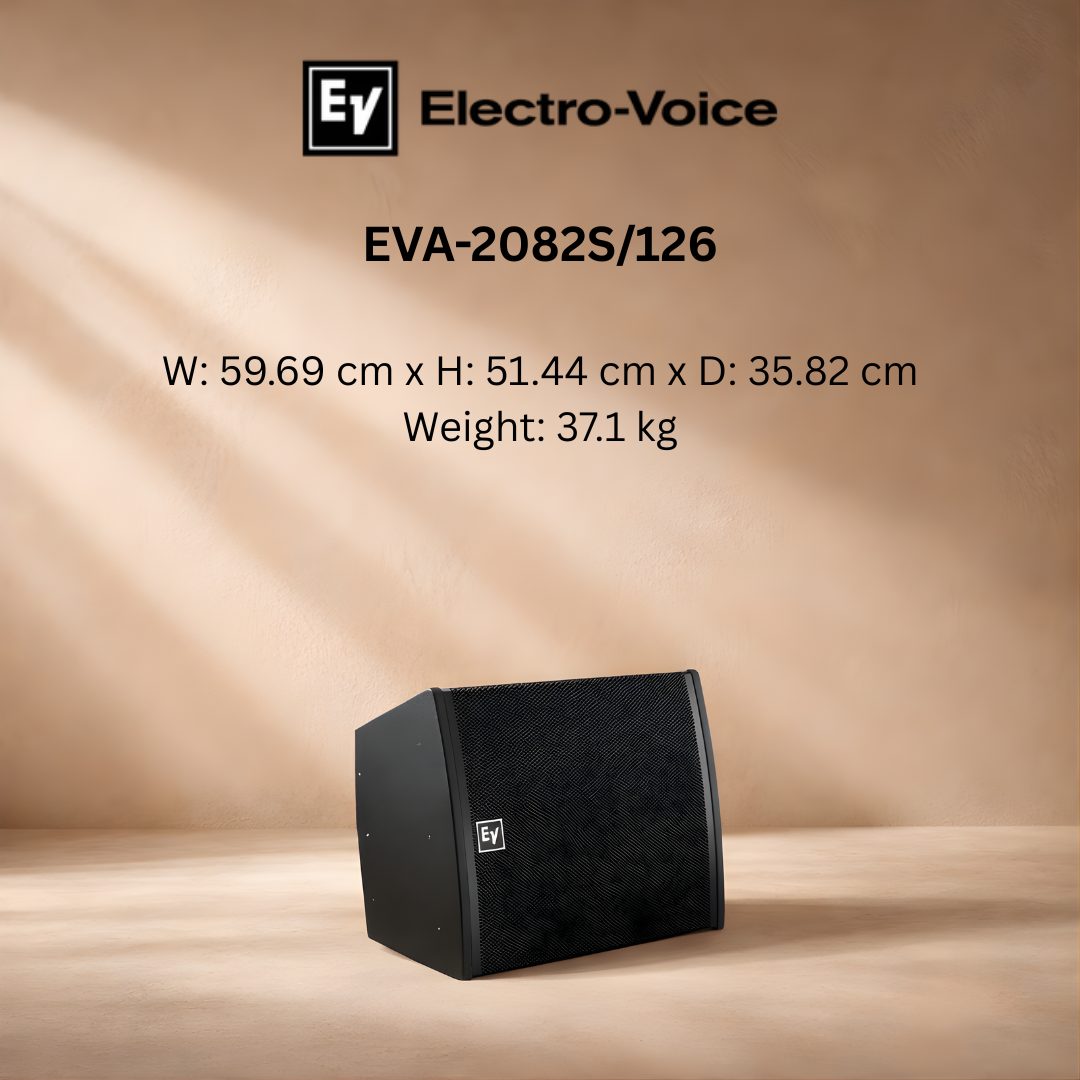

Electro-Voice EVA-2082S/126 (Profesional Speakers)
- Description
Description
The Electro-Voice EVA-2082S/126 is a dual-element, 2-way passive line array module designed for permanent installations. It is part of the Expandable Vertical Array (EVA) series, which is marketed as a cost-effective solution for venues like houses of worship and auditoriums.
- Integrated Efficiency: A sophisticated internal crossover allows up to eight modules (16 elements) to be driven from a single amplifier channel, significantly reducing the need for external DSP or multiple amp channels.
- Hidden Rigging System: The enclosure features integrated, concealed suspension hardware and side panel covers, providing an “architecturally pleasing” appearance for upscale installations.
- Finish Versatility: It is available in three distinct finishes to suit different environments: EVCoat™ for standard indoor use, PI for indirect weather exposure, and Fiberglass (FG) for direct outdoor exposure.
- Sound Precision: The Hydra™ plane wave generator and high-order passive networks are designed to provide performance comparable to high-end, DSP-driven systems.
| Feature | Specification |
|---|---|
| System Configuration | Passive 2-way with internal 6th-order crossover |
| LF Transducers | Two 8-inch low-distortion EVS2008 woofers |
| HF Transducers | Four 1.25-inch DH2005 titanium diaphragm compression drivers |
| HF Waveguide | Advanced Hydra™ plane wave generators |
| Frequency Response (-3 dB) | 60 Hz – 19,000 Hz |
| Coverage (H x V) | 120° x 6° |
| Power Handling | 350 W Continuous, 700 W Program, 1400 W Peak |
| Maximum SPL (calculated) | 135 dB |
| Nominal Impedance | 16 ohm (Minimum 12 ohm) |
