JBL KX200 Full-Featured Digital Processor


Full-Featured Digital Processor
Karaoke singers require unique reverb and effects to help untrained singers sound as good as possible. The JBL KX200 dedicated karaoke processor has all the effects needed and digital signal processing (DSP) to configure input microphones and program material as well as setup any type of speaker.

  • Two separate and adjustable microphone input channels
  • Optical and coaxial digital audio inputs
  • USB port on the front panel for convenience
  • dbx patented AFS™ (Automatic Feedback Suppressions) technology
  • 15-band parameter equalizer for microphone inputs
  • 8-band parameter equalizer for program inputs
  • Six separate and adjustable signal outputs
  • 10 custom presets and 5 factory presets
  • Preloaded settings for HARMAN JBL speakers
  • T9 keypad unlock screen

Microphone input type XLR and ¼” balanced
Impedance 600 Ohm
EIN < -80 dBu, 20 KHz bandwidth
Level Control – ∞ to +14.2 dBu
Line Input Left & right channel RCA unbalanced
Line Input Impedance 24 K Ohm
XLR Output Balanced or Unbalanced
XLR Output Impedance 30 Ohm balanced, 15 Ohm unbalanced
RCA Output Left and Right Channel Unbalanced
RCA Output Impedance 100 Ohm
Frequency Response 20 Hz – 20 KHz, +/- 1 dB
THD + N < 0.007% 20 Hz – 20 KHz
Dynamic Range > 103 dB
Analog / Digital Signal Conversion 24 bit, 48 KHz
Processor 32 bit
Computer Connection USB 2.0

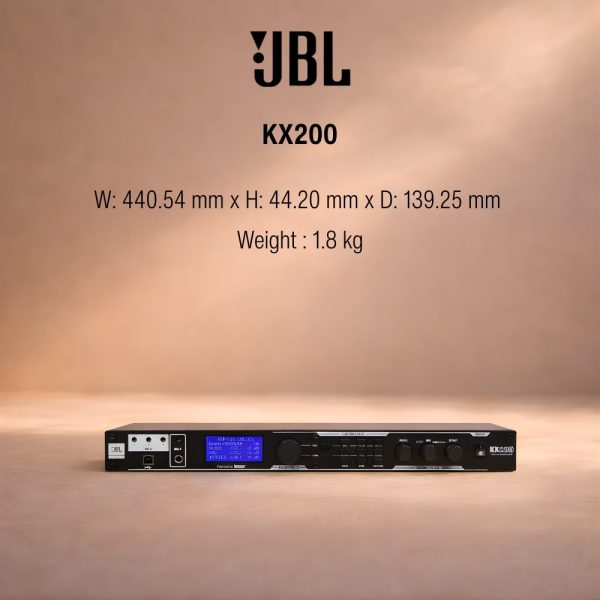

Dimensions (H x W x D): 44.20 mm x 440.54 mm x 139.25 mm
Shipping Weight: 2.5 kg
Net Weight: 1.8 kg
