Description

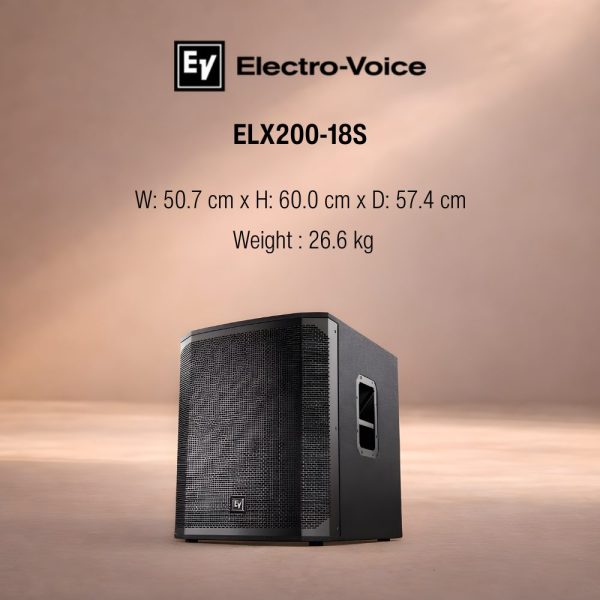

The ELX series is designed to deliver an unprecedented combination of sound quality, portability and durability at its price point. All-new custom components—tested to levels far exceeding the industry norm—make ELX200 a robust workhorse capable of handling real-world abuse and professional applications beyond the capability of competitors’ products in its category.

Every aspect of ELX200 is designed for ideal results as part of the whole – the acoustical, electrical and mechanical components all work together seamlessly. The subwoofers pack powerful low-frequency output into a surprisingly compact footprint, and feature tuned 15 mm thick wood enclosures with a premium top-coat finish. The proprietary features that have made the other members of the EV portable speaker family a go-to for best-in-class performance are also present.

EV’s industry-leading quality and testing procedures yield efficient transducer design and meaningful specs, resulting in components that deliver accurate, linear response at the system’s highest output levels. Translation: loud and clear all the way up to the limit. Unified in one of the strongest full-range composite enclosures ever built by EV. The ELX200 is established as the new benchmark for toughness – both acoustically and physically; maximum efficiency with maximum toughness.

• 1600 W (peak), 133 dB peak SPL utilizing high sensitivity transducer designed and engineered by EV for maximum punch.
• High-output EVS-18L woofer designed to exacting specifications for superior durability and exceptional low-frequency reproduction.
• System reliability verified with over 500 hours of abuse testing and endurance testing.
• Ideal for portable and installed applications.
• Lightweight, compact 15 mm wood enclosure with internal bracing with durable polyurea top-coat finish.
• Professional-grade hardware: integrated M20 threaded pole mount plate and two-handle design for easy lifting.

Specifications

• Powered/Unpowered:Unpowered
• LF Driver Size:1 x 18″ EVS-18L woofer
• Impedance:8 ohms
• Power Rating:400W Continuous
• Inputs:2 x SpeakON (NL4)
• Total Power:1600W
• Frequency Range:28Hz-300hz (-10 dB)
• Frequency Response:45Hz-200Hz (-3 dB)
• Maximum Peak SPL:133 dB SPL @ 1m
• Mounting Options:M20 Pole Mount Plate
• Enclosure Material:15mm Plywood with durable polyurea top-coat finish
• Height:23.7″
• Width:20″
• Depth:22.6″
• Weight:58.7 lbs.
