Description

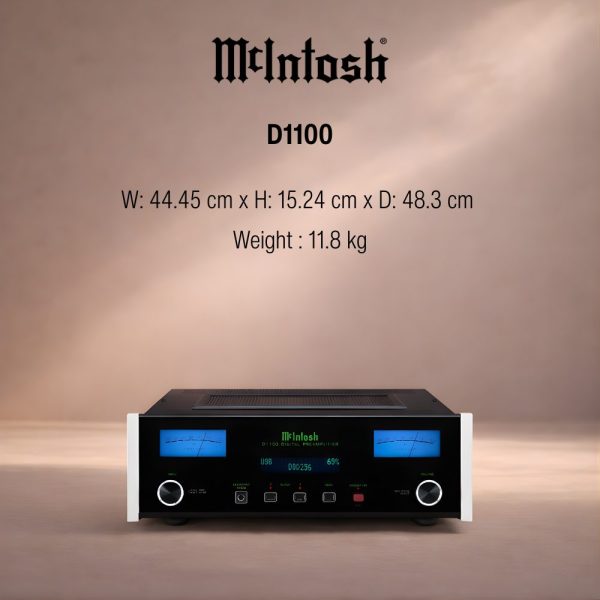

The D1100 Digital Preamplifier is a reference level stereo preamplifier and digital-to-analog converter (DAC). Its 8-channel, 32-bit DAC is used in Quad Balanced mode with half of it dedicated to the left audio channel and the other half to the right channel. It’s the most advanced DAC we’ve ever used and delivers an unprecedented level of performance so that all your digital music is reproduced with exceptional accuracy and authenticity.

• Reference level digital preamp and DAC
• Use as a standalone unit or with C1100

ELECTRONIC SPECIFICATIONS

• Number of Channels   :-   2

• Total Harmonic Distortion 0.0015% (at 2V Output)

• Frequency Response     +/-0.5dB from 4Hz to 20kHz
  +0.5/-3dB from 4Hz to 68kHz

• Maximum Volts Out (Balanced / Unbalanced)    :-   16V RMS / 8V RMS

• Sensitivity High Level (Balanced / Unbalanced  )   :- N/A

• Sensitivity Phono (Moving Coil)  :-    N/A

• Sensitivity Phono (Moving Magnet)  :-   N/A

• Signal To Noise Ratio (High Level)  :-  111dB

• Signal To Noise Ratio (Moving Coil)  :-  N/A

• Signal To Noise Ratio (Moving Magnet)  :-    N/A

• Voltage Gain (High Level)  :-   N/A

• Voltage Gain (Moving Coil) :-  N/A

• Voltage Gain (Moving Magnet)   :-   N/A

• Input Impedance (Balanced / Unbalanced)  :-  N/A

CONNECTIVITY

• Balanced Input  :-  0

• Unbalanced Input  :-  0

• Phono Input Moving Coil    :-  0

• Phono Input Moving Magnet   :-  0

• Upgradeable Digital Audio Module   :-  No

• Digital Coaxial Input  :-  3 (2 RCA and 1 BNC)

• Digital Optical Input  :-  3

• Digital MCT (DIN) Input   :-   1

• Digital USB Input  :-  1

• HDMI (ARC) Input  :-  0

• Digital AES/EBU Input :-  1

• Balanced Fixed Output :-  1

• Balanced Variable Output   :-  2

• Unbalanced Fixed Output  :-  1

• Unbalanced Variable Output  :-  2

• Headphone Output  :-  1/4″ High Drive with Headphone Crossfeed Director (HXD^®)

• Input Level Match   :-   No

• Home Theater PassThru   :-  No

• Unbalanced Analog Connector Type   :-   Premium gold-plated solid brass

• Service Port   :-  1

CONTROL

• Tone Controls   :   No

• Tone Bypass and Input Assign   :-  No

• RS232 Control Input   :-  Yes

• Power Control Output  :-  4 Trigger

• Rear Panel Data Port   :- 4

• Rear Panel IR Sensor Input   :-  Yes

GENERAL SPECIFICATIONS

• Multi-Chassis or Single   :-   Single

• Output Meters   :-  Yes

• Vacuum Tube or Solid State   :-  Solid State

• Power Consumption (On)   :-  30 watts

WEIGHTS & DIMENSIONS

• Dimensions (W x H x D)   :-  17.5″ (44.45cm) x 6″ (15.24cm) x 19″ (48.3cm)

• Weight  :-   26 lbs (11.8 kg)

• Shipping Weight   :-  41 lbs (18.6 kg)
