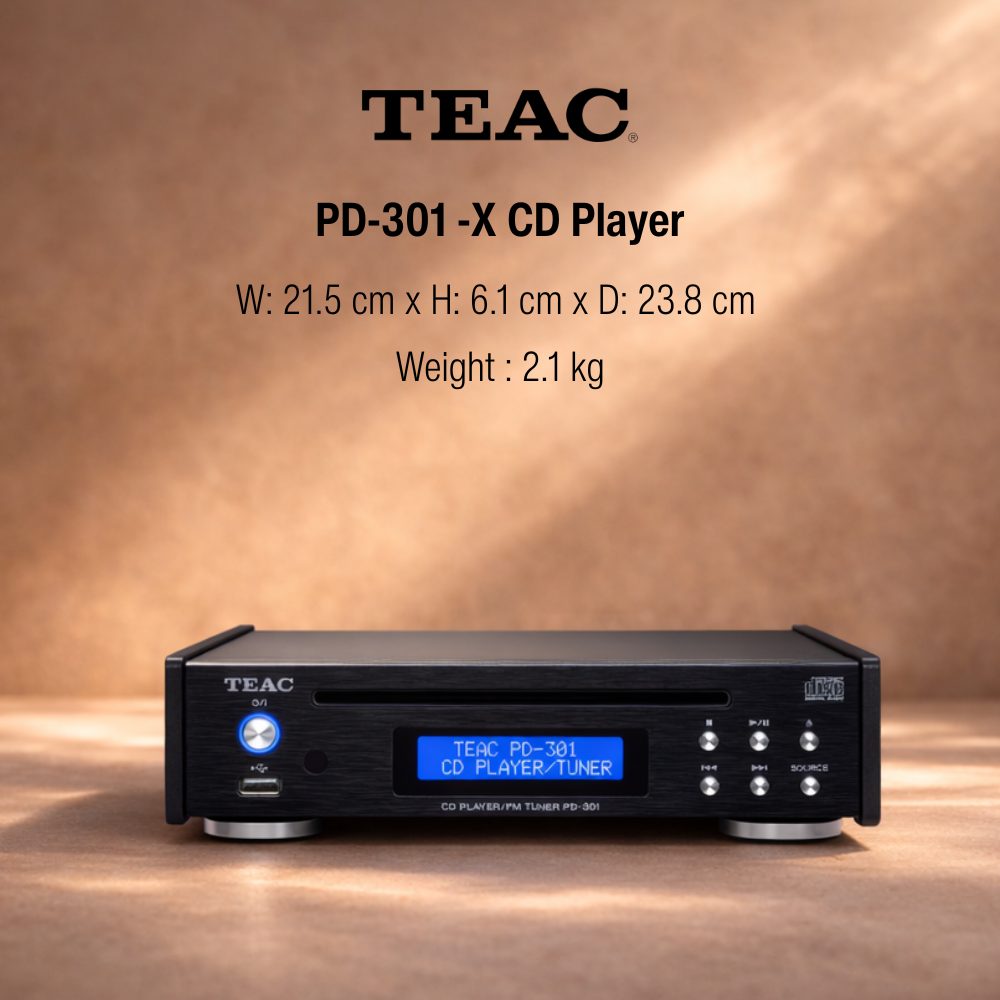

TEAC PD-301-X CD Player/FM Tuner With USB
CD Player/FM Tuner With USB Brand New
Color : Black
| CD section | |
| Supported Media | CD-DA, CD-ROM/R/RW (CD-RW supports CD-DA format only) * 8cm CD not supported. |
| Max. Number of Folder | 50 Folders |
| Max. Number of File | 300 Files (including Folders) |
| Max. Number of Layer | 16 Layers (max. 260 characters of full-path including file name.) |
| Supported Formats | |
| CD-DA (Audio CD) | 16-bit, 44.1kHz |
| MP3 | 32k to 320kbps and VBR, 16k / 22.05k / 24k / 32k / 44.1k / 48kHz MPEG1/2 Audio Layer-3 |
| WMA | 32k to 320kbps and VBR, 8k / 11.025k / 16k / 22.05k / 32k / 44.1k / 48kHz WMA ver.9 Standard, DRM not supported |
| USB section | |
| Supported Media | USB Mass Storage Devices |
| Interface | USB2.0 (Full speed), USB1.1 (High speed), USB3.0 compatible |
| File System | FAT16, FAT32 |
| USB Output Voltage | DC 5V |
| Max. Number of Folder | 50 Folders |
| Max. Number of File | 300 Files (including Folders) |
| Supported Formats | |
| WAV | 16-bit, 44.1k / 48kHz |
| AAC | 8k to 320kbps and VBR, 8/11.025/12/16/22.05/24/32/44.1/48kHz MPEG4 AAC-LC（Audio Stream） |
| MP3 | 32k〜320kbps/VBR, 16/22.05/24/32/44.1/48kHz MPEG1/2 Audio Layer-3 |
| WMA | 32k〜320kbps/VBR, 8/11.025/16/22.05/32/44.1/48kHz WMA ver.9 Standard、DRM |
| Tuner section | |
| Frequency Range | FM 76.0 to 108MHz |
| Number of Preset | 20 stations |
| Analog Audio Output | |
| LINE | |
| Connector | RCA Pin x1 pair |
| Output Impedance | less than 470 ohms |
| Max Output Level | 2.0Vrms (1kHz, Full-scale, 10k ohms loaded) |
| Frequency Response | 20Hz to 20kHz (-3dB |
| Signal-to-Noise Ratio | 113dB |
| Total Harmonic Distortin | 0.005% (1kHz) |
| Digital Audio Outputs | |
| COAXIAL | |
| Connector | RCA Pin x 1 pair |
| Output Impedance | 75 ohms |
| Output Level | 0.5Vp-p |
| OPTICAL | |
| Connector | TOS-link x 1 |
| Operation Power | |
| US/Canada | AC 120V, 60Hz |
| UK/Europe | AC 220-240V, 50Hz |
| Power Consumption | 8W |
| Overall Dimensions | 8.5″ x 2.4″ x 9.1″ / 215 x 61 x 232 mm (W x H x D) |
| Weight | 4.6 lbs. / 2.1 kg |
| Operation Temperature | +5 to +35 degrees (Celsius) |
| Operation Humidity | 5% to 85% (no condensation) |
| Storage Temperature | -20 to +55 degrees (Celsius) |
| Accessories | AC Adapter (GPE152-120125W), Power Cord for AC Adapter, RCA Audio Cable, Remote Control (RC-1323), AAA Batteries x 2 FM Antenna, Owner’s Manual (including Warranty Card) |
