WiiM Pro Hi-Res Wireless Audio Streamer
The WiiM Pro is a versatile and affordable network audio streamer that offers high-quality audio streaming and multiroom capabilities. It supports various streaming protocols like AirPlay 2, Chromecast, Spotify Connect, and TIDAL Connect, and works with voice assistants like Alexa, Google, and Siri. The WiiM Pro also features gapless playback and a wide range of EQ options for personalized sound
- Description
- Specification
Description
WiiM Pro is the audiophile grade big brother music streamer to the ever popular WiiM Mini.
With AirPlay 2, Chromecast, DLNA, Spotify Connect, TIDAL Connect, lossless audio playback, Alexa and multi-room audio, the WiiM Pro turns your existing Hi-Fi system smart, so you can play all your favourite music from your music app, the WiiM App or your voice by using Alexa, Google Voice or Siri all in the highest possible sound fidelity.
With support for top music streaming services including Spotify, iHeartRadio, Tidal, Qobuz, Amazon Prime Music, Napster, Deezer, with more to come, as well as Airplay 2, Bluetooth, WiFi & an analogue AUX in jack, the WiiM Pro defies it’s size with audio features!
The WiiM Pro offers the same great features as the WiiM Mini, whilst also adding:
• Ethernet
• Chromecast Audio support
• Alexa Multiroom
• Google Voice Assistant Compatibility
• Upgraded Quadcore Processer
• Upgraded 512MB Memory
• Optical Input
Unrivaled Sound Quality up to 192 kHz/24-bit
Diverging from the norm of resampling to set sample rate and bit depth, WiiM Pro stands out by delivering unaltered audio up to 192kHz, 24-bit quality. That’s the same as an artist’s recording in the studio. The advanced TI PCM5121 DAC produces a remarkable 106 dB SNR and an impressive -92dB THD+N performance.
Full Feature Set
• Supports Hi-Res audio up to 192 kHz/24 bit
• Wireless Multi-room audio – group multiple units for a connected system
• Spotify Connect & Tidal Connect
• Airplay 2
• Ethernet connection
• Chromecast Audio
• Alexa Multiroom with UHD
• Group with Nest speakers and Display
• Line-in & Optical audio inputs
• Line-out, Optical & Coax audio outputs
• Dual band WiFi & Bluetooth 5.0
• Super easy setup with the WiiM Home app
• Works with Siri & Alexa smart devices
• Group with Homepod & Amazon Echo devices
Super easy setup
WiiM Pro will pop up automatically in the WiiM Home app.Follow the in-app guide and start streaming music in less than 2 minutes
All your content in one app
We support many popular music streaming services in our WiiM Home app with more to come. Or connect to your NAS or local files to stream your favorite music.
Spotify
TIDAL
QobuzTuneIn
zer
iHeartRadio
usic
zon Alexa
dora
SoundCloud
Napster
Calm Radio
ner
SoundMachine
Radio Paradise
Use your Spotify app as your remote for the WiiM Pro and stream directly from Spotify Cloud, works for both Spotify Free and Premium users.Play music everywhere with multi-room audio
Easily build your multiroom sound system with your existing AirPlay 2 speakers, Amazon Echo, and Google Home devices. Using your legacy audio devices, you can create a more flexible multiroom sound system with multiple WiiM Pros, WiiM Minis, or Linkplay-powered devices. WiiM Pro supports multiroom from various audio source inputs, including WiFi, BT, Aux, and SPDIF input, making it versatile with almost every music listening option.
Multiple EQ options
Cater to your listening taste by applying multiple EQ options including the 26 preset EQs, bass/treble adjustment, 10-band graphic EQ and parametric EQ.
Automate your routines
Make your life easier by automating your routines. For your sleeping and wake-up routines, create a routine to wake up or fall asleep to your favorite music, station, or podcasts. Or, use your Alexa to create routines.
WiiM Pro

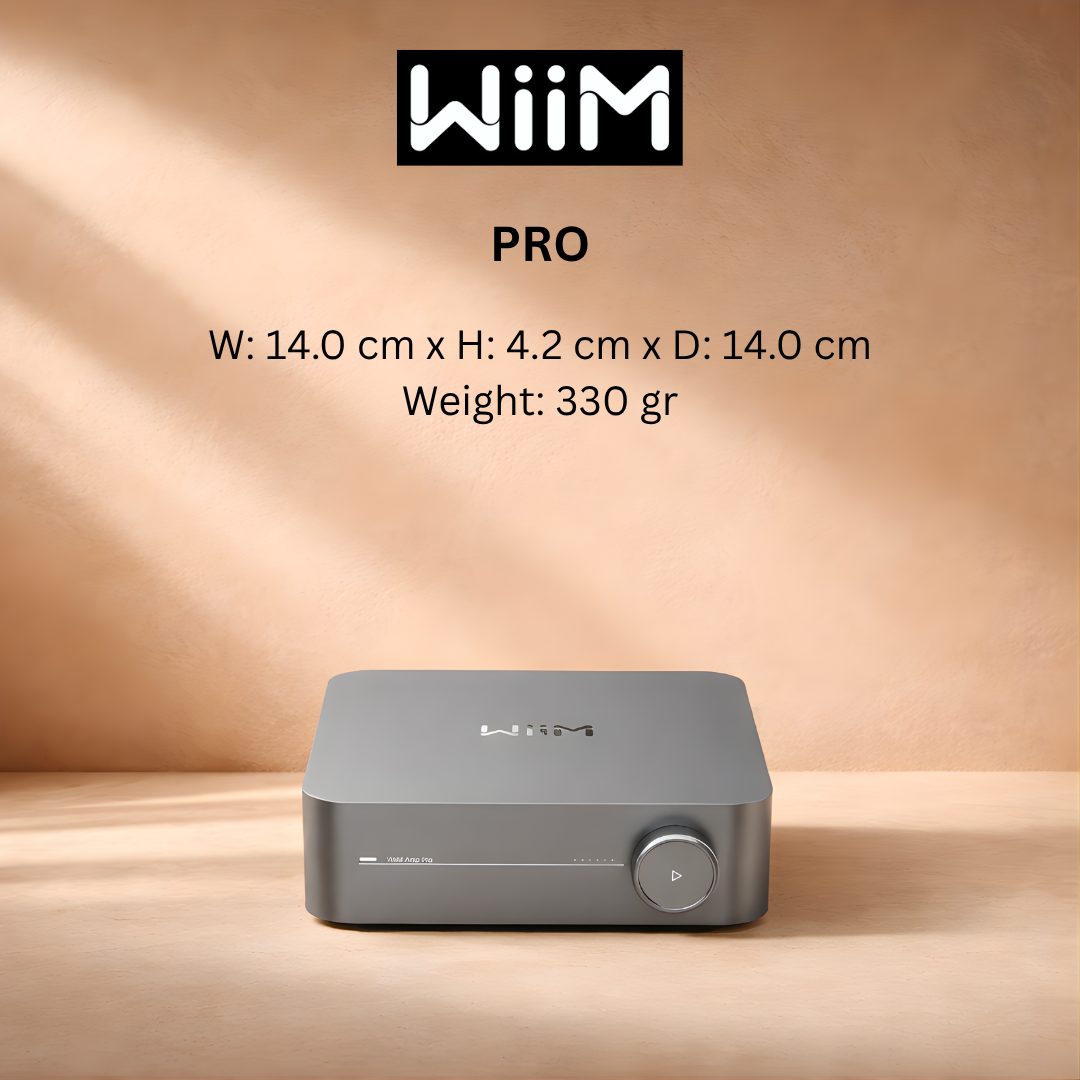

Dimensions
Weight：330g (11.6 oz)

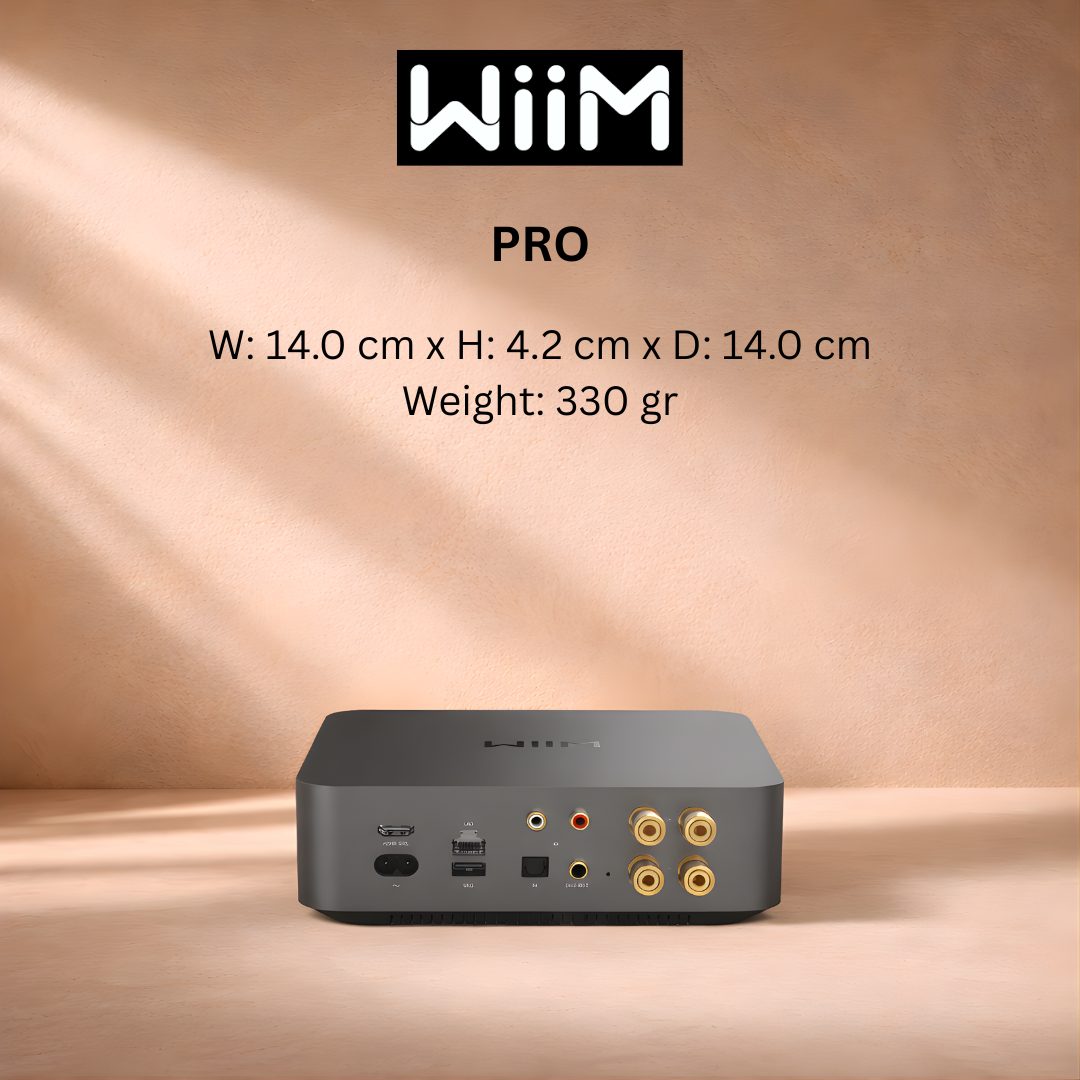

Audio Input
1 x Analog RCA Line input
1 Vrms
48kHz/24-bit
SNR 91dB
1 x SPDIF in Optical, up to 192kHz/24-bit
Analog Audio Output
1 x Analog RCA Line output,
1 x Digital optical (SPDIF) output,
1 x Digital Coaxial output,
up to 384kHz/32-bit
Internal DAC IC : TI Burr-Brown PCM5121
SNR (built-in DAC) : 102dB
THD+N (built-in DAC) : 0.009%(-81dB)
Network : 802.11 b/g/n/ac 2.4 GHz and 5 GHz dual bands Wi-Fi
Bluetooth : Bluetooth 5.1
Digital Audio Output: Bit-perfect output, up to 192 kHz, 24-bit with digital optical or coaxial output.
Audio Codec : MP3, AAC, ALAC, APE, FLAC, WAV, WMA, OGG
Protocol : AirPlay 2, Chromecast Audio, DLNA, Spotify Connect, TIDAL Connect, Amazon Music Casting, Qplay 2.0, Roon Ready (WiiM Pro has been certified, WiiM Pro Plus is in certification).
Streaming Services in App : Spotify, Amazon Music, Deezer, Tunein, Tidal, Qobuz, SoundCloud, Pandora, iHeartRadio, vTuner, Napster, Sound machine, etc.
Power Input : USB Type-C, requires 5V, 1.5A or higher
Bundled adapter: 5V, 2A
LED : Three color status LED — Red, Green and White
WiiM Pro & WiiM Pro Plus LED Behaviors >
ButtonCapacitive touch buttons – Play/Pause, Volume +, Volume -, 1 x Preset
