Description

Ultimate Performance

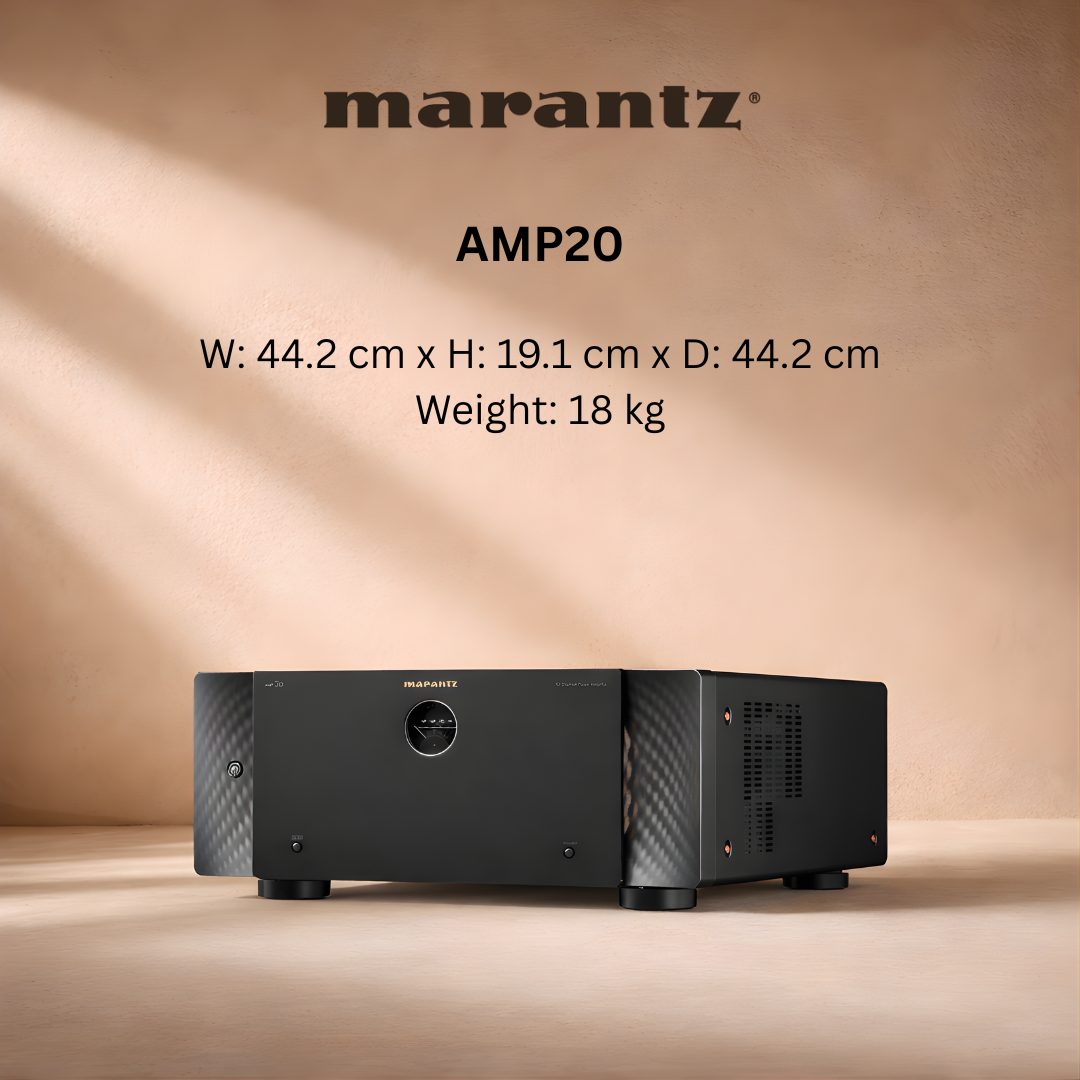

AMP 20 combines very high-power output and high channel count to create a master reference-level amplifier for ultimate home theater performance. When paired with AV 20, the results are unforgettable.

AMP 20’s custom-developed Class D amplification and refined HDAM-SA2 technology create the most incredible theatrical experience possible in your home.AMP 20 gives you 12 channels of commanding power in a single enclosure, each rated at 200 watts to perform at extraordinarily high levels with no loss in fidelity.

AMP 20 is a remarkably powerful 12-channel amplifier, and can be paired with AV 20 for an elite, reference-level home theater system.

• Crafted in Shirakawa, Japan
• 12 Channels
• 200 Watts per Channel
• Exclusive HDAM
• Custom Switching Amplifiers
• Selectable Output Modes

Details & Specifications

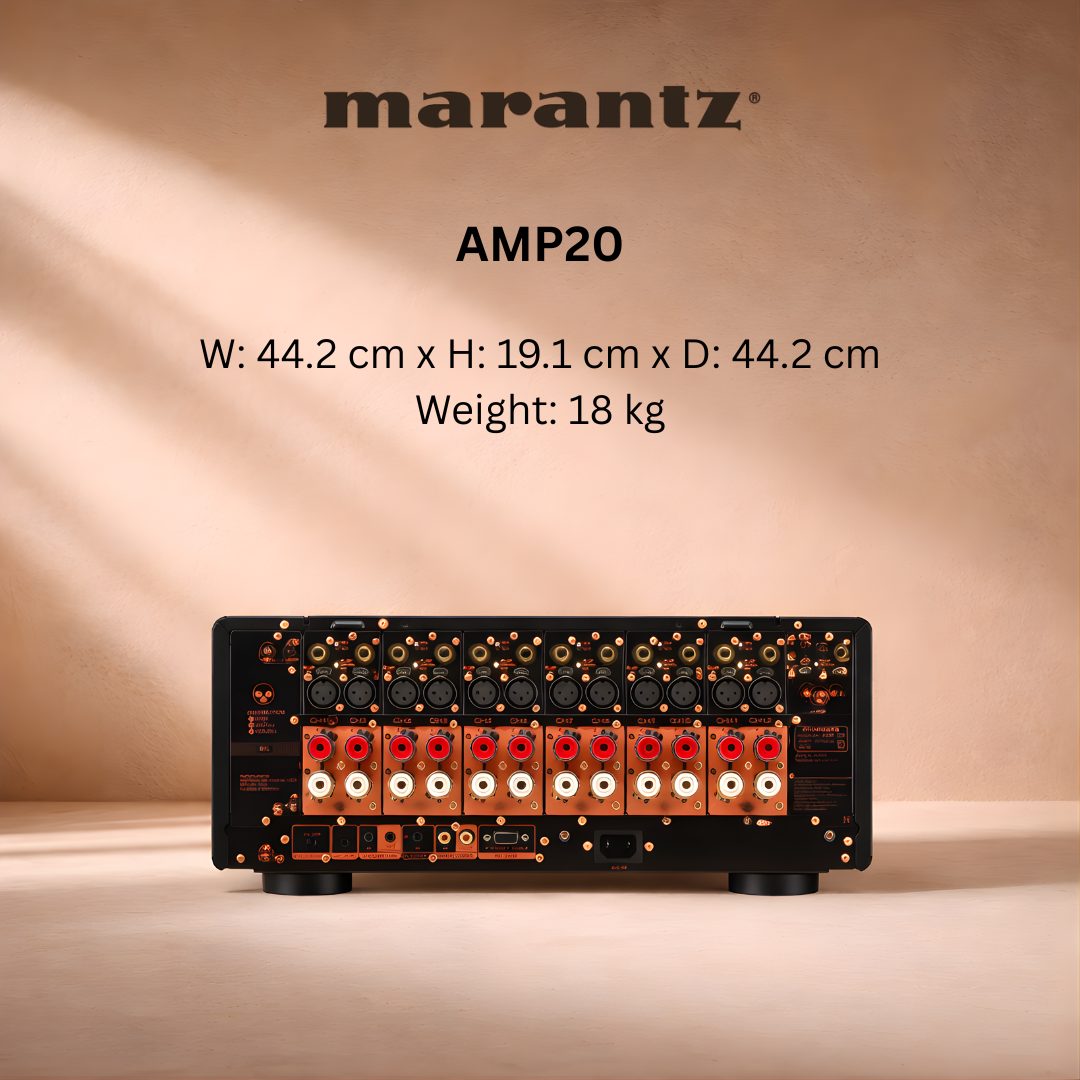

• Main Amplifier in Balanced & Unbalanced: 12ch (Exclusive use by a selector switch.)
• Speaker Terminal SPKT-1+
• Number of Speaker Terminals 12
• Bi-Amp Drive /BTL Drive Yes / Yes
• Level Meter Yes
• Chassis Copper Plated

• RS232 Control Yes
• IR Flasher In Yes
• Marantz Remote Bus Yes
• DC Trigger Input/ Output 1 /

• Number of poweramps 12
• Power Output (8 ohm, 1 kHz, 0.05% 2ch Drive) Normal / BTL 200W / 400W
• Power Output (4 ohm, 1 kHz, 0.7% 2ch Drive) Normal 400W
• Power Output (8 ohm, 1 kHz, 0.7% 5ch Drive) Normal 200W

• Front Display Level Meter
• Auto Power Off Yes
• Metal Front Panel Yes
• Power Consumption 400W
• Power Consumption, No-Sound 110W
• Standby Consumption 0.2W
• Maximum Dimensions (W × D × H) 17.4 × 17.4 × 7.5 in.
• Weight 39.7 lbs
• What’s in the box Main unit, quick start guide,
  AC cord,Amp control cable,
  Remote control cable,
  SP terminal wrench
• UPC code 747192143930
