Bowers & Wilkins CT8 CC Centre Speaker
- Description
- Specification
- Details & Specifications(PDF)
Description

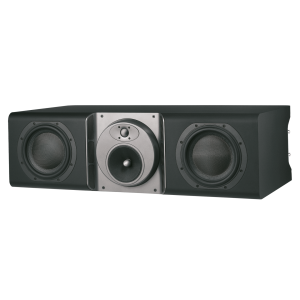

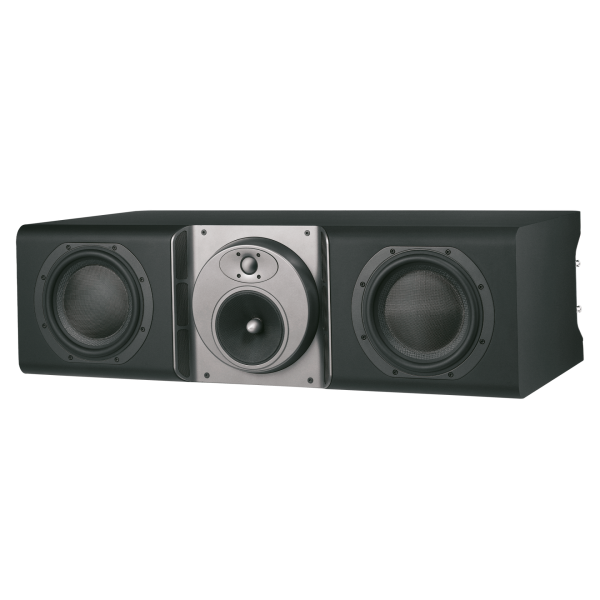

Bowers & Wilkins CT8 CC Centre Speaker
The centre speaker has the identical driver complement to the CT8 LR for
precise timbre matching, but rearranged to suit its horizontal orientation.
The CT8 CC can be positioned below the screen, it could equally well be
placed above, thanks to the adjustable midrange/tweeter head.
Description
3-way closed-box system
Technical features
Nautilus™ spiral tube-loaded tweeter
Aramid fibre FST™ mid-range
Carbon Aerofoil™ bass cone
Matrix cabinet
Active bass crossover
Driver unit
- 1x Ø32mm (1¼ in) Aluminium dome
with Nautilus™ spiral tube-loaded
high-frequency - 1x Ø150mm (6 in) Aramid fiber cone
FST™ midrange - 2x Ø250mm (10 in) Carbon Aerofoil™
bass cone
Detailed Specifications
- Frequency range:-6dB at 23Hz to 40kHz
- Frequency response :29Hz – 24kHz +/-3dB
(on reference axis) - Dispersion(within 2dB of reference response ):Horizontal: over 60° arc
Vertical: over 10° arc - Sensitivity (2.83V, 1m):93dB
- Harmonic distortion(2nd and 3rd harmonics (90dB, 1m):
<1% 45Hz – 20kHz
<0.5% 55hZ – 20kHz
- Nominal impedance:8Ω (minimum 4Ω)
- Crossover frequencies:300Hz, 4kHz
- Recommended : 500W – 1,000W
amplifier power (into 8Ω
on unclipped programme) - Max. recommended :0.1Ω
cable impedance
Dimensions
- Height: 325mm (12.8 in)
- Width: 1,100mm (43.3 in)
- Depth: 550mm (21.65 in)
Net weight:85kg (187 lb)
Finishes
Cabinet: Black painted
