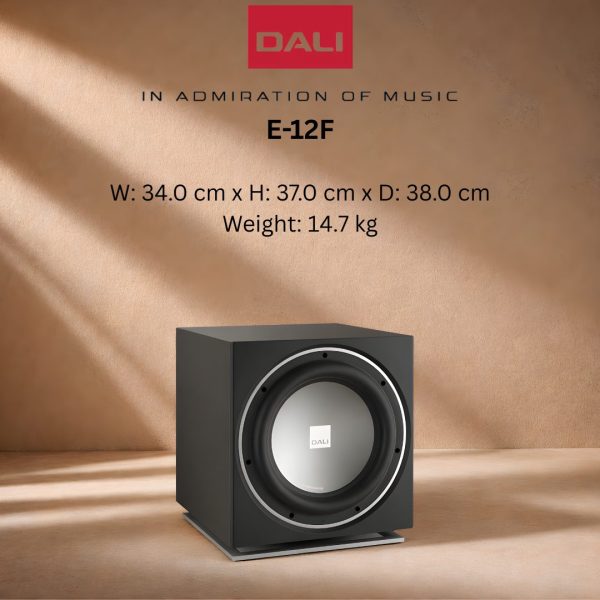

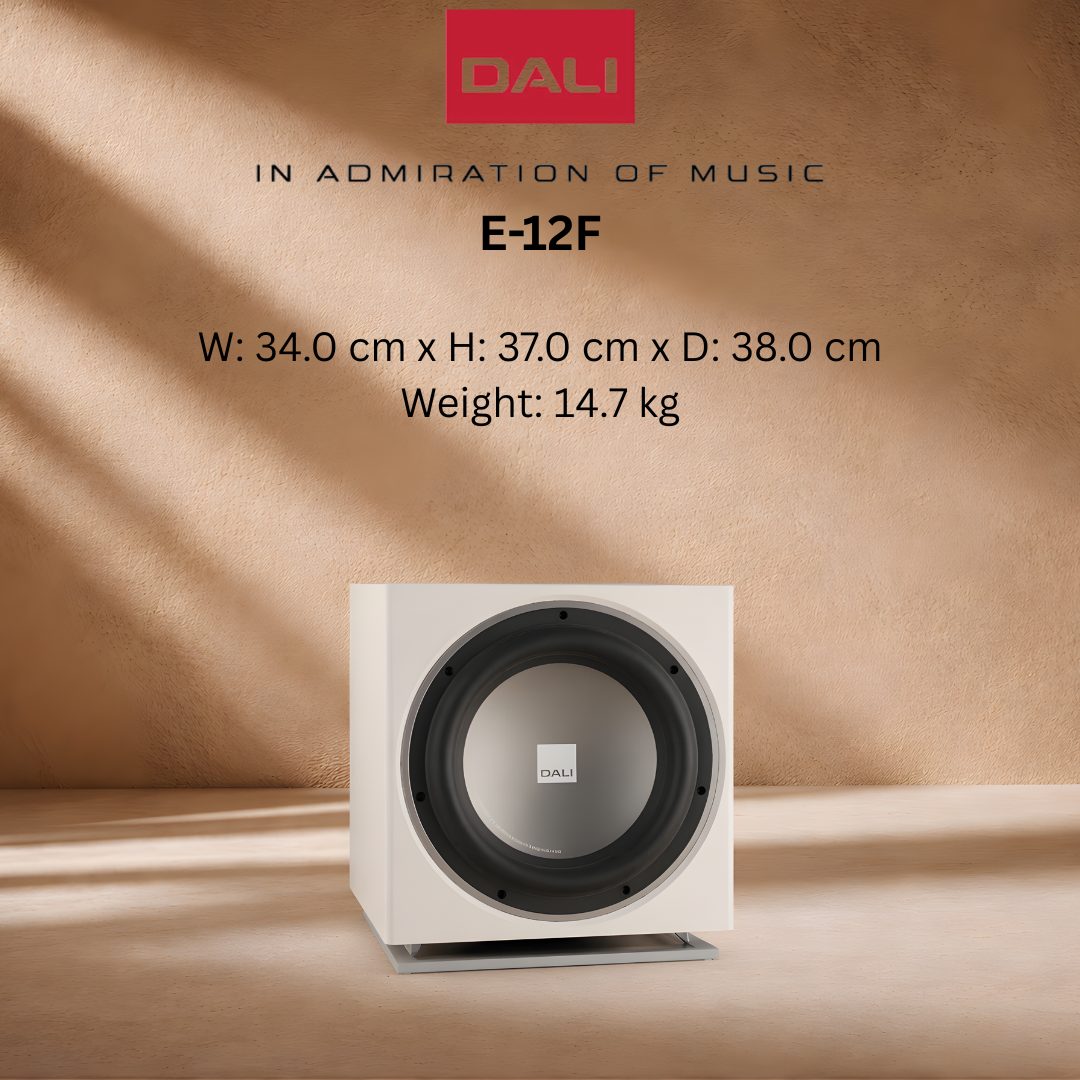

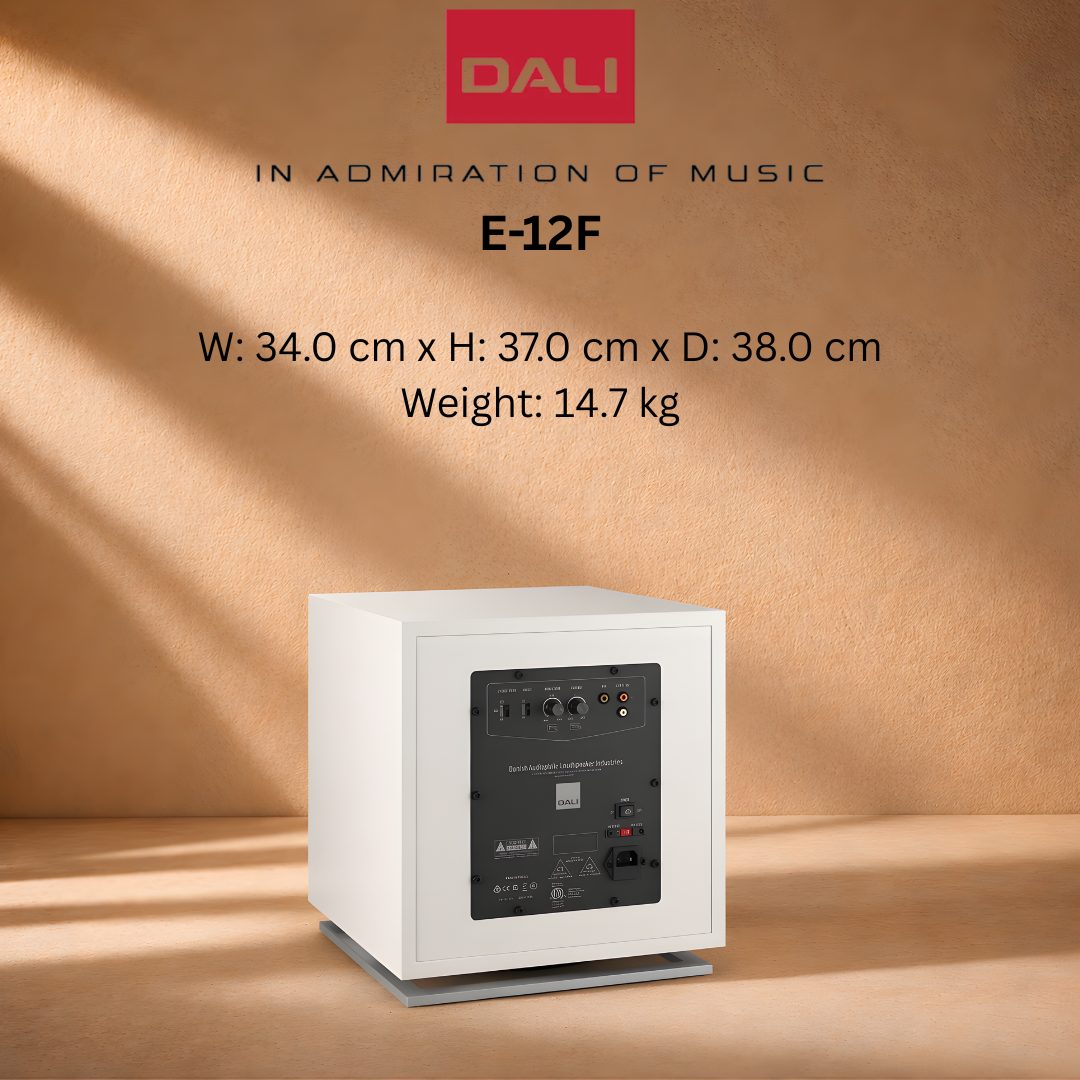

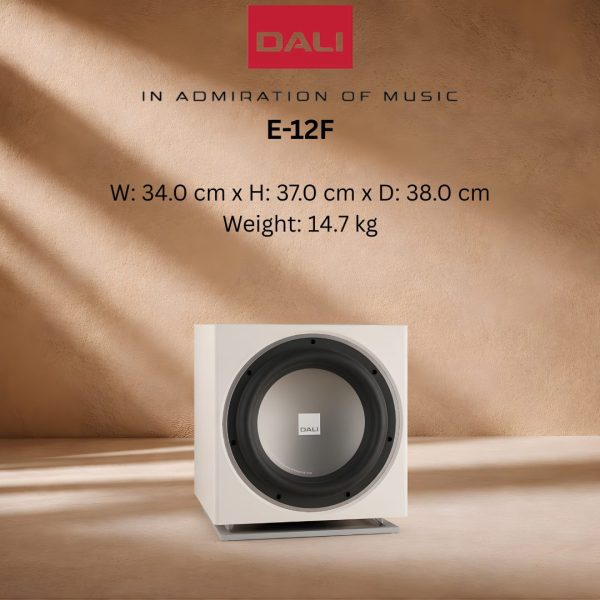

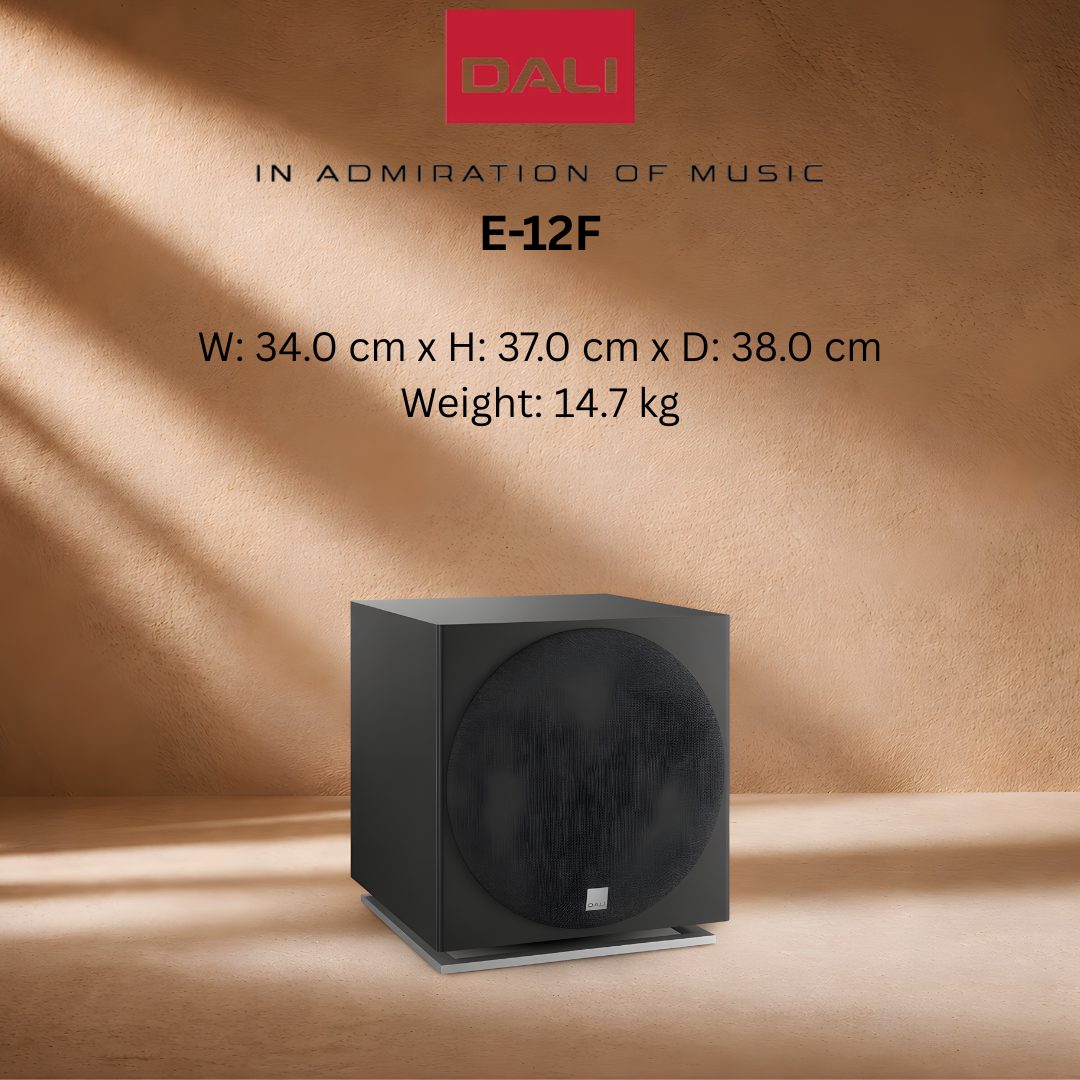

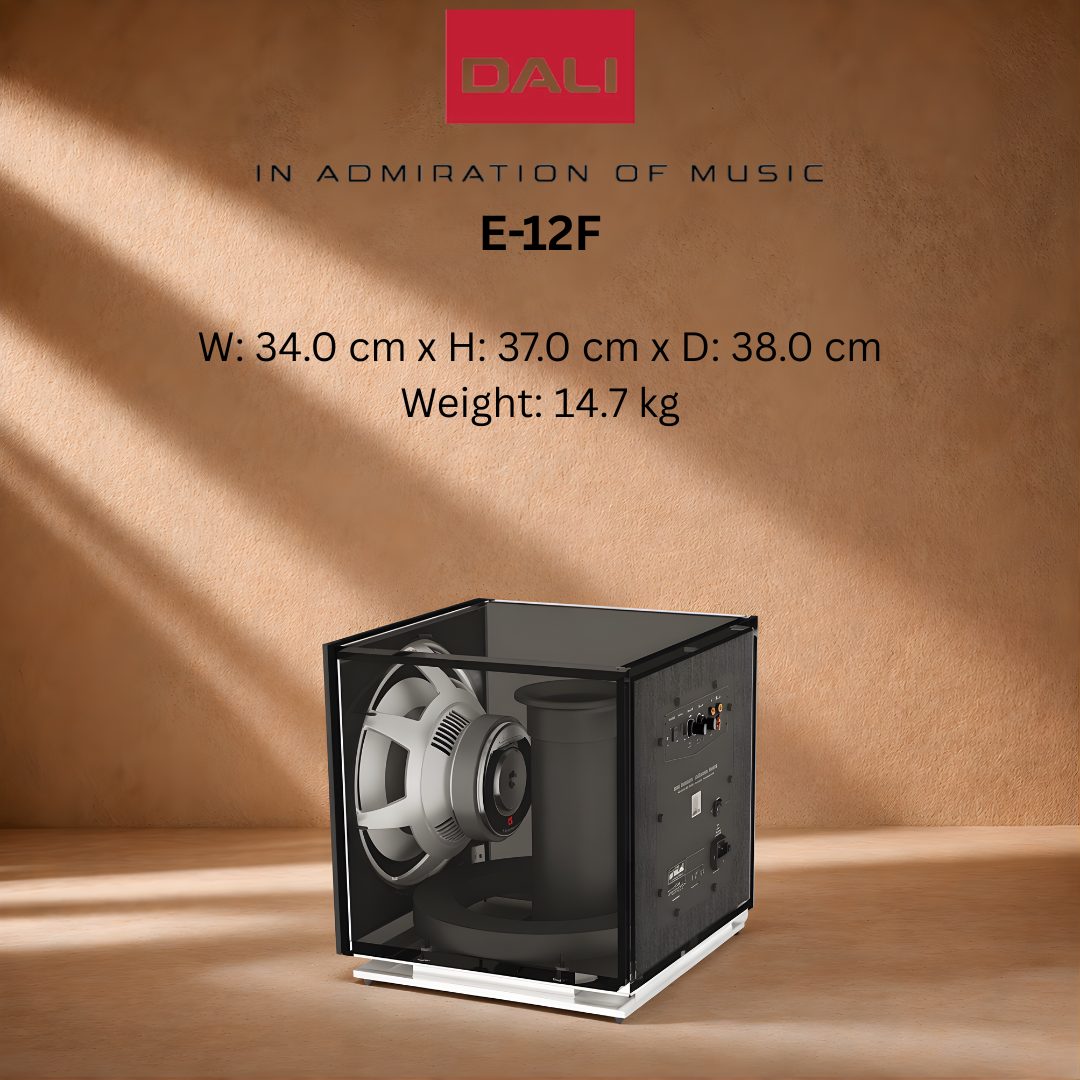

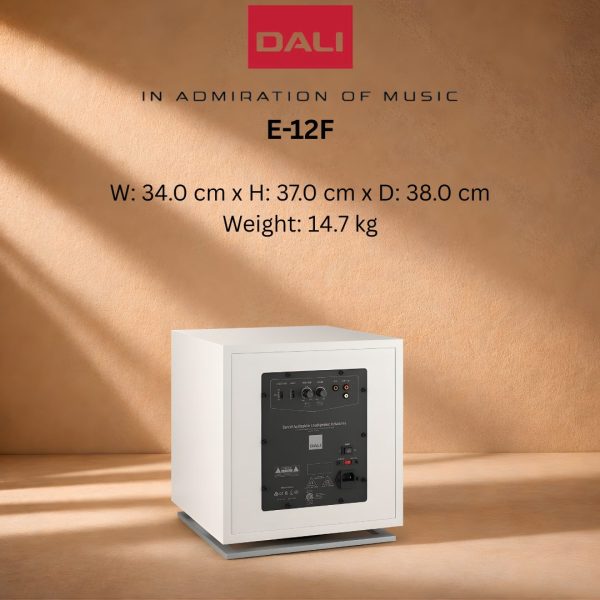

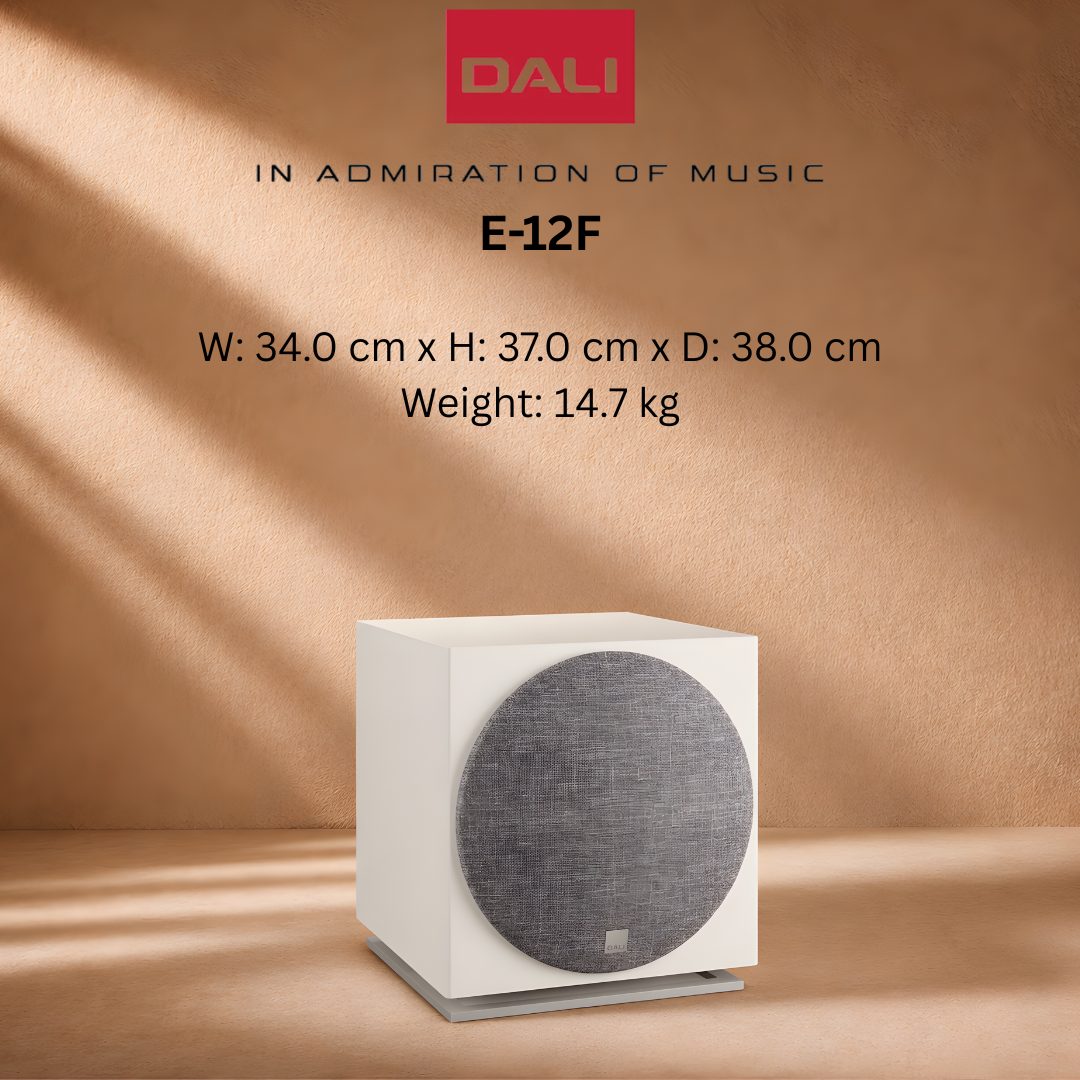

DALI E-12F (12inch Active Subwoofer)
The DALI SUB E-12 F is an elegant subwoofer strong enough for most purposes, whether there is music or movies on the program. The SUB E-12 features a 12” woofer, capable of moving plenty of air with power and precision. The cone is made from pure aluminium for maximum stiffness and a becoming exterior.
- Description
Description
DALI SUB E-12 F SPECS
Product series SUBWOOFERS
Frequency Range (+/-3 dB) [Hz] 28 – 190
Maximum SPL [dB] 112
Crossover Frequency [Hz] 40 – 120
Low frequency driver, Quantity 1 x 12″ long stroke
Low frequency driver, Diaphragm type Polymere Aluminimum
Enclosure type Bass Reflex
Bass Reflex Tuning Frequency [Hz] 36.0
Max. Amplifier Power Output [RMS watt] 220
Continous IEC Power Output [RMS watt] 170
Input Impedance [ohms] 25k
Connection Input Mono Line Level (LFE)
RCA
Stereo Line Level (low pass filtered)
Magnetic Shielding No
Recommended Placement Floor
Recommended Distance From Wall [cm] > 5
Functions Crossover Frequency
Phase Switch
Standby (Auto Power) On/Off Switch
Volume (Gain)
Max. Power Consumption [W] 250
Dimensions With Base (HxWxD) [mm] 370 x 340 x 380
Accessories Included Manual
Rubber Bumpers
Spikes M6
Weight [kg] 14.7
