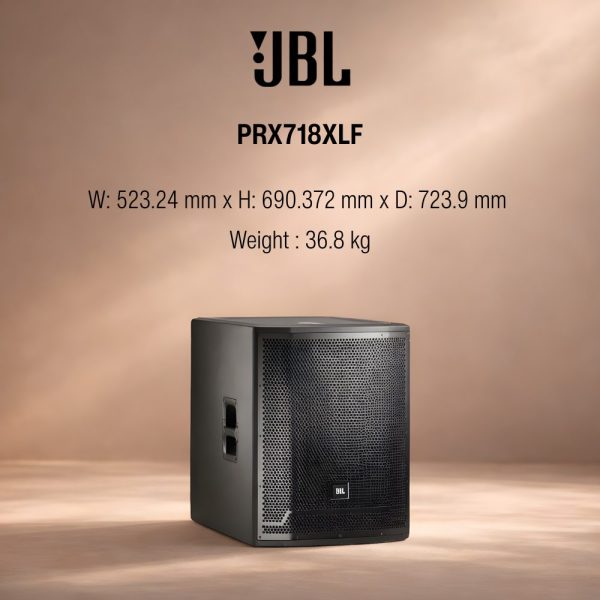

JBL 18″PRX718XLF Self-Powered Extended Low Frequency Subwoofer System

Description

18″ Self-Powered Extended Low Frequency Subwoofer System

The PRX718XLF, extended low frequency subwoofer was designed and engineered to provide sub bass frequencies with accuracy and power. Used as a single sub in a sub/sat system or in multiples as part of a scalable, large format sound reinforcement system, the PRX718XLF performs with extreme efficiency and control.

Features

  • 134 dB peak SPL
  • 18″ Differential Drive® low-frequency driver for low-distortion and higher SPL
  • Efficient Class-D amplifier technology
  • DSP Input limiter circuit, crossover, dynamic limiting, component optimization, selectable system EQ
  • Integrated stereo pass-thru, with selectable HP filter, and polarity reverse
  • 2 x XLR-1/4″ combination inputs, with 2 x XLR loop-thru
  • • 20 mm threaded pole socket for solid, secure satellite speaker mounting.
  • Multiple handles with comfort rubber grips for easy transport
  • Lightweight poplar plywood cabinets made structurally sound with tongue and groove joints and protected by JBL’s tour proven DuraFlex™finish.
  • Cloth backed, dent-resistant 16 gauge steel grilles
  • The PRX718XLF extended low frequency subwoofer was designed and engineered to provide sub bass frequencies with accuracy and power. Used as a single sub in a sub/sat system or in multiples as part of a scalable, large format sound reinforcement system, the PRX718XLF performs with exceptional efficiency and control. The subs are stackable and light-weight ensuring quick set-ups and tear-downs. And due to their rugged construction are perfect for AV rental inventories. With a pole receptacle (that accepts a SS4-BK or SS4-BK24) on the top panel and integrated stereo pass-thru this is the most powerful low-frequency complement to the PRX full-range systems. The addition of a polarity reverse option further enables system optimization.
  • The PRX718XLF is a high performance self-powered subwoofer system. The PRX718XLF is comprised of a powerful 2278H Differential Drive® dual voice-coil and magnetic gap, woofer driven by a 1500 Watt Class-D power amplifier. Sophisticated DSP is at the core of a fully featured input section, providing user selectable cross-over functionality, polarity optimization, protection, dynamic limiting and discrete component optimization.
  • All PRX700 cabinets are built from a combination of 25mm (on the top and bottom for added rigidity) and 18mm, strong, light-weight poplar plywood made structurally sound with tongue and groove joints. All PRX700 Series cabinets are protected by JBL’s tour proven DuraFlex™ finish. Grilles are made from dent-resistant 16 gauge steel and handles are made from light-weight glass-filled nylon for added strength and durability.
  • The amplifier input panel offers stereo inputs with XLR or ¼ inch jack compatibility. A user selectable crossover ensures a smooth transition to full-range system connected to the stereo outputs. Signal present and limiter lights indicate the system status and assist in setting the optimum level via the level control knob.

Specifications

Power Rating1500 W
AC power input100V – 240V~ 50/60 Hz
Frequency Range (-10dB)30 Hz – 103 Hz
Frequency Response (±3 dB)35 Hz – 87 Hz
Internal Crossover Frequency100 Hz DSP controlled 48 dB filter slope
Loop out Crossover Frequency120 Hz analog 24 dB filter slope
Maximum SPL (1m)134 dB peak
Signal IndicatorsLimit: Yellow LED indicates peak output has been reached and dsp limiter is actingSignal: Green LED indicates signal presentPower/Standby: Blue indicates system has power and ready to pass audio, Red indicates system has power but is in a power saving mode and will not pass audio.
Dynamic Control (Input)dbx Type IV™ limiter circuit
Input Impedance20K Ohms (balanced)
Polaritynormal or reverse polarity
LF Driver1 x JBL 2278H 460 mm (18 in) woofer
EnclosureRectangular, 18 mm, plywood
Suspension / MountingM20 threaded pole socket on top
Transport2 x injection molded handles with backing cup
FinishObsidian DuraFlex™ finish
GrillePowder coated, Obsidian, 16 gauge perforated steel with acoustical transparent black cloth backing.
Input ConnectorsTwo Balanced female XLR/ 1/4″ combo connectors
Output ConnectorsTwo balanced male XLR connectors.
Dimensions (H x W x D)690.372 mm x 523.24 mm x 723.9 mm (27.18 in x 20.60 in x 28.50 in)
Net Weight36.8 kg (81 lb.)
