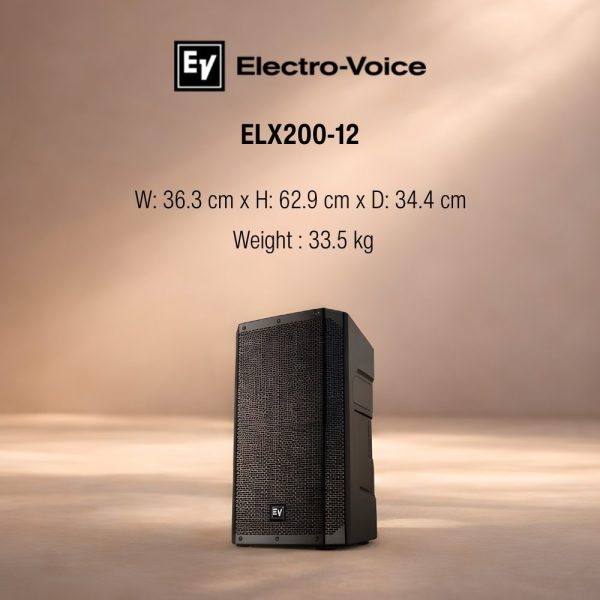

Electro-Voice ELX200-12 12″ passive loudspeaker

 Key Features

    • For Live Stage, DJ Setups, Mobile Rigs
    • 12″ Woofer, 1″ HF Driver
    • Handles up to 1200W Peak
    • 51 Hz to 20 kHz Frequency Range
    • 77 Hz to 17 kHz Frequency Response
    • Dual NL4 speakON Connectors
    • Polypropylene Enclosure
    • Integrated Handles and Suspension Points


The ELX series is designed to deliver an unprecedented combination of sound quality, portability and durability at its price point. All-new custom components—tested to levels far exceeding the industry norm—make ELX200 a robust workhorse capable of handling real-world abuse and professional applications beyond the capability of competitors’ products in its category.

Every aspect of ELX200 is designed for ideal results as part of the whole – the acoustical, electrical and mechanical components all work together seamlessly. The full-range models feature a low profile form factor designed with a high-spec composite enclosure to balance weight, manageability, as well as structural integrity. The proprietary features that have made the other members of the EV portable speaker family a goto for best-in-class performance are also present: Signal Synchronized Transducers (SST) waveguide concept.

EV’s industry-leading quality and testing procedures yield efficient transducer design and meaningful specs, resulting in components that deliver accurate, linear response at the system’s highest output levels. Translation: loud and clear all the way up to the limit. Unified in one of the strongest full-range composite enclosures ever built by EV. The ELX200 is established as the new benchmark for toughness – both acoustically and physically; maximum efficiency with maximum toughness.

  • 1200 W (peak), 128 dB peak SPL system that is reliability verified with over 500 hours of abuse testing and endurance testing to 4x typical industry practices.
  • 1.4 inch DH-1L (1 inch exit) titanium compression driver for extended transparent high-frequency response.
  • High-output EVS-12M woofer designed to exacting specifications for superior durability and exceptional low-frequency reproduction.
  • EV-patented Signal Synchronized Transducers (SST) waveguide design provides precise and consistent coverage, minimal distortion, and maximized acoustical loading.
  • Professional-grade hardware: three M10 threaded mounting points for forged eyebolts, integrated pole-mounts and the proven ZLX three-handle design for easy lifting.




Suspension(3) M10 suspension points
Minimum Impedance7.5Ω
HF TransducerDH-1C 1-inch titanium compression driver
Speaker TypeFull-Range
Woofer Size12inch
Frequency Response (-3 dB)¹77 Hz – 17 kHz
Frequency Range (-10 dB)¹51 Hz – 20 kHz
Max. SPL/1m (calc)²128dB
Coverage (Nominal -6 dB) H90°
Coverage (Nominal -6 dB) V60°
LF TransducerEVS-12M 300 (12 in)
Power Rating1200W
Crossover Frequency1.7 kHz
Connector TypeDual NL4
Enclosure MaterialPolypropylene composite
Grille18 AWG steel with powdercoat
Available ColorBlack or White
Height24.76″ (629mm)
Width14.29″ (363mm)
Recommended High-Pass Frequency50 Hz
Depth13.54″ (344mm)
Weight Net33.51lbs (15.2kg)
Shipping Weight37.7lbs (17.1kg)
Nominal Impedance
Axial Sensitivity (SPL, 1 W @ 1 m)93dB
Power Handling (Continuous / Peak)300W/1200W
