JBL25AV

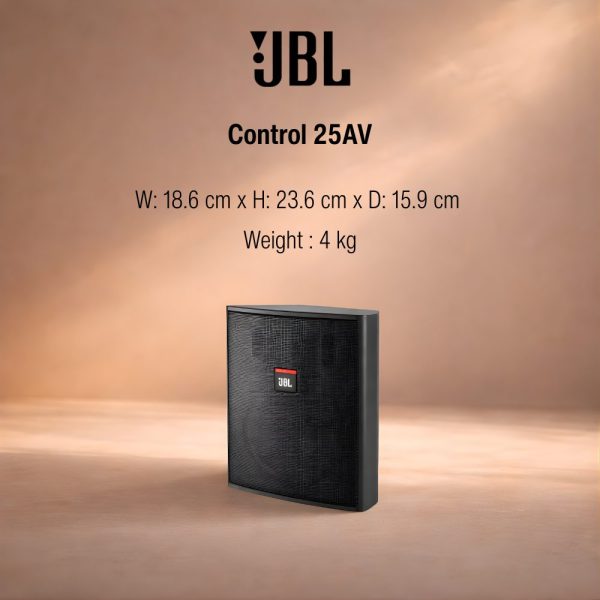

JBL Control 25AV 5.25″ Compact Indoor Outdoor Background Foreground Loudspeaker

Features

  • Components: 5.25 in Polypropylene coated woofer, .75 in Titanium coated horn loaded tweeter.
  • Built-in InvisiBall® mounting hardware*.
  • Weather resistant enclosure and transducers.
  • Readily paintable.
  • 90° x 90° high frequency horn.
  • Overload Protection Circuitry.
  • Sensitivity: 88 dB SPL, 1W, 1m
  • *Patents pending worldwide

Description

Compact Indoor/Outdoor Background/Foreground Loudspeaker

The Control® 25AV utilizes a deep cabinet, high power components and complex network to achieve extremely smooth high fidelity performance from a compact 2-way loudspeaker.

Features

  • Video shielded for use near video monitors.
  • Extremely smooth frequency response.
  • Stainless steel grill for harsh environments.
  • 60 W transformer for 70 V or 100 V lines, with 8 ohms thru.
  • SonicGuard™ overload protection.
  • 130 mm (5.25 in) polypropylene coated woofer, 10 mm (.75 in) titanium coated horn-loaded tweeter.
  • Includes InvisiBall® mounting hardware and sealed input panel cover.
  • Screw-down input terminals.
  • 100° x 100° high frequency horn.
SPECIFICATIONS
  • Frequency Range : 70 Hz – 23 kHz (-10 dB)
  • Power Capacity : 200 W Continuous Program Power; 100 W Continuous Pink Noise
  • Transformer Taps : 70V: 60 W, 30 W, 15 W, 7.5 W 100V: 60 W, 30 W, 15 W
  • Sensitivity : 87 dB SPL, 1 W @ 1 m (3.3 ft)
  • Midrange (±1.5 dB, typical) : 130 Hz – 14 kHz
  • Coverage Angle : 100° x 100°
  • Maximum SPL (1m) : 113 dB continuous peak pink noise 107 dB continuous average pink noise 103 dB continuous average music or speech
  • Directivity Factor (Q) : 4.9 dB, averaged 500 Hz to 4 kHz
  • Directivity Index (DI) : 6.9 dB, averaged 500 Hz to 4 kHz
  • Impedance : 8 ohms
  • Minimum Impedance : 6.7 ohms at 230 Hz
  • Crossover Network : Second Order Low Pass, Second Order High Pass, Complex Optimization for Maximally Flat Response
  • Drivers : LF: 130 mm (5.25 in) polypropylene-coated paper with WeatherEdge surround, 25 mm (1 in) voicecoil on kapton former | HF: 20 mm (.75 in) titanium coated PEI
  • Enclosure : High Impact polystyrene
  • Grille : Painted stainless steel, black or white to match cabinet, paintable
  • Overload Protection : Full-range power limiting to protect network and transducers. Internal fuse to protect during exceptional overload condition
  • Outdoor Capability : Exceeds Mil Spec 810 for humidity, salt spray, temperature & UV. IEC 529 IP-X4 splashproof rating
  • Input Connectors : Screw-down terminal strip, zinc-plated copper base, nickel plated metal screws/washers, accepts up to 9 mm outside 4 mm inside open lug (#6, #8 or #10), plus bare wire. (up to 12 AWG)
  • Safety Agency : Transformer is listed per UL1876
  • Colors : Black or white (-WH)
  • Rotation : Against wall on InvisiBall Base: 37° vertical 44° horizontal On bracket: 44° all directions
  • Dimensions (H x W x D) : 236 x 186 x 159 mm (9.3 x 7.4 x 6.3 in)
  • Net Weight (each) : 4.0 kg (9 lb)

Dimension Packaging Weight : 5.4 kg
