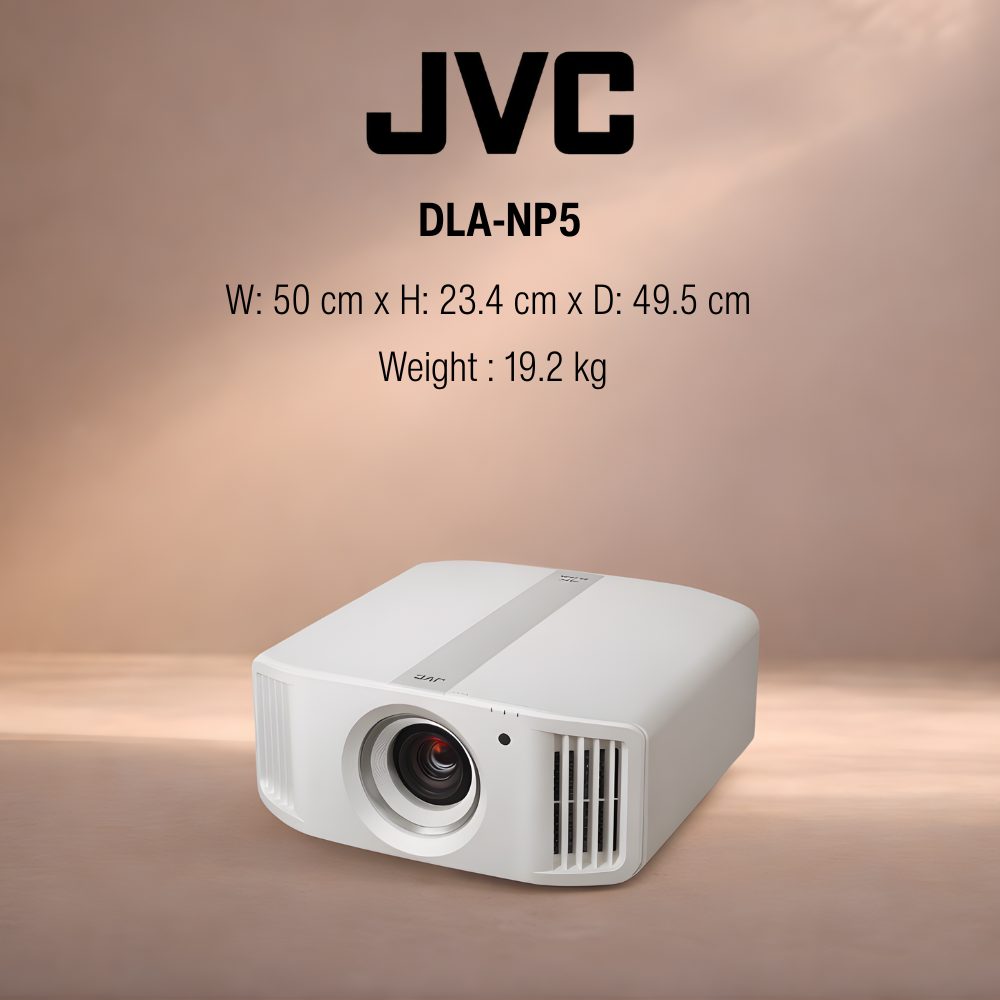

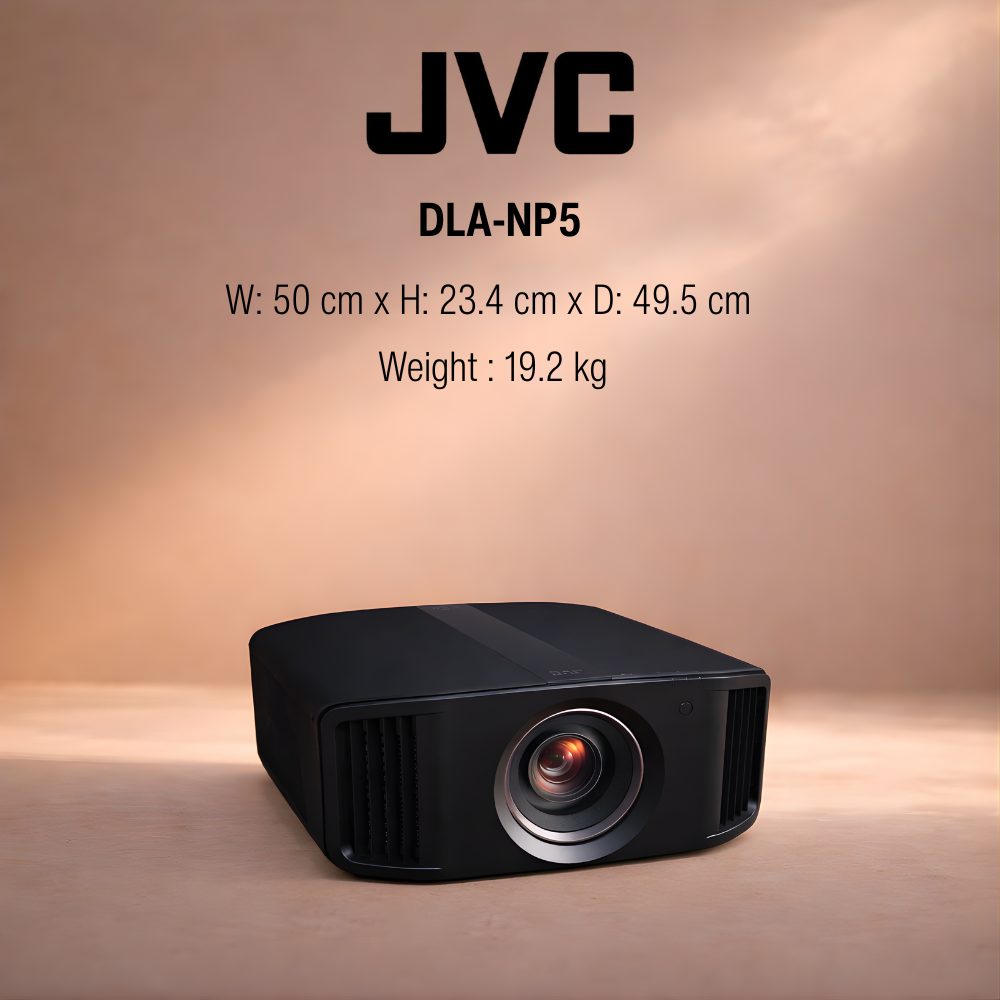

JVC DLA-NP5 D-ILA Projector


The JVC DLA-NP5 D-ILA, home theatre projector, features a 4K120p input to reproduce full 4K-resolution (4096 x 2160 pixels) images. 4K120p input also makes the projector ideal for gaming when combined with Low Latency mode. The projector is driven by three 0.69-inch native 4K D-ILA devices and a 17-element, 15-group all-glass lens with a 65 mm diameter to project high-resolution images to every corner of the screen with brightness as high as 1,900 lumens. Compatible with the latest HDR10+, HLG, and Frame Adapt HDR with a Theatre optimizer, the projector is designed to present industry-leading HDR performance.

Frame Adapt HDR Generation 2

The Frame Adapt HDR technology, which uses a proprietary algorithm to instantaneously analyze the maximum brightness of HDR10 content per frame and adjust the dynamic range in real time to the optimum range for video projection on projectors, has evolved into the second generation. As the culmination of the HDR image processing technology that we have cultivated up to now, we have completely reexamined the tone mapping algorithm in accordance with the scene and frame, and have achieved HDR images with higher definition and full of three-dimensional feeling by suppressing the whiteness especially in the high brightness area.

USB Back-up

USB backup function that can save and write all settings at once.

This function saves the settings on the main unit menu to a commercially available USB flash drive. Professional adjustments can be saved or backed up in advance to undo unintended adjustments by children or family members.


4K Native Resolution

Equipped with refined 0.69″ native 4K D-ILA device and newly developed digital driver LSI for native 4K resolution.

D-ILA projectors continue to evolve for the better. The latest three models feature an original native 0.69″ 4K D-ILA devices, which were first adopted on model DLA-Z1; this device has been improved with process refinements on planarization and reflection efficiency to achieve higher contrast and brightness. Additionally, a dedicated driver LSI was also enhanced to simultaneously drive each of the three (R/G/B) native 4K D-ILA devices at high-speed 120fps. As a result, precise and smooth image projection unique to 4K native can be achieved with the combination of a new device and new driver LSI.

HDR10+ Support allows a choice for two dynamic
tone mappings

When it comes to reproducing the rich video information of HDR content including the extended brightness range, BT.2020 wide colour gamut and 10-bit gradation, rely on one of the new D-ILA projectors. New models support all HDR formats including HDR10 for Blu-ray and streaming, HLG for broadcasting, and the latest HDR10+ signal format with dynamic metadata compatibility.

JVC projectors are compatible with the two dynamic tone mappings of HDR10+ and Frame Adapt HDR. HDR10+ contains the metadata of the producer’s intentions for each scene, Frame Adapt HDR instantly analyses the peak brightness in HDR10 content using an original algorithm. Ensuring you can watch any HDR content in optimal picture quality.

4K120p input ideal for Low Latency Mode

Because these projectors are equipped with 4K120p input, signal latency is infinitesimal, making it effective when displaying high frame-rate gaming content on large screens. What’s more, Low Latency Mode reduces delay in displaying PC signals and games, and improves response to the users’ rapid operations.


  • New 0.69 inch 4K D-ILA (4096 x 2160) device x 3
  • Exceptionally bright 1,900 lm means bright, high-resolution images
  • Deep Blacks are realized by a High Native Contrast Ratio of 40,000:1 (Dynamic Contrast Ratio 400,000:1)
  • 17-element, 15-group all-glass 65mm diameter high-quality lens
  • Compatible with the two dynamic tone mappings of HDR10+ content and Frame Adapt HDR with Theatre Optimizer
  • As a part the Frame Adapt HDR, the projector offers improved gamma processing accuracy from 12- to 18-bit equivalent to reproduce smoother and finer gradation
  • Theater Optimizer function, which works in Frame Adapt HDR mode, offers optimum HDR images by analyzing usage environments using the screen size and gain information and intelligently adjusts tone mapping.
  • The projector automatically reproduces HDR10+ content based on the metadata of the producers intentions for each scene.
  • For easy reproduction, the projector switches automatically to HDR picture mode when HDR10 signals are received
  • Display the MaxCLL and MaxFALL mastering data available for HDR content on some UHD Blu-ray discs
  • High-definition display at 4K resolution (4096 x 2160)
  • 2x HDMI (48 Gbps, HDCP 2.3) inputs, supporting 4K120P input signals
  • Compatible with Hybrid Log-Gamma that is expected to be used widely in future broadcasting
  • 10 Installation Modes centrally manages various settings related to installation to enjoy video best suited for each environment
  • Eight settings of Installation Mode include Lens Control, Pixel Adjustment, Mask, Anamorphic on or off, Screen Adjust, Installation Style, Keystone, and Aspect; stored installation modes for various environments can be called up.
  • Renewed Clear Motion Drive supporting 4K60P (4:4:4) signal improves moving images more than ever
  • Motion Enhance technology reduces residual images and blurring that are often found in fast-moving images by optimally controlling the drive of D-ILA devices
  • Low Latency Mode suppresses display delay for faster response when receiving signals from PC and game consoles
  • Colour Management System with 6-axis Matri
  • Auto-Calibration Function using an optical sensor is capable of optimizing essential elements in the image, including colour balance, gamma characteristics, colour space and colour tracking
  • ISF C3 (Certified Calibration Controls) mode to reproduce excellent picture quality optimized for specific environments.
  • Wireless transmission options for 3D viewing: RF (radio frequency) system transmission with PK-AG3 3D Glasses for 100H continuous operation and PK-EM2 3D Synchro Emitter
  • Clear Motion Drive supporting 4K60P (4:4:4) signal improves moving images more than ever

Specification DLA-NP5 – D-ILA Projector

Chip Type  :- 0.69-inch 4K D-ILA device

Native Resolution  :-  3

Display Resolution :- 4096 x 2160

Type Light Source  :- Lamp

Lamp Power :-  265 watt

Life Time (Low Mode) :-  265 watt

Picture  Brightness :-  1900 lm

Picture Dynamic Contrast  :- 400000 : 1

Picture Native Contrast  :-  40000 : 1

Manual Light Power control,  Dynamic Apterture ,Manual Aperture   :-    Yes

Range :-  -15 (stops down) to 0 (opens up)

Color Bit Depth :-

HDR10    Yes
HDR10+ [2]   Yes
Frame Adapt HDR [3]  Yes
Theater Optimizer [4]  Yes
HLG    Yes
Auto Tone Mapping    Yes
Mastering Info Display  Yes
Info data
MaxCLL and MaxFALL mastering data
HDR Picture Modes  : BT.709 / BT.2020 / DCI / HDR
2 x
65 mm
17-element, 15-group in full aluminium lens barrel.
Lens Shift
Range Horizontal
± 34 %
Range Vertical
± 80 %
Motorized Zoom
Motorized Shift
Motorized Focus
Projection Display size (diagonal)
60 – 200 inch
Memory Function
Number of user presets
Lens Cover
HDMI [5]
Number of Inputs
Data Rate
48 Gbps
HDCP Version
4K120p signal input
4K60P signal input
Video Signal range
480p, 576p, 720p 60/50, 1080i 60/ 50, 1080p 120/ 100/ 60/ 50/ 30/ 25/ 24, 3840 x 2160p 120/ 100/ 60/ 50/ 30/ 25/ 24, 4096 x 2160p 120/ 100/ 60/ 50/ 30/ 25/ 24
PC Signal range
Input Level Adjustment
Auto / Standard (16-235) / Enhanced (0-255) / Super White (16-255)
Color Space Range
Auto/ YCbCr444 / YCbCr422 / RGB
EDID Modes
A, B and C
Trigger out
Mini-Jack (3,5mm)
DC 12V / 100mA
3D Synchro
Mini DIN 3-pin
D-sub 9-pin
USB (Type A) for firmware update.
3D Capability
3D Versions
Frame Packing, Side-by-Side, Top & Bottom
Frame Packing Resolutions
720p 60/50, 1080p 24
Side-by-Side Resolutions
720p 60/50, 1080p 60/50/24, 1080i 60/50
Top & Bottom Resolution
720p 60/50, 1080p/24
3D Emitter (Optional)
Yes, PK-EM2
3D Glasses (Optional)
Yes, PK-AG3
Picture Settings
Picture Modes
Natural, Cinema, Film, HDR10+, Frame Adapt HDR, HDR10, HLG, Pan_PQ, 6 User modes
Color Temperatures
Xenon 1, Xenon 2, 5500K, 6500K, 7500K, 9300K, High Bright, HDR10+, HDR10, HLG, Custom 1, Custom 2
Gamma Processing Depth   :-   18 bit
Gamma Adjust   :-  HDR (Auto), HDR(PQ), HDR(HLG), 2.2, 2.4, 2.6, Cinema 1, Cinema 2, Film 1, Film 2, Pana_PQ, 3 Custom modes
Color Management  :-   6-Axis adjustable CMS
MPC     :-     Yes
Filmmaker Mode [6]  Yes
Low Latency Mode      Yes
Clear Motion Drive     Yes
Motion Enhance     Yes
Auto Calibration     Yes
Software  :-    JVC Autocalibration software via web download
Installation Mode   :-   Yes
Number of modes    :-   10
Included settings  :-  Lens Control, Pixel Adjustment, Mask, Anamorphic on or off, Screen Adjust, Installation Style, Keystone, and Aspect
Anamorphic Modes   :-   4 Modes (A, B, C, D)
Control4 SDDP  :-   Yes
Power & Environment
Power Requirement   :-   AC100-240V, 50/60Hz
Power Consumption    :-    420W
Projector in Use  :-   420W
Standby   :-   Normal: 1.5W, Eco-mode: 0.3W
Network Standby    :-   1.3 W (LAN), 1.0 W (RS-232C), 1.3 W (LAN and RS-232C)
Switchover time   :-  20 min. (To standby or networked standby; default)
Fan Noise   :=  24 dB
Eco Mode   :-   Yes
Standby Timer  :-   Yes
Operating Temperature    :-   5°C to 35°C
Operating Humidity  :-   20% to 80%
Installation Angle   :-   Horizontal +/- 5 degree / Vertical +/- 10 degree

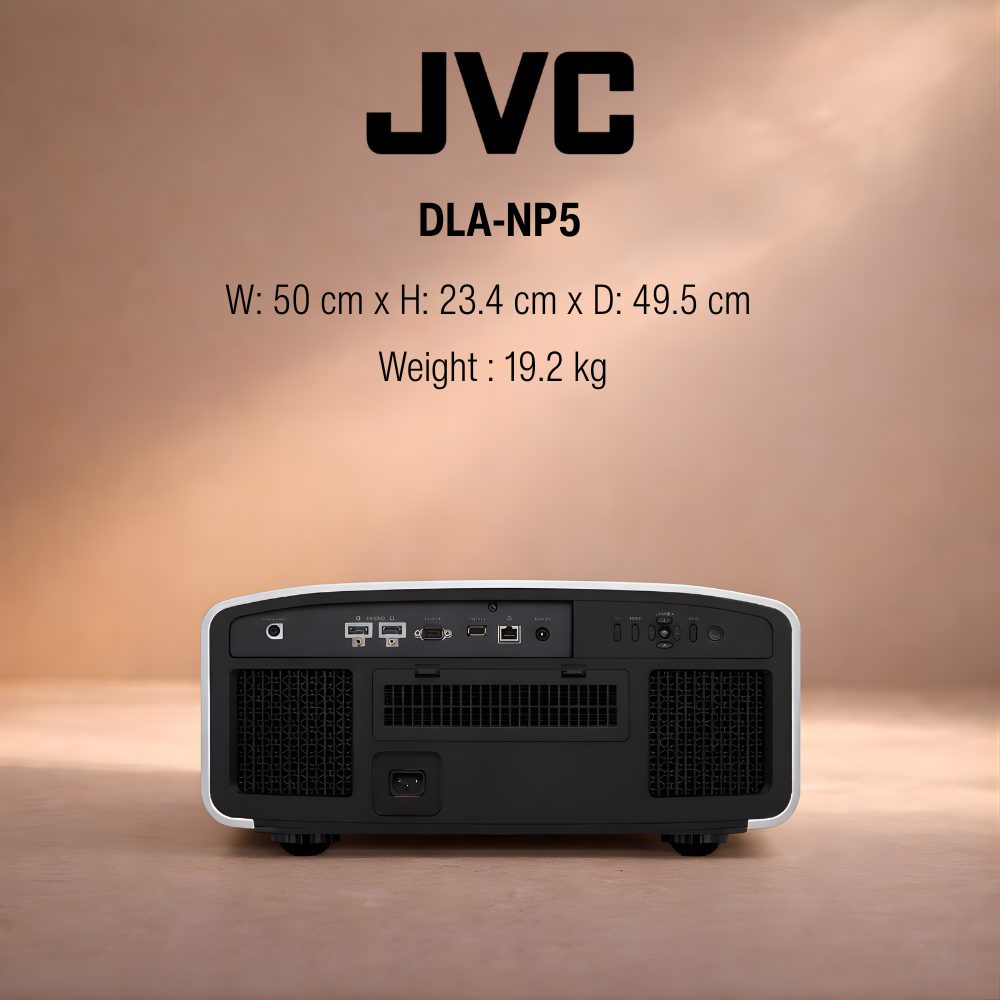

Dimensions & Weight
Product Dimensions (WxHxD)     500 x 234 x 495 (mm)
Product Weight     19.2 Kg
Package Dimensions (WxHxD)      :-    640 x 415 x 665 (mm)
Package Weight     24.7 Kg
