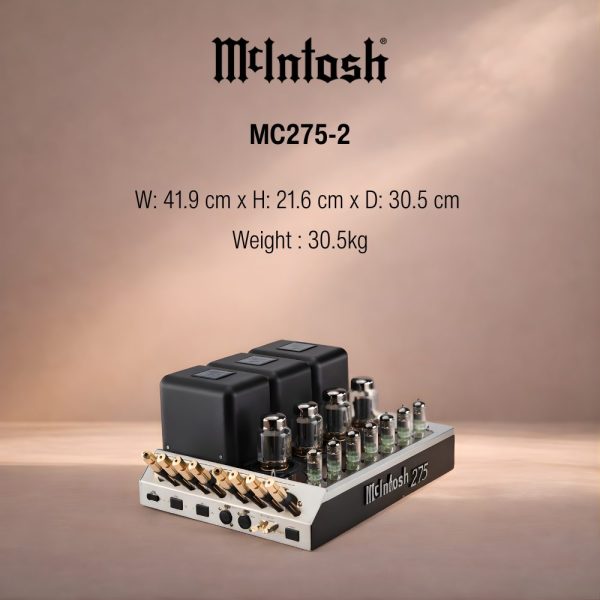

McIntosh MC275 2-Channel Vacuum Tube Amplifier

  • 75 Watts x 2 channels
  • Vacuum Tube Design

Description

Upon its initial release in 1961, the MC275 Vacuum Tube Amplifier became an instant favorite due to its ability to drive the power-hungry speakers of that time period with great power at low distortion levels. However, as transistors emerged and vacuum tubes became ‘old technology,’ the MC275 was discontinued in 1971. Thankfully, that is not where the story of the MC275 ends.

“Good audio engineering is timeless.” – Stereophile

It came back into production as a special commemoration edition in 1993 to posthumously honor McIntosh co-founder and longtime president Gordon Gow. The reincarnated MC275 received incredibly high acclaim and earned its spot back in the product lineup. The overall storyline behind the MC275 and its history with McIntosh is exceptionally rich and it has been the driving force behind countless home audio systems for decades. It is hard to imagine McIntosh without the MC275.

  • 75 Watts x 2 channels or 150 Watts x 1 channel
  • Unity Coupled Circuit Output Transformers
  • (4) KT88, (4) 12AT7 and (3) 12AX7A vacuum tubes
  • One of the most iconic amplifiers ever made by any brand

ELECTRONIC SPECIFICATIONS

  • Power Output per Channel  :-  75W @ 4, 8 or 16 Ohms
  • Number of Channels   :-  2
  • Total Harmonic Distortion 0.5% maximum harmonic distortion at any power level from 250 milliwatts to rated power, 20Hz to 20,000Hz
    (≤ 0.25% harmonic distortion at 1kHz)
  • S/N below rated output  :-  105dB
  • Dynamic Headroom  :-  1.2dB
  • Damping Factor  :-  >22
  • Rated Power Band  :-  20Hz to 20kHz
  • Frequency Response
    +0, -0.5dB from 20Hz to 20,000Hz
    +0, -3.0dB from 10Hz to 100,000Hz

CONTROL

  • Remote Power Control  :-  Yes, input and output
  • Multi-Channel DB25 Cable   :-  N/A

GENERAL SPECIFICATIONS

  • Circuit Configuration :-  Unity Coupled
  • Circuit Design  :-  Vacuum Tube
  • Mono Bridge  :-  Yes
  • Mono Parallel  :-  Yes, 150W @ 2, 4 or 8 Ohms
  • Output Type  :-  Unity Coupled Output Transformer
  • Meters  :- No
  • Meter Light Switch  :-  Small signal tubes LEDs controlled by McIntosh preamp
  • Balanced Input  :-  Yes
  • Front Panel :-  N/A
  • Illumination  :-  Small Signal Tubes, LED
  • Chassis Style  :- Polished Stainless Steel

CONNECTIVITY

  • Speaker Binding Post Type  Patented Solid Cinch™ Speaker Binding Posts

WEIGHTS & DIMENSIONS

  • Dimensions (W x H x D)  :-  21-1/2″ (54.6cm) (including cables) x 8-1/2″ (21.6cm) (including feet) x 12″ (30.5cm)
  • Weight  :-  67 lbs (30.5 kg)
  • Shipping Weight  :-  75 lbs (34.1 kg)
