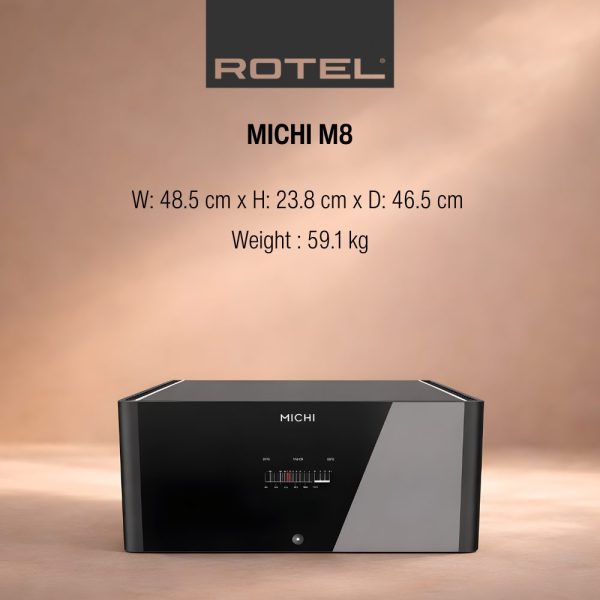

Rotel M8 Monoblock Power amplifiers

The Michi M8 Monoblock Amplifier no-compromise Class AB amplifier delivers 1,080 watts into 8 ohms and an astounding 1,800 watts into 4 ohm loads.  The design architecture ensures a smooth, accurate and relaxed delivery of the audio to even the most demanding loudspeakers while maintaining critical energy, rhythm and timing.

     1080 Watts of   robust power

           Class AB amplifier design

Patented British  bulk storage capacitors

Massive power supply using Dual Toroidal Transformers

Balanced XLR inputs

DIMENSIONS (W × H × D)
485 × 238 × 465mm
19″ × 9.375″ × 18.25″

FRONT PANEL HEIGHT220mm (8.625″)

POWER REQUIREMENTS120V, 60Hz POWER CONSUMPTION1200W

STANDBY POWER CONSUMPTIONNormal: <0.5WNetwork Wakeup: <2W

NET WEIGHT59.1kg (130.3lbs.)

BTU RATING (4Ω, 1/8th power)3200 BTU/h

CONTINUOUS POWER OUTPUT
1080W/Ch (8Ω)
1800W/Ch (4Ω)

TOTAL HARMONIC DISTORTION (THD)<0.018%

FREQUENCY RESPONSE20Hz – 20kHz (+0dB, -0.15dB)10Hz – 100kHz (+0dB, -0.5dB)

S/N RATIO (IHF “A” Weighted)
120dB

GAINUnbalanced (RCA): 34dBBalanced (XLR): 30dB
