Description

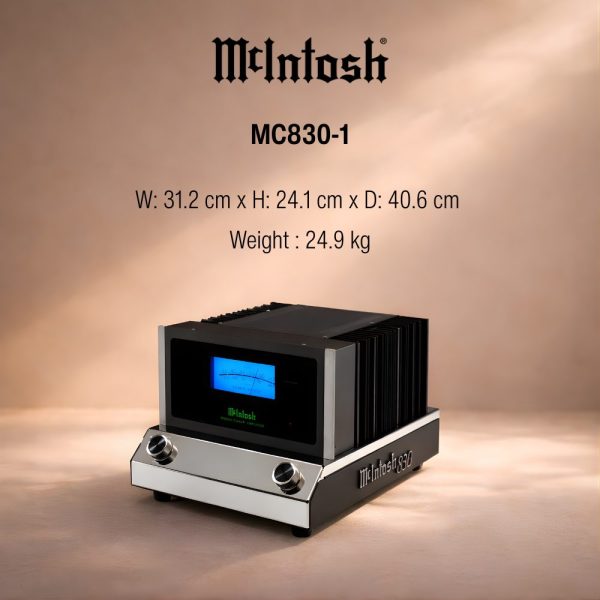

The MC830 is a 1-Channel Solid State Amplifier that features an open chassis industrial design similar to our popular MC275 Vacuum Tube Amplifier, and MA252 and MA352 Integrated Amplifiers. A pair of MC830s, when combined with a preamplifier (such as the matching C8 Vacuum Tube Preamplifier), source components like a turntable, CD player (see the matching MCD85 SACD/CD Player) or streaming music player, and a pair of speakers, can deliver a true-to-life home audio experience.

• 300 Watts into 8 Ohms
• 480 Watts into 4 Ohms
• Power Guard, Sentry Monitor, Monogrammed Heatsinks, Solid Cinch speaker binding posts

ELECTRONIC SPECIFICATIONS

• Power Output per Channel

  300 Watts into 8 Ohms
  480 Watts into 4 Ohms

• Number of Channels

  1

• Total Harmonic Distortion

  0.005%

• S/N below rated output

  Balanced: 120dB
  Unbalanced: 118dB

• Dynamic Headroom

  2dB

• Damping Factor

  >100 Wideband

• Rated Power Band

  20Hz to 20kHz

• Frequency Response

  +0, -0.25dB from 20Hz to 20,000Hz
  +0, -3.0dB from 10Hz to 100,000Hz

CONTROL

• Remote Power Control

  Yes

• Multi-Channel DB25 Cable

  N/A

CONNECTIVITY

• Speaker Binding Post Type

  Patented Solid Cinch™ Speaker Binding Posts

GENERAL SPECIFICATIONS

• Circuit Configuration

  Push-Pull Complementary

• Circuit Design

  Solid State

• Mono Bridge

  N/A

• Mono Parallel

  N/A

• Output Type

  Direct Coupled

• Meters

  Yes

• Meter Light Switch

  Yes

• Balanced Input

  1

• Front Panel

  Glass

• Illumination

  Direct LED

• Chassis Style

  Polished Stainless Steel

WEIGHTS & DIMENSIONS

• Dimensions (W x H x D)

  12-9/32″ (31.2cm) x 9-1/2″ (24.1cm) x 16″ (40.6cm)

• Weight

  48 lbs (21.8 kg)

• Shipping Weight

  55 lbs (24.9 kg)
