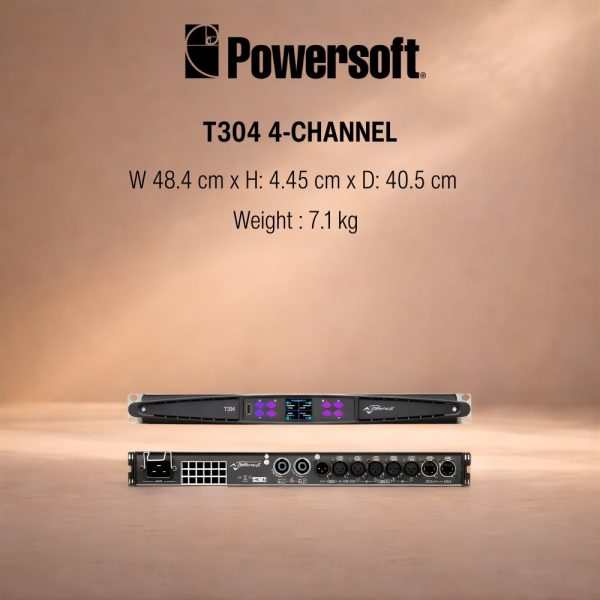

Powersoft T304 4-Channel Power Amplifier

Features:

  • The loudspeaker processing sets a new benchmark for cost-effective amplification for small and medium-sized systems and stage monitors. The T Series can be controlled and configured in different ways.
  • Full control with a PC running Armonía.
  • Control from the front panel display for features like preset recall (also per output), gain, delay, mute. This makes it very easy to use for small systems in a rental company. The display also shows the available headroom with easy to read numbers in dB as well as other status monitoring parameters.
  • Web app. Use any device with a browser (e.g. a tablet) and access the amplifier via an external WiFi access point for easy control.
  • Group controllable advanced EQ with raised cosine filters
  • Large preset library
  • Preset compatibility with X Series
  • Very long FIR filters (42.6 ms)
  • Control and monitoring through ArmoníaPlus

Description

Overview

The T Series is a very flexible and cost-effective amplifier platform with loudspeaker processor.

All models deliver the same high peak voltage allowing high SPL with single 8/16 ohm cabinets on all models. The high voltage is also good for sharing power between the channels for applications such as bi-amped loudspeakers or subwoofers with passive tops.

The amplifiers feature input via Dante, AES3 and analog. The Dante and AES3 solutions are optimized for daisy-chained distribution of 2-channel audio for distribution to many amplifiers without the need for external switches/repeaters/ splitters. A simple Dante system has a daisy chain with the mixing console at one end, a WiFi access point at the other end and the amplifiers in-between.

SPECIFICATIONS:



GENERAL

Output power per channel
Output power per channel750W @ 2 Ω750 W @ 4 Ω750 W @ 8 Ω
Bridge mode1500 W @ 4 Ω1500 W @ 8 Ω
Max output voltage / current
Max unclipped output voltage @8 Ω145 Vpeak
Current50 Apeak
AC MAIN POWER
Power supplyUniversal, regulated switch mode with PFC (Power Factor Correction)
Nominal power requirement100-240 V ±10%, 50-60 Hz
Operating voltage90 V – 264 V
Power consumption/ Current draw
1/8 of max output power @ 4 Ω120 V: 537 W – 4.7 A230 V: 525 W – 2.7 A

THERMAL

Thermal dissipation
1/8 of max output power @ 4 Ω120 V: 537 BTU/h -135.3 kcal/h230 V: 512 BTU/h -129.0 kcal/h
