Description

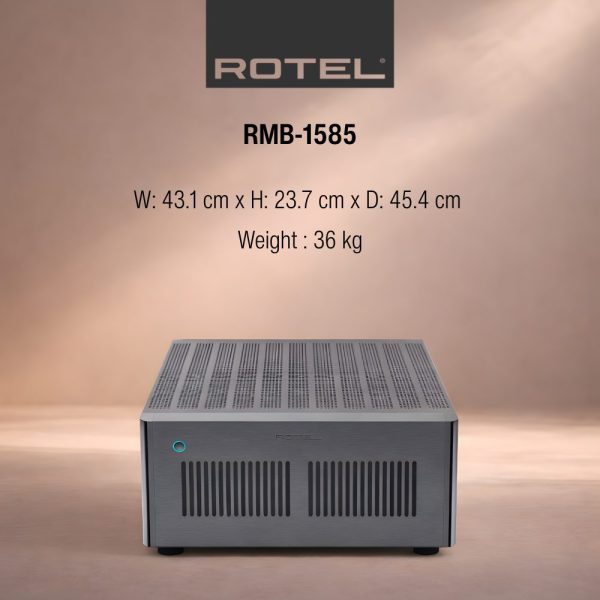

The RMB-1585, Rotel’s new flagship theater amplifier, provides both the massive power and sonic sophistication required by the finest home theater systems. With five channels, each capable of producing 200 continuous Watts each into 8 ohm loads (a full kilowatt of output power!), the RMB-1585 masters any A/V system regardless of speaker load or room size.

But it isn’t just pure output power that distinguishes the RMB-1585. It’s the ability to reproduce both the dynamics of a Hollywood blockbuster and the musical nuances of acoustic instruments that sets it apart. Where does this balance come from? It’s a direct result of Rotel’s celebrated Balanced Design Concept in which circuit topology and parts selection meld in the pursuit of sonic excellence.

DIMENSIONS (W × H × D): 431 × 237 × 454mm
17″ × 9.4″ × 17.9″

FRONT PANEL HEIGHT: 5U / 221mm (8.75″)

POWER REQUIREMENTS: 120V, 60Hz

POWER CONSUMPTION: 1100W

STANDBY POWER CONSUMPTION: 0.5W

NET WEIGHT: 36kg (79lbs.)

BTU RATING (4Ω, 1/8th power)2372 BTU/h

CONTINUOUS POWER OUTPUT: 200W/Ch (All channels driven, 8Ω)

TOTAL HARMONIC DISTORTION (THD): (20Hz–20kHz) <0.03%

FREQUENCY RESPONSE: 10Hz – 100kHz +0.5, -3dB

S/N RATIO (IHF “A” Weighted): 116dB
