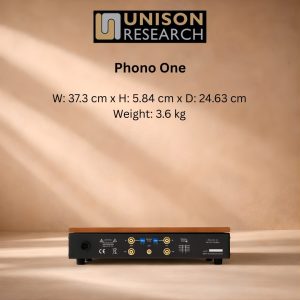

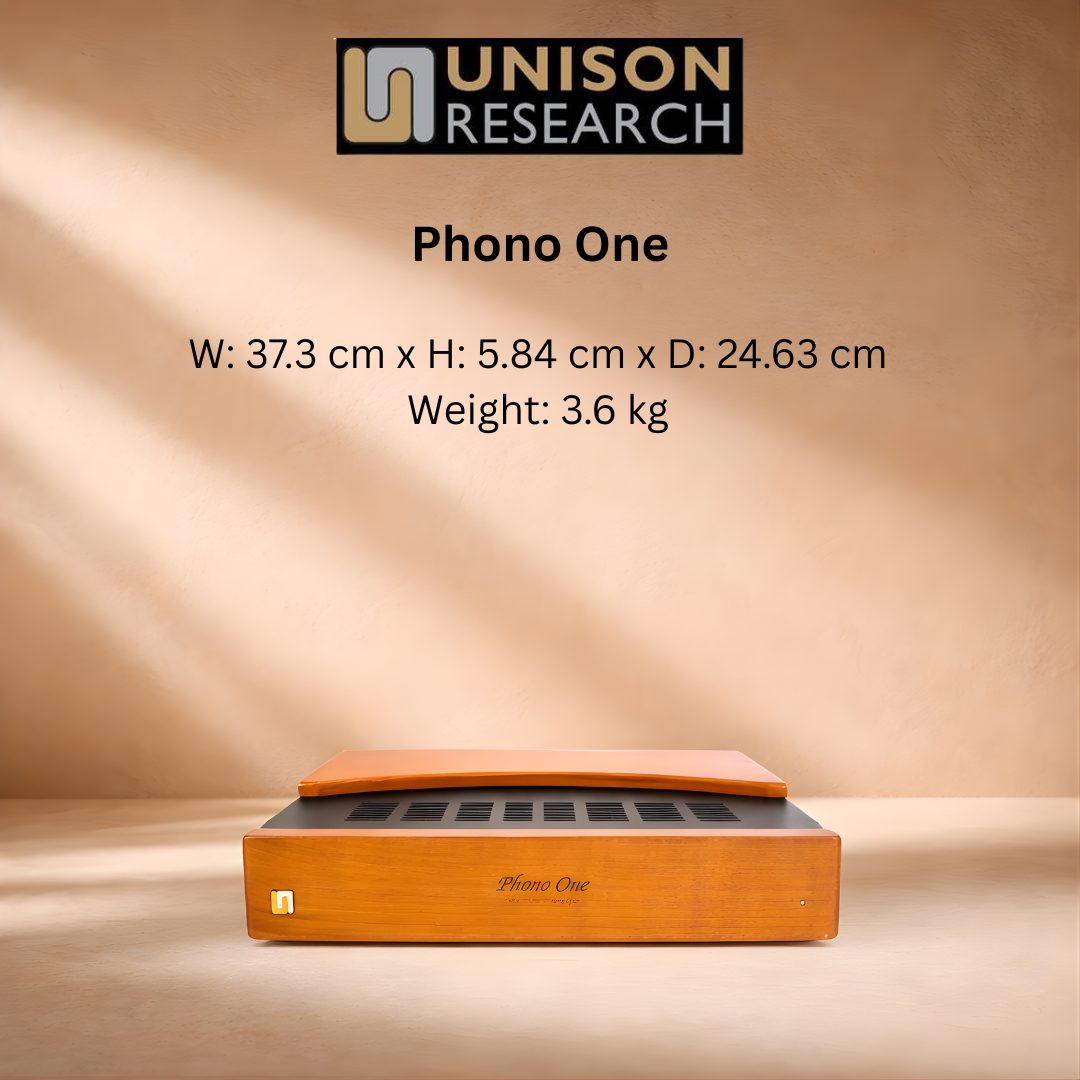

Unison Research Phono one
- Description
Description
The original Phono One was one of the most popular Unison Research products in our history. Its production was discontinued a few years ago, but the requests to bring it back were overwhelming. That’s why we’ve introduced its return, with a new and improved design. The aesthetics of the Phono One is unchanged, however, maintaining the classic and timeless look of the original version. The Phono One, from its beginning, was designed for those who require a phono preamplifier that offers the highest possible sound quality.
The Unison Research Phono One is a high-end, Italian-made tube phono preamplifier designed for both Moving Magnet (MM) and Moving Coil (MC) cartridges. It uses 5 x ECC83 (12AX7) tubes in a Pure Class A configuration to deliver a rich, detailed, and expansive soundstage. It features flexible impedance/capacitance loading and excellent signal-to-noise performance.
Key Features and Performance
- Tube Circuitry: Features five ECC83/12AX7 valves for a warm, harmonically rich, and “liquid” sound.
- Versatile Loading: Supports both MM and MC cartridges with adjustable resistive and capacitive loading to perfectly match various cartridges.
- Build Quality: Designed with hand-soldered wiring, a dedicated external power supply, and elastic suspension for the amplifier board to minimize microphonic noise.
- Sound Profile: Delivers a “no-compromise” sound characterized by high natural detail, musical clarity, and a quiet background.
- Type: Stereo Phono Valve preamplifier
- Class: pure A
- RIAA : passive +/- 0.1 dB (20 Hz / 20 KHz)
- Output Impedance: 800 ohm.
- Outputs: 1 x line
- Gain : 54 dB
- Total Harmonic Distortion (THD): 0.1 % @ 1V output
- Signal to Noise Ratio (S/N): – 80 dB
- Inputs: 1 per fonorivalatore MM o MC High Output (>2mV)
- Input Impedance: 47 Kohm – 100 – 50 – 22 ohm / 100 – 200 – 320 – 420 pF ( modifiable )
- Feedback factor: 0 dB.
- Valves: 5 x ECC83 / 12AX7
- Power supply: external
