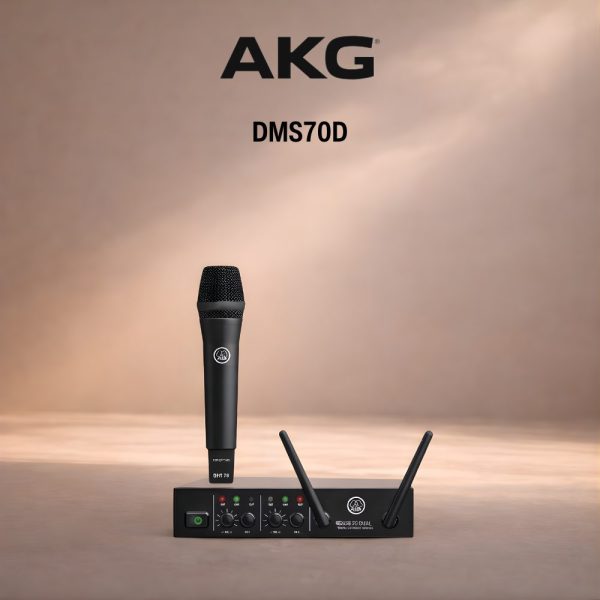

AKG DMS70 D Vocal Set Digital Wireless System with Handheld Transmitter
The DMS70 D Vocal Set Digital Wireless System with Handheld Transmitter by AKG is a professional digital wireless system that features the DSR70 Dual Receiver and the DHT70 Perception handheld transmitter. The system uses the 2.4GHz range for worldwide license-free operation
2-Channel Receiver and Mic Transmitter
24bit 48 kHz Digital Transmission
AES 128 Bit Encryption for Security
Dynamic Frequency Selection
- Description
Description
Receiver
Receiver Type DSR 70 Dual digital diversity receiver
Carrier Frequency Range Dynamic frequency selection (DFS) in 2.4 GHz ISM band (2.404 – 2.470 GHz)
Audio Bandwidth 20 Hz to 20 kHz (± 3 dB)
Dynamic Range typ. 120 dB(A)
THD
Gain 0 – 1.4 Vrms
Operating Range Indoor 30m (LOS)
Outdoor 30m (LOS)
Modulation Orthogonal Frequency-Division Multiplexing (OFDM)
Encryption 128 Bit AES
RF Output Power Max. 100mW
Audio Output 2x 1/4″ jack
Power Requirement 12 V DC, 0.5 A
Dimensions 7.9 x 1.8 x 4.9″ (202 × 45 × 125 mm)
Weight 1.06 lb (480 g)
Transmitter
Transmitter Type DHT70 Perception handheld digital transmitter
Carrier Frequency Range Dynamic frequency selection (DFS) in 2,4 GHz ISM band (2,404 – 2,470 GHz
Audio Bandwidth 70 Hz – 16 kHz (± 3 dB)
Dynamic Range typ. 120 dB(A)
THD
Operating Range Indoor 30m (LOS)
Outdoor 30m (LOS)
Modulation Orthogonal Frequency-Division Multiplexing (OFDM)
Bandwidth 3 x 16 MHz
Diversity Digital controlled antenna diversity
RF Output Power max. 100mW
Capsule Standard supercardioid capsule
Maximum SPL
Dimensions 9.1 x 2.0″ (233 × 51 mm)
Weight 9.2 oz (260 g)
