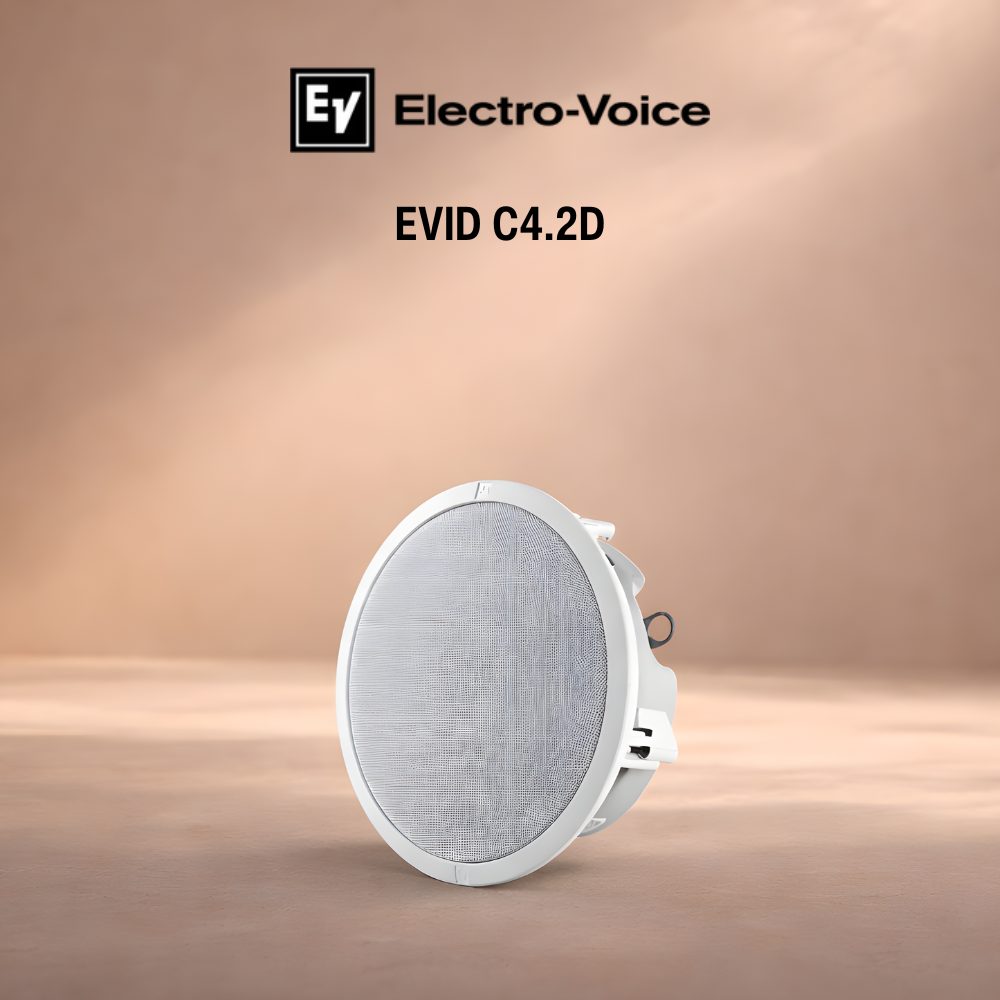

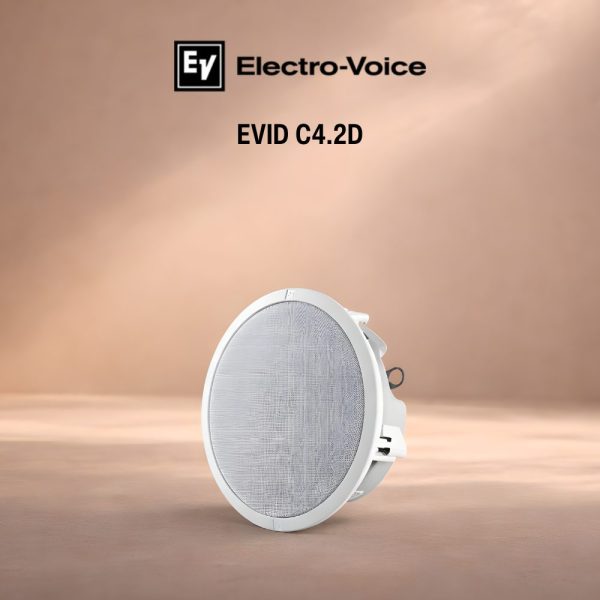

ELECTRO-VOICE EVID C4.2D ( pair) in-ceiling-speaker
- Description
- Specification
Description
80W / 8Ω – 100V (3,75/7,5/15/30W), 130°
Key Features:
• 4” coaxial two-way
• Waveguide coupled Ti tweeter
• Full bandwidth overload protection
• Front baffl e wattage tap adjustment
• Integrated low loss matching transformer allows
for either 70v/100v or 8Ω operation
• Includes tile bridge and mounting ring for easy
installation
• Integrated ported enclosure for extended bass
response
Specifications
| Frequency response | 60 Hz – 20 kHz |
| Sensitivity (SPL 1 W/1 m) | 86 dB |
| Coverage pattern | 130° conical |
| Power handling (@ 8Ω) | 50 W (with overload protection) |
Specifications | |
| Rated Impedance | 8 Ω |
| Recommended High-Pass frequency | 65 Hz |
| Input configuration | 8Ω; 70V/100V |
| 70V/100V power taps | 1.8 (70V only)/3.7/7.5/15/30 W |
| LF transducer | 4 in (100 mm) high-compliance driver (weatherized cone) |
| HF transducer | 0.75 in (19 mm) Ti-coated dome |
| Mounting system | Integrated 4-point toggle anchors |
| Acoustic design | Ported cabinet, two-way design, internally damped, w/passive crossover |
| Cabinet construction | Steel enclosure and UL94V-0 rated baffle and bezel |
| Grille construction | Powder-coated steel |
| Color | White (paintable) |
| Cutout dimensions (diam.) | 10.6 in (269 mm) |
| Dimensions (depth x diam.) | 3.7 in x 11.8 in (94 mm x 300 mm) |
| Net weight | 7.35 lb (3.32 kg) |
| Included accessories | Tile bridge, mounting ring |
| Safety agency ratings | UL 1480 Safe for use in air handling spaces per UL 2043 |
