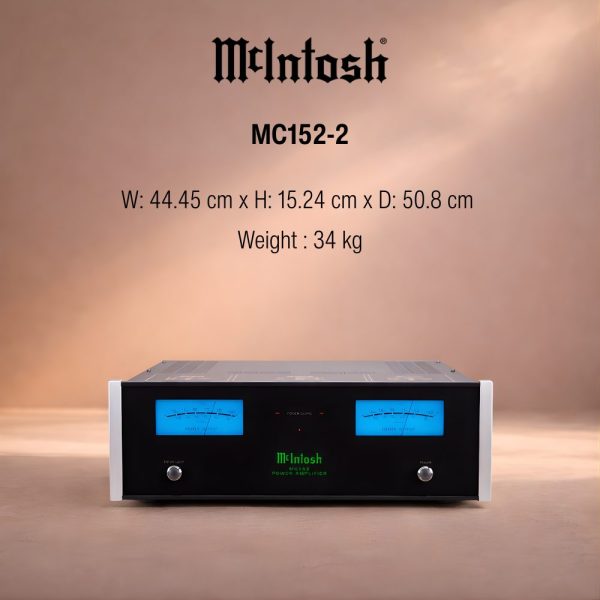

Mcintosh MC152 2-Channel Solid State Amplifier

  • 150 Watts x 2 Channels
  • Space saving 6″ tall chassis

Description

The McIntosh MC152 stereo amplifier delivers 150 Watts of power into two channels at 2, 4 or 8 Ohms. Both balanced and unbalanced inputs are included for connecting your preamplifier. Our smallest current model solid state stereo amplifier in terms of power output, the MC152 is perfect for modest sized systems where higher power output levels are not needed or in home theaters to power surround channels.

  • 150 Watts x 2 Channels
  • Space saving 6″ tall chassis

ELECTRONIC SPECIFICATIONS

  • Power Output per Channel
    150W @ 2, 4 or 8 Ohms
  • Number of Channels
    2
  • Total Harmonic Distortion
    0.005%
  • S/N below rated output
    118dB Balanced
    115dB Unbalanced
  • Dynamic Headroom
    2.0dB
  • Damping Factor
    >40 Wideband
  • Rated Power Band
    20Hz to 20kHz
  • Frequency Response
    +0, -0.25dB from 20Hz to 20,000Hz
    +0, -3.0dB from 10Hz to 100,000Hz

CONTROL

  • Remote Power Control
    Yes
  • Multi-Channel DB25 Cable
    No

GENERAL SPECIFICATIONS

  • Circuit Configuration
    Push-Pull Complementary
  • Circuit Design
    Solid State
  • Mono Bridge
    No
  • Mono Parallel
    No
  • Output Type
    Autoformer™
  • Meters
    Yes
  • Meter Light Switch
    Yes
  • Balanced Input
    1 Stereo
  • Front Panel
    Glass
  • Illumination
    LED Fiber Optic
  • Chassis Style
    Enclosed Steel

CONNECTIVITY

  • Speaker Binding Post Type
    Yes, New Style McIntosh

WEIGHTS & DIMENSIONS

  • Dimensions (W x H x D)
    17-1/2″ (44.45cm) x 6″ (15.24cm) (including feet) x 21″ (50.8cm) (including front panel and cables)
  • Weight
    75 lbs (34 kg)
  • Shipping Weight
    85 lbs (38.6 kg)
