Description

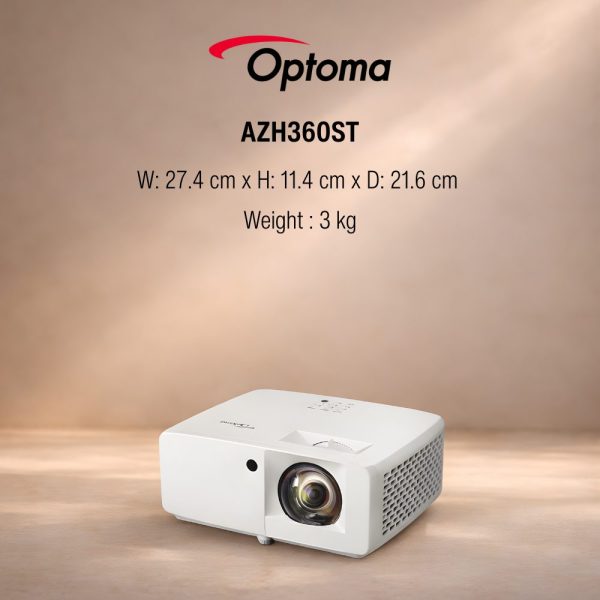

Optoma AZH360ST Ultra-Compact High Brightness FHD 1080p Laser Projector

Bright FHD 1080p DuraCore laser projector
3,600 lumens and IP6X certified
Small form factor & short throw lens for easy installation
360-degree and portrait projection
DuraCore laser technology
30,000 hours maintenance-free laser light source
Built with the environment in mind
Long laser life span, incorporating Post consumer recycled material
24 Months Warranty For Main Body
10000 Hour / 1 Year Warranty For Lamp

Display/image
Display technology DLP™
Resolution 1080p Full HD (1920×1080)
Brightness 3,600 lumens
Contrast ratio 300,000:1
Native aspect ratio 16:9
Aspect ratio – compatible 4:3,16:9,16:10
Keystone correction – horizontal +/-30°
Keystone correction – vertical +/-30°
Displayable colours (millions) 1073.4
Horizontal scan rate 15 ~ 140Khz
Vertical scan rate 24 ~ 120Hz
Uniformity 75%
Screen size 0.76m ~ 7.62m (30″ ~ 300″) diagonal

Lamp info
Light source type Laser
LASER life 30,000 hours

Optical
Throw ratio 0.496:1
Projection distance 0.4m – 3.2m
Focal length 7.51
Native offset 116%

Connectivity
Connections
Inputs 2 x HDMI 2.0
Outputs 1 x Audio 3.5mm, 1 x USB-A power 1.5A
Control 1 x RS232

General
Noise level (typical) 27dB
PC compatibility FHD, UXGA, SXGA, WXGA, HD, XGA, SVGA, VGA, Mac
2D compatibility NTSC M/J, 3.58MHz, 4.43MHz PAL B/D/G/H/I/M/N, 4,43MHz SECAM B/D/G/K/K1/L, 4.25/4.4MHz 480i/p, 576i/p, 720p(50/60Hz), 1080i(50/60Hz), 1080p(50/60Hz)
3D compatibility Yes (DLP 3D; PC frame sequential 120Hz 3D, Blu-ray DVD 3D) 720p50 / 60
3D 3D ready
Security Security bar, Kensington Lock, Password protected interface
IP rating IP6X
OSD / display languages 25 languages: Arabic, Czech, Danish, Dutch, English, Farsi, Finnish, French, German, Greek, Hungarian, Indonesian, Italian, Japanese, Norwegian, Polish, Portuguese, Romanian, Russian, Chinese (simplified), Spanish, Swedish, Chinese (traditional), Turkish, Vietnamese
24/7 operation Yes
360° operation Yes
Operating conditions 0°C ~ 40°C, Max. Humidity 80%, Max. Altitude 2,500m
Speaker count 1
Watts per speaker 15W
In the box
AC power cord
Remote control
Basic user manual

Power
Power supply DC input 19V via a 180W power adapter (AC input 100~240V, 50/60 Hz to DC 19V)
Power consumption (standby) <0.5W
Power consumption (min) 89W
Power consumption (max) 140W

Weight and dimensions
Dimensions (W x D x H) 274 x 216 x 114
Gross weight 4.2 kg
Net weight 3 kg
